Whirlpool 3CA2100XMW1 Parts List

Popular Searches: (Click to search)    capacitor  foot  hinge  paint  rear  screw  start  use  washer  0  bearing  centerpost  gasket  locknut  motor  pressurized  seal  spray  touch  white


Select a Diagram

02 - Top, Lid And Control Box

03 - Console

04 - Tub And Basket

05 - Drive

06 - Cabinet

07 - Miscellaneous , Water Pump

08 - Wiring Harness , Literature And Optional

09 - Gearcase

10 - Basket Drive And Basket

Select Diagram ... 02 - Top, Lid And Control Box 03 - Console 04 - Tub And Basket 05 - Drive 06 - Cabinet 07 - Miscellaneous , Water Pump 08 - Wiring Harness , Literature And Optional 09 - Gearcase 10 - Basket Drive And Basket

06 - Cabinet   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP95440	Connector, Hose (Replaces: 95440)	$5.40 Special Order
2	WP356138	Clamp, Hose (Replaces: 356138)	$4.50 Special Order
3	WP285655	Clamp, Hose	$4.50  In-Stock Retail: $4.33
7	WP96743	Hose, Gooseneck   (Replaces: 96743)	$51.40  In-Stock Retail: $50.14
9	WP89503	Hose, Inlet (2)	$7.80  In-Stock Retail: $11.98
10	16123D	Washer, Rubber (4) (Replaces: 16123)	Call for Availability
11	WP3390631	Screw, 10-24 X 3/8	$4.50  In-Stock Retail: $4.33
12	85279	Panel, Rear	Call for Availability
13	WP681414	Screw,10-16 X 1/2	$4.50 Special Order
14	WP96160	Screen, Filter	$6.60 Special Order
15	21114	Hose, Pump Discharge	$22.30 Special Order
16	WP285655	Clamp, Hose	$4.50  In-Stock Retail: $4.33
17	WP18776	Lock, Front Top (2) (Replaces: 18776)	$6.70  In-Stock Retail: $6.45
18	356459	Plate, Gusset (2)	Call for Availability
25	384793	Cabinet (white)	Call for Availability
26	WP359364	Clip, Leveling Mechanism (2) (Replaces: 359364)	$4.50  In-Stock Retail: $4.33
28	359059	Leveling Link Assembly	$16.80 Special Order
29	WP358594	Foot, Rear (2) (Replaces: 358594)	$7.60  In-Stock Retail: $7.33
30	18849	Pad, Hinge (2)	$12.80 Special Order
31	92657	Hinge, L.h.	$4.40 Special Order
	92657	Hinge, R.h.	$4.40 Special Order
32	3347285	Cord, Power	Call for Availability
33	285874	Valve, Mixing (serviced Only As A Complete Valve)	$125.30 Special Order

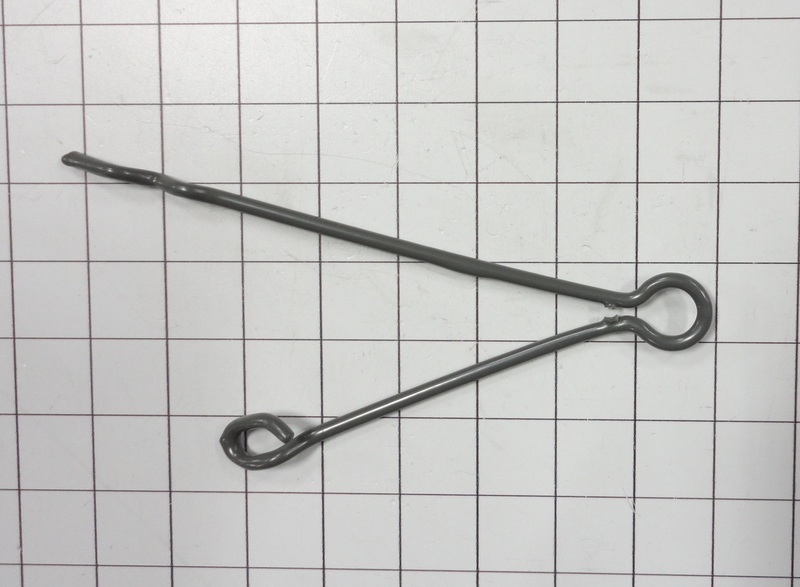

34	357977	Spring, Snubber	$6.50 Special Order

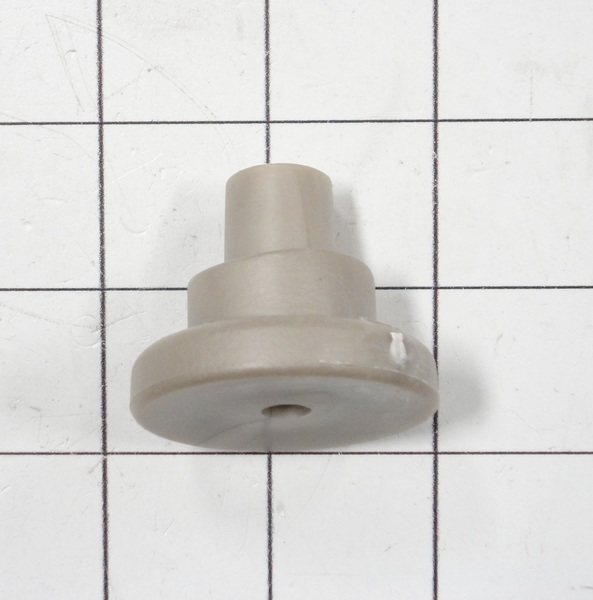

35	358336	Snubber	$4.40  In-Stock Retail: $4.20
37	WP681414	Screw, 10-16 X 1/2	$4.50 Special Order
38	WP367594	Foot, Front (2)   (Replaces: 367594)	$6.10  In-Stock Retail: $5.88
39	WP681414	Screw, 10-16 X 1/2	$4.50 Special Order
40	285394	Switch, Water Level	$89.00 Special Order
41	WP90767	Screw, 8a X 7/8   (Replaces: 90767)	$4.50  In-Stock Retail: $4.33
42	353885	Barrier, Splash	Call for Availability
46	WP98997	Clip, Harness	$6.60 Special Order
47	WP90016	Clip	$6.60  In-Stock Retail: $6.43
48	354179	Plug, Cabinet (1)	Call for Availability
51	364089	Ground Wire	Call for Availability
57	98669	Locator, Top	$8.20 Special Order
