02 - Top, Lid And Control Box   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP681414	Screw,10-16 X 1/2	$4.50 Special Order
2	386298	Timer, 50 Hz. (240 Volt)	$110.40 Special Order
3	386010	Motor, Timer (50 Hz.)	Call for Availability
4	386791	Plate, Timer Mounting	Call for Availability
5	WP356418	Screw, Timer Mounting (2)	$4.50 Special Order
6	386612	Harness, Timer	Call for Availability
7	W10876590	Block, Timer Disconnect (Replaces: 352089)	$7.30 Special Order
8	3390423	Cap, Terminal 12 Way (uses Terminal 94613	$8.70 Special Order
9	355410	Plug, Terminal (9 Way)	Call for Availability
11	3348574	Pushbutton	$4.70 Special Order
12	386273	Cover, Control Box	Call for Availability
13	WP965173	Screw, 8 X 3/8 (cover To Box)	$6.00 Special Order
14	690853	Wire, Ground	$32.00 Special Order
15	352481	Bushing, Snap	Call for Availability
16	94216	Panel, Control Box Rear	Call for Availability
17	90057	Screw, Ground Wire To Top	Call for Availability
18	359243	Screw, Lid Handle	Call for Availability
19	W10861826	Handle, Lid (white)   (Replaces: 379884)	$26.90 Special Order
20	382792	Lid (white)	Call for Availability
21	WPW10119828	Screw & Washer (4) (Replaces: 355274)	$4.50  In-Stock Retail: $4.33

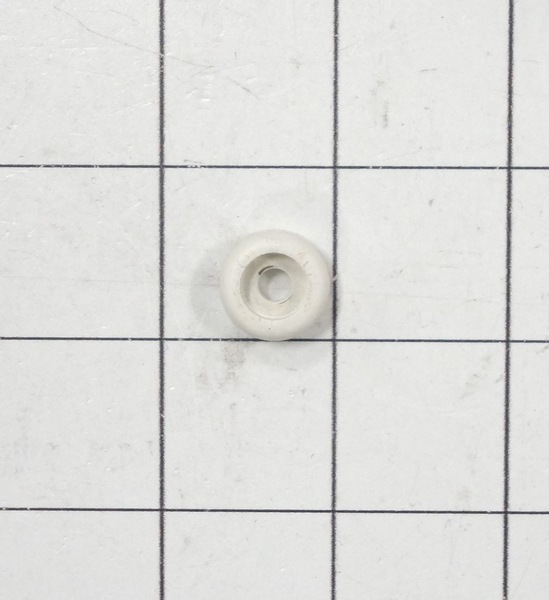

22	WP356908	Bumper, Lid	$6.80 Special Order

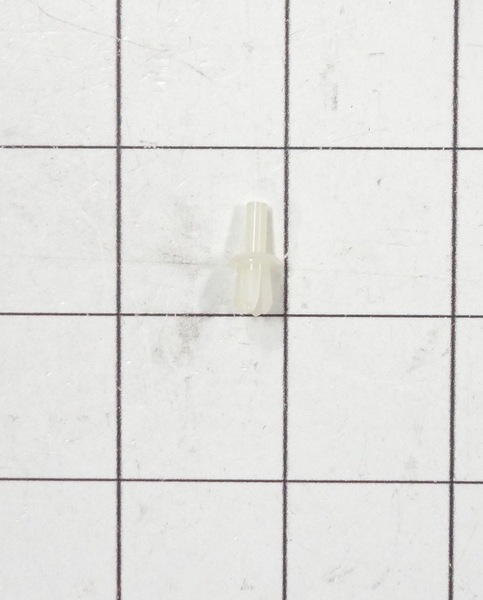

23	WP356907	Rivet, Plastic	$4.50 Special Order
24	WP19119	Bumper, Lid Hinge (Replaces: 19119)	$4.50 Special Order
25	WP21258	Bearing, Hinge (Replaces: 21258)	$4.50 Special Order
26	WP21097	Pad, Hinge (Replaces: 21097)	$4.50  In-Stock Retail: $4.33
27	WP91770	Hinge, Lid (r.h.) (Replaces: 91770)	$16.10  In-Stock Retail: $15.66
28	91099	Hinge, Lid (l.h.)	Call for Availability
29	353878	Nut, Push-in	Call for Availability
30	98219	Nut, Push-in (8)	Call for Availability
31	92398	Spring, Lid (l.h.)	$7.20 Special Order
32	386373	Top (white)	Call for Availability
33	W10820036	Switch, Lid (alt.)	$31.50  In-Stock Retail: $31.49
	W10820036	Switch, Lid (alt.)	$31.50  In-Stock Retail: $31.49
	W10820036	Switch, Lid	$31.50  In-Stock Retail: $31.49
	W10820036	Switch, Lid (alt.)	$31.50  In-Stock Retail: $31.49
34	370959	Actuator, Lid Switch	$1.30 Special Order
35	354764	Screw & Washer (2)	$4.40 Special Order

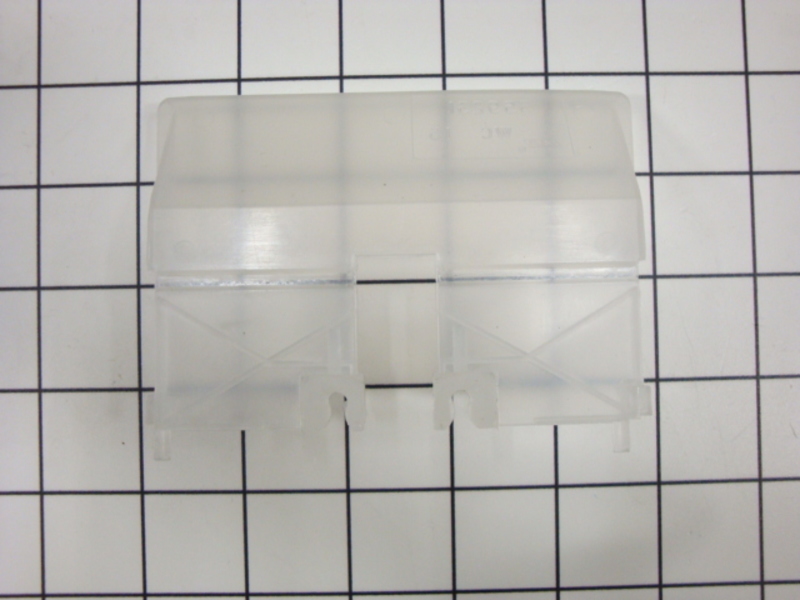

36	WP359231	Shield, Lid Switch	$4.50 Special Order
37	357633	Strike, Lid Switch	Call for Availability
38	354975	Screw & Washer	$8.20 Special Order
39	386366	Box, Control (white)	Call for Availability
