Whirlpool 7WDF530PAYM2 Parts List

Popular Searches: (Click to search)    also  assembly  assy  dispenser  door  drain  element  heater  hose  includes  item  latch  paint  pressurized  pump  seal  spray  strike  touch  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel And Latch Parts

03 - Inner Door Parts

04 - Fill, Drain And Overfill Parts

05 - Tub And Frame Parts

06 - Pump And Motor Parts

07 - Upper Wash And Rinse Parts

08 - Heater Parts

09 - Upper Rack And Track Parts

10 - Lower Rack Parts

11 - Lower Washarm Parts

12 - Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel And Latch Parts 03 - Inner Door Parts 04 - Fill, Drain And Overfill Parts 05 - Tub And Frame Parts 06 - Pump And Motor Parts 07 - Upper Wash And Rinse Parts 08 - Heater Parts 09 - Upper Rack And Track Parts 10 - Lower Rack Parts 11 - Lower Washarm Parts 12 - Optional Parts (not Included)

09 - Upper Rack And Track Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W11169039	Dishrack, Upper	$147.60  In-Stock Retail: $143.99
2	W10850374	Mount Wheel Stationary	$40.70 Special Order

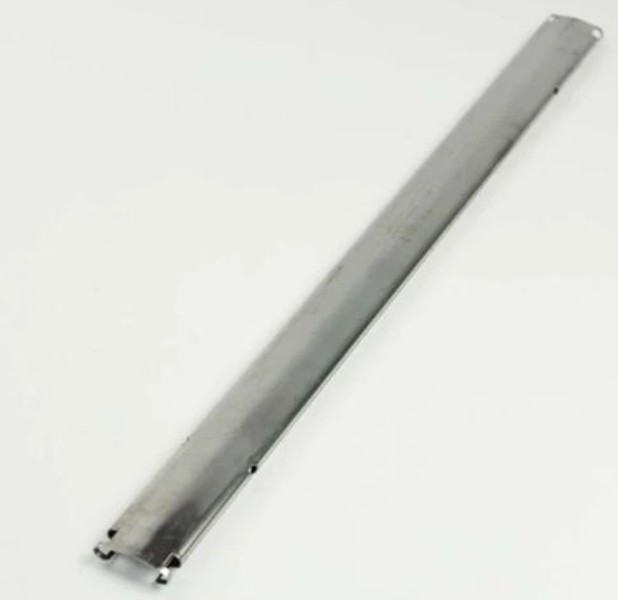

3	WP3385089	Track, Rack   (Replaces: 3385089)	$52.20  In-Stock Retail: $50.87
4	WP8565925	Track, Stop Non-removable (Replaces: 8565925)	$4.40  In-Stock Retail: $4.20
5	WPW10306228	Track Spacer	$4.50 Special Order
6	WP8268828	Cupshelf, Small	$76.10 Special Order
7	8562004	Clip, No Flip	$16.70 Special Order

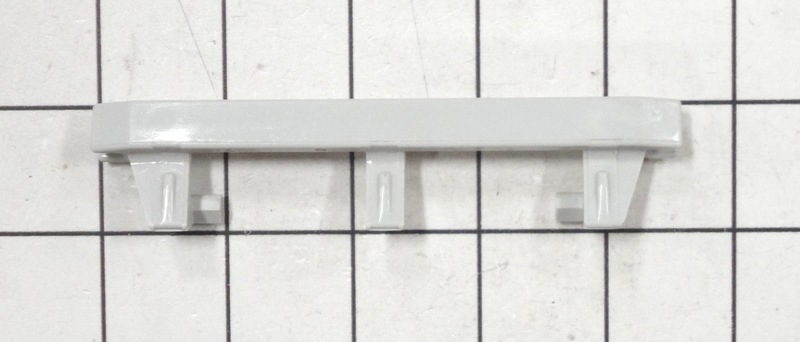

8	8268826	Cupshelf, Clip	$13.00 Special Order
