Whirlpool 7WDF530PAYM2 Parts List

Popular Searches: (Click to search)    also  assembly  assy  dispenser  door  drain  element  heater  hose  includes  item  latch  paint  pressurized  pump  seal  spray  strike  touch  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel And Latch Parts

03 - Inner Door Parts

04 - Fill, Drain And Overfill Parts

05 - Tub And Frame Parts

06 - Pump And Motor Parts

07 - Upper Wash And Rinse Parts

08 - Heater Parts

09 - Upper Rack And Track Parts

10 - Lower Rack Parts

11 - Lower Washarm Parts

12 - Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel And Latch Parts 03 - Inner Door Parts 04 - Fill, Drain And Overfill Parts 05 - Tub And Frame Parts 06 - Pump And Motor Parts 07 - Upper Wash And Rinse Parts 08 - Heater Parts 09 - Upper Rack And Track Parts 10 - Lower Rack Parts 11 - Lower Washarm Parts 12 - Optional Parts (not Included)

07 - Upper Wash And Rinse Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10340741	Feed Tube Assembly (also Includes Items 2 & 3)	$69.50 Special Order
2	WPW10327455	Sprayarm (Replaces: W10327455)	$51.80  In-Stock Retail: $50.44
3	WP3400918	Retainer (Replaces: 3400918)	$25.40  In-Stock Retail: $24.71

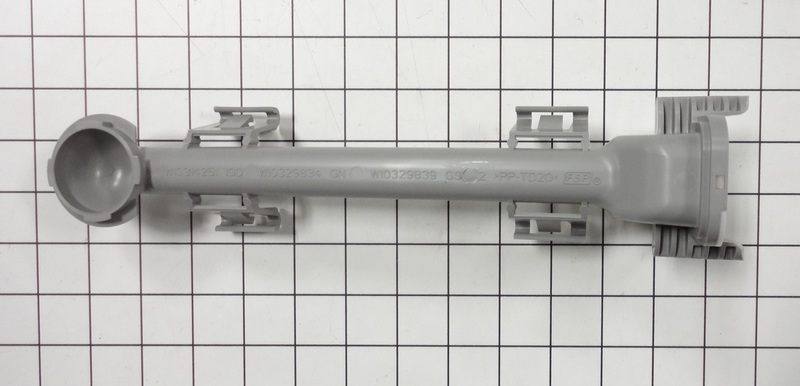

4	WPW10323195	Manifold (Replaces: W10323195)	$67.40 Special Order
5	W10195329	Seal, Sprayarm	Call for Availability
6	WPW10340504	Sprayarm (Replaces: W10340504)	$43.50  In-Stock Retail: $42.40
