Whirlpool KGRT507BAL1 Parts List

Popular Searches: (Click to search)    2oz  almond  black  cleaner  door  foot  fuse  glass  hinge  ignitor  metal  module  paint  pressurized  sensor  spark  spray  switch  touch  white


Select a Diagram

01 - Cooktop, Literature

02 - Cooktop Burner

03 - Control Panel

04 - Door & Drawer

05 - Oven Chassis

06 - Broiler And Oven Burner

07 - Oven

08 - Rear Chassis, Optional

Select Diagram ... 01 - Cooktop, Literature 02 - Cooktop Burner 03 - Control Panel 04 - Door & Drawer 05 - Oven Chassis 06 - Broiler And Oven Burner 07 - Oven 08 - Rear Chassis, Optional

03 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart

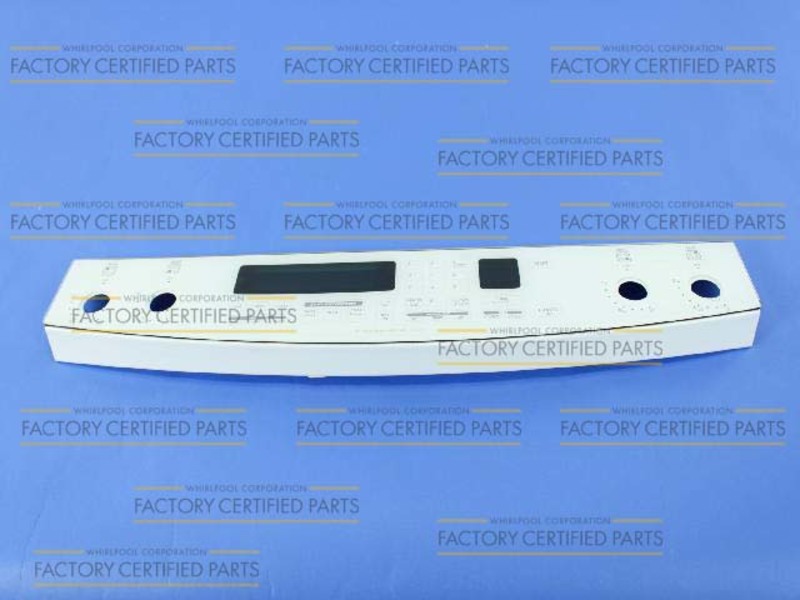

1	9751888	Console, Glass (white Mdl.)	Call for Availability
	9751894	Console, Glass (black Mdl.)	Call for Availability
	9751892	Console, Glass (almond Mdl.)	Call for Availability
2	3191106	Timer, Electronic (Replaces: 3190378)	Call for Availability
	9780271	Screw, (2)	Call for Availability
4	WP4159387	End Cap R.h. (screw, (2) 10 X 3/8)	$4.50 Special Order
	9751280FC	End Cap R.h. (almond)	$14.30 Special Order
	9751280FB	End Cap (black, Right)	Call for Availability
	9751280FW	End Cap (white, Right)	$14.30 Special Order
5	9751279FW	End Cap L.h. (white)	$14.30 Special Order
	9751279FC	End Cap L.h. (almond)	$14.30 Special Order
	9751279FB	End Cap L.h. (black)	Call for Availability
	WP4159387	End Cap L.h. (screw, (2) 10 X 3/8)	$4.50 Special Order

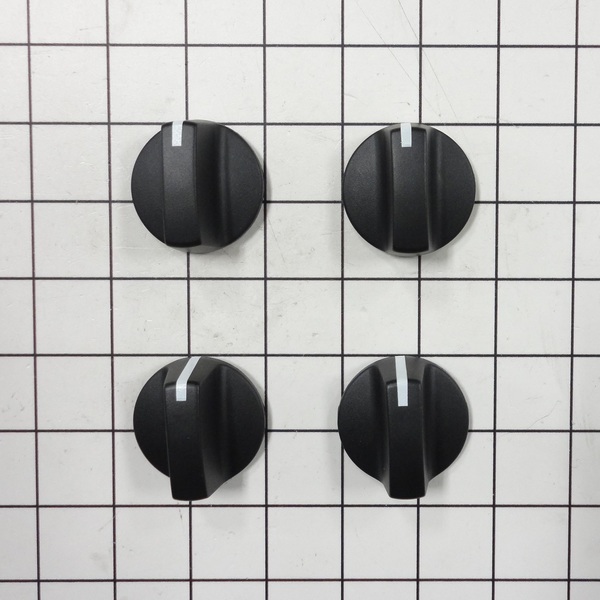

8	W10405147	Knobs, Control (black Mdl.)	$52.00 Special Order
	9751199FW	Knobs, Control (white Mdl.)	$12.70 Special Order
	9751199FT	Knobs, Control (almond Mdl.)	Call for Availability
23	9751449	Washer, Console (4) (black Mdl.)	Call for Availability
	9751450	Washer, Console (4) (white Mdl.)	Call for Availability
	9751451	Washer, Console (4) (almond Mdl.)	Call for Availability
