Whirlpool KGRS205TBL2 Parts List

Popular Searches: (Click to search)    12oz  2oz  bake  biscuit  black  broil  bulb  burner  ctr  igniter  light  oven  paint  pressurized  screw  spray  superior  touch  valve  white


Select a Diagram

01 - Cooktop Parts

02 - Control Panel Parts

03 - Chassis Parts

04 - Manifold Parts

05 - Door Parts

06 - Drawer And Rack Parts

07 - Optional Parts (not Included)

Select Diagram ... 01 - Cooktop Parts 02 - Control Panel Parts 03 - Chassis Parts 04 - Manifold Parts 05 - Door Parts 06 - Drawer And Rack Parts 07 - Optional Parts (not Included)

01 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10188242	Installation Instructions	Call for Availability
	W10185364	Owners Manual	Call for Availability
	W10168001	Wiring Diagram	Call for Availability
2	7504P296-60	Cap, Burner (rf) (gray)	$57.70 Special Order

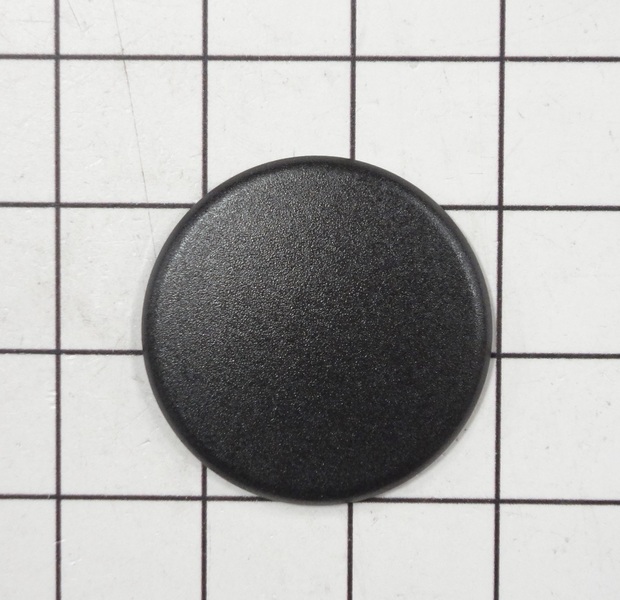

	WP7504P298-60	Cap, Burner (ctr) (black) (Replaces: 7504P298-60)	$38.90 Special Order
	WP7504P300-60	Cap, Burner (rf) (black)	$72.90 Special Order
	WP7504P299-60	Cap, Burner (lf) (black)	$56.80 Special Order
	7504P295-60	Cap, Burner (lf) (gray)	$56.60 Special Order
	W10168355	Cap, Burner (rr & Lr) (black)	$35.00 Special Order
	W10168351	Cap, Burner (rr & Lr) (gray)	$46.50 Special Order
	7504P294-60	Cap, Burner (ctr) (gray)	$39.40 Special Order
3	74008761	Spacer, Snap-in	$5.40 Special Order
4	WPW10406797	Burner (lf) (Replaces: 8286182)	$52.60  In-Stock Retail: $51.28
	WPW10406283	Burner (rr & Lr)	$44.20 Special Order
	WPW10406878	Burner (rf) (Replaces: W10406878 8286183)	$63.20  In-Stock Retail: $61.62
	WPW10406243	Burner (ctr) (Replaces: 8286181)	$23.00  In-Stock Retail: $22.41
5	W10182784	Cooktop (white)	$166.40 Special Order
	W10182781	Cooktop (black)	$198.70 Special Order
6	W10168241	Panel, Manifold (white)	$67.10 Special Order
	W10168678	Panel, Manifold (stainless Steel)	$134.90 Special Order
	W10168240	Panel, Manifold (black)	$16.80 Special Order

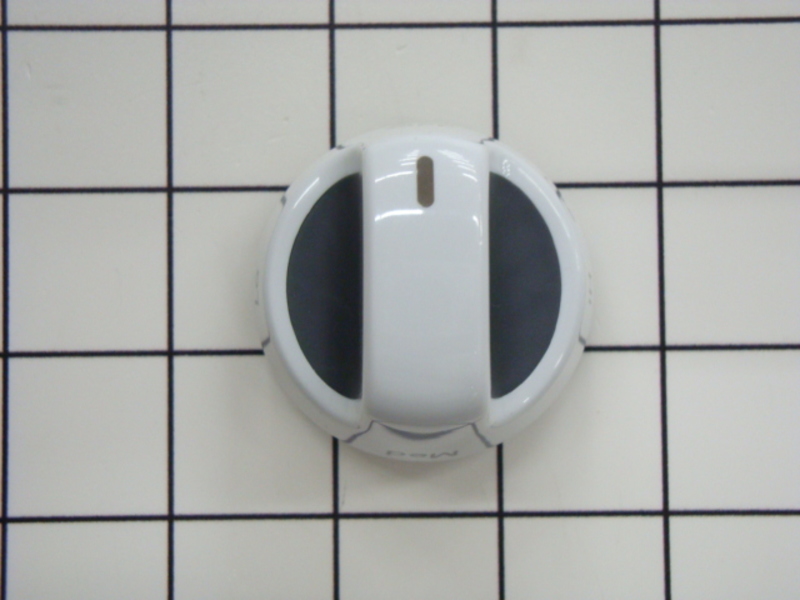

7	WPW10160372	Knob, Control (5) (white)	$20.20  In-Stock Retail: $19.67
	WPW10160375	Knob, Control (5) (s.steel)   (Replaces: W10160375)	$26.00  In-Stock Retail: $25.31

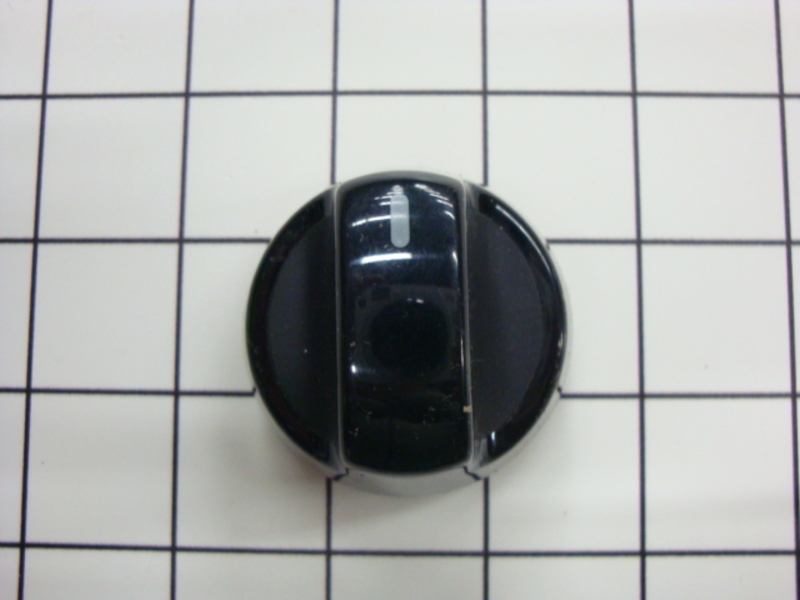

	WPW10160374	Knob, Control (5) (black)	$16.80 Special Order
8	W10168266	Grate, Burner (2) (black)	$84.80 Special Order
	W10168265	Grate, Burner (2) (gray)	$88.40 Special Order
9	WP3368921	Screw (8) (Replaces: 3400701)	$1.30  In-Stock Retail: $1.24
10	W11233072	Screw	$8.20  In-Stock Retail: $7.99
