Whirlpool KGCP463KSS01 Parts List

Popular Searches: (Click to search)    14k  auxillary  bulb  burner  cap  clip  harness  head  holder  includes  jumper  orifice  screw  turbo  valve  wire


Select a Diagram

01 - Cooktop, Burner And Grate Parts

02 - Burner Box, Gas Valves, And Switches

Select Diagram ... 01 - Cooktop, Burner And Grate Parts 02 - Burner Box, Gas Valves, And Switches

01 - Cooktop, Burner And Grate Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	LIT8285589	Literature Parts (instructions, Lp Conversion)	Call for Availability
	LIT8284671	Literature Parts (wiring Diagram)	Call for Availability
	LIT8285588	Literature Parts (use & Care Guide)	Call for Availability
	LIT8285479	Literature Parts (installation Instructions)	Call for Availability
2	4454960	Backsplash	Call for Availability
3	8284712	Support, Backsplash	Call for Availability
4	WP3196557	Screw, 8-18 X 3/8	$4.50  In-Stock Retail: $4.33
5	W10106700	Grate, Burner (Replaces: 4454963)	$79.50 Special Order
6	8284851	Trim, Island	$42.50 Special Order
7	WP12990527	Screw, 8-18 X 1/4	$4.50  In-Stock Retail: $4.33
9	8285478	Support, Control Panel	$30.30 Special Order
13	WP4455243	Cap, Burner (14k (2)) (Replaces: 4455243)	Call for Availability
	WP8284669	Cap, Burner (6k (2)) (Replaces: 8284669)	$39.50  In-Stock Retail: $38.45
15	WP9782447	Holder, Orifice Includes Orifice (auxillary (2)) (Replaces: 9782447)	$51.50 Special Order
	WPW10155786	Holder, Orifice Includes Orifice (turbo (2))	$67.50  In-Stock Retail: $65.77
17	W10157585	Trim, Side (left Hand)	$172.40 Special Order
	8285161	Trim, Side (right Hand)	$25.20 Special Order
18	8284812	Cooktop, Black	Call for Availability
19	WP4455979	Burner Head 14k (auxillary (2)) (Replaces: 4455979)	$33.70  In-Stock Retail: $32.86
	WP4455849	Burner Head 14k (turbo (2)) (Replaces: 4455849)	Call for Availability
20	WP3368921	Screw, 7-18 X 3/4 (Replaces: 3368921)	$1.30  In-Stock Retail: $1.24
21	W10368699	Nameplate	$49.00 Special Order
22	WP2004333	Palnut (Replaces: 2004333)	$6.40 Special Order
23	W10157522	Control Frame	$126.10 Special Order
24	8284798	Panel, Control	$187.10 Special Order
25	W11233072	Screw, 8-18 X 1/2	$8.20  In-Stock Retail: $7.99
26	4455192	Bezel, Knob	$20.00 Special Order
27	WPW10078400	Knob, Burner (Replaces: 4454970)	$4.50 Special Order
28	4455109	Plate, Simmer	Call for Availability
29	WPW10110491	Module, Spark 4-burner	$182.40  In-Stock Retail: $177.94

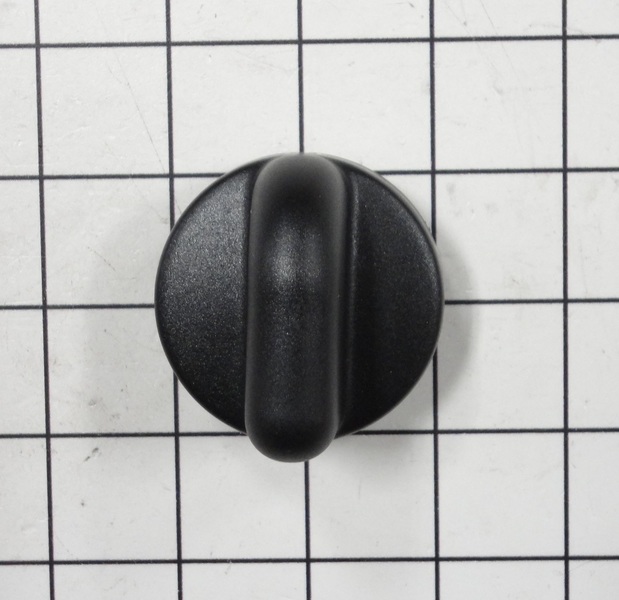

33	8284743	Knob, Griddle	$78.30 Special Order
35	8285038	Cover, Burner Spud	$27.40 Special Order
