Maytag MDG3000AXQ Parts List

Popular Searches: (Click to search)    assembly  assy  bearing  belt  coil  gas  idler  igniter  kit  motor  multi  pulley  radiant  roller  secondary  sensor  temp  thermostat  tumbler  valve


Select a Diagram

01 - Cabinet-front (mdg3000axq/awq)

02 - Cabinet-rear (mdg3000axq/awq)

03 - Control Panel (mdg3000axq/awq)

04 - Door (mdg3000axq/awq)

05 - Gas Valve (mdg3000axq/awq)

06 - Motor Drive (mdg3000axq/awq)

07 - Tumbler (mdg3000axq/awq)

08 - Wiring Information (mdg3000axq/awq)

Select Diagram ... 01 - Cabinet-front (mdg3000axq/awq) 02 - Cabinet-rear (mdg3000axq/awq) 03 - Control Panel (mdg3000axq/awq) 04 - Door (mdg3000axq/awq) 05 - Gas Valve (mdg3000axq/awq) 06 - Motor Drive (mdg3000axq/awq) 07 - Tumbler (mdg3000axq/awq) 08 - Wiring Information (mdg3000axq/awq)

03 - Control Panel (mdg3000axq/awq)   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8534058	Screw (Series: 10)	$6.30 Special Order
	33002350	Panel, Control (bsq) (Series: 10)	Call for Availability
2	WP33002346	Skirt, Timer Dial (bsq) (Series: 10) (Replaces: 33002346)	$25.60 Special Order
3	WP22001659	Timer Knob - Grey (Series: 10) (Replaces: 22001659)	$15.00  In-Stock Retail: $14.61

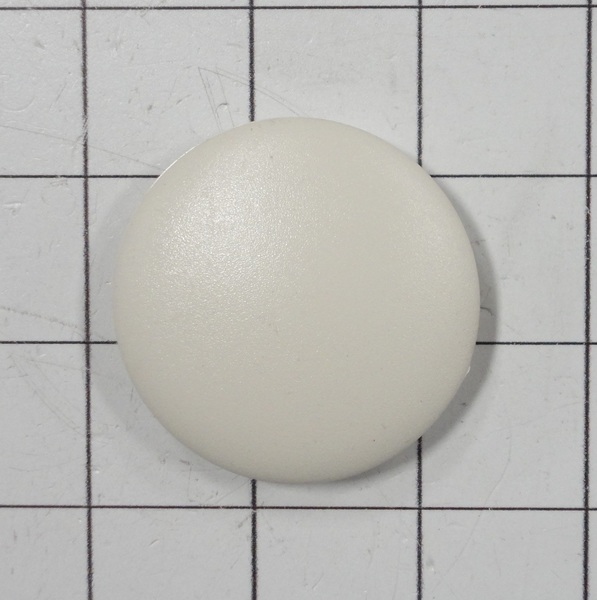

4	33002347	Timer Knob Insert/cap (Series: 10)	$17.40  In-Stock Retail: $16.93
5	33002435	Button, Push To Start (bsq) (Series: 10)	$4.40 Special Order
6	WP90767	Screw, Timer (Series: 10)	$4.50  In-Stock Retail: $4.33
7	WP33001730	Timer (Series: 10) (Replaces: 33001730)	$188.00 Special Order
8	WP489128	Screw, Ground Wire To Base--na (Series: 10)	$6.30 Special Order
9	33001859	Wire, Ground (Series: 10)	Call for Availability
10	WP90767	Screw, End Of Cycle----na (Series: 10)	$4.50  In-Stock Retail: $4.33
11	33001848	Signal, End Of Cycle (chime) (Series: 10)	$27.80 Special Order
12	33002356	Switch, Push-to-start (bsq) (Series: 10)	$4.10 Special Order
13	33001887	Wire Harness, Main (Series: 10)	$63.20 Special Order
14	22002593	Switch, Push Button (bsq) (Series: 10)	$31.80 Special Order
15	22002697	Button, Switch (bsq-end) (Series: 10)	$4.40 Special Order
16	22002698	Button, Switch (bsq-mdl) (Series: 10)	$5.20 Special Order
17	33002400	Dryness Display Control (bsq) (Series: 10)	Call for Availability
18	WP33001656	Switch, Temperature (bsq) (Series: 10)	$150.90 Special Order
19	WP489128	Screw (Series: 10)	$6.30 Special Order
	22002529	Back, Console Panel (Series: 10)	$12.90 Special Order
20	33002327	Console (bsq) (Series: 10)	$36.80 Special Order
21	33001875	Manual, Use & Care (french) (Series: 10)	Call for Availability
