Whirlpool 4KUDI220T0 Parts List

Popular Searches: (Click to search) 2oz almond assembly axle black counterbalance door fill flat gasket lower paint pressurized rack roller spray spring touch valve white

Select a Diagram

02 - Door And Panel

03 - Blower

04 - Control Panel , Literature And Optional

05 - Pump And Motor

06 - Lower Washarm And Strainer

07 - Heater

08 - Fill And Overfill

09 - Upper Wash And Rinse

10 - Frame And Tank

11 - Upper Rack And Track

12 - Lower Rack

13 - Door And Latch

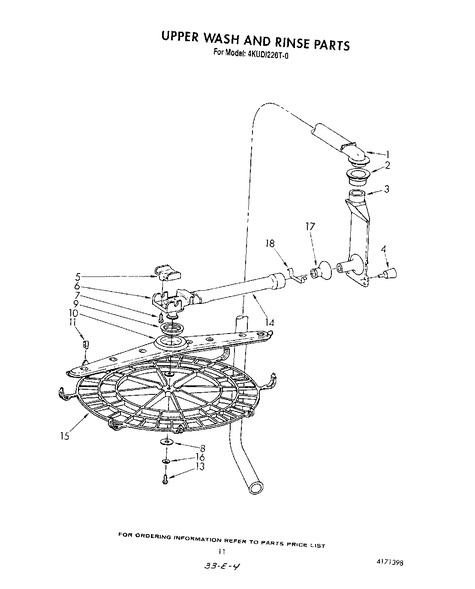

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	4171537	Tube & Connector Assembly (Replaces: 4162664)	$65.90 Special Order
2	4171537	Connector, Vertical Conduit	$65.90 Special Order
3	4162655	Conduit, Vertical	$32.70 Special Order
4	4162609	Retainer, Conduit	$9.60 Special Order
5	4171540	Retainer, Manifold	$4.40 Special Order
6	4171541	Manifold, Upper Arm (Replaces: 4162466)	$14.70 Special Order
7	4161737	Screw	Call for Availability
8	4162625	Bearing, Arm (bottom)	$4.40 Special Order
9	4162491	Bearing, Arm (top)	$8.60 Special Order
10	9742178	Wash/rinse Arm Assembly (Replaces: 9740878 4162468)	Call for Availability
11	4171542	Clip, Guard (Replaces: 4162501)	Call for Availability
13	4161737	Screw	Call for Availability
14	WP4171544	Tube (manifold To Receiver) (Replaces: 4161617)	Call for Availability
15	4171543	Guard, Arm (Replaces: 4162469)	$42.60 Special Order
16	4162624	Washer	Call for Availability
17	4171566	Receiver, Manifold (Replaces: 4162436)	$16.50 In-Stock Retail: $16.03
18	4171565	Support, Receiver	$4.40 Special Order
