Maytag MDE9606AZQ Parts List

Popular Searches: (Click to search) assembly baffle bearing belt blower door filter idler kit lint motor pulley roller seal shaft short switch tall tumbler wheel

Select a Diagram

01 - Cabinet (bisq)

02 - Cabinet-rear (bsq)

03 - Control Panel (bsq)

04 - Door (bsq)

05 - Heater (bsq)

06 - Motor Drive (bsq)

07 - Tumbler (bsq)

08 - Wiring Information

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	33002438	Panel, Control (Series: 10)	$39.70 Special Order
	8534058	Screw (Series: 10)	$6.30 Special Order

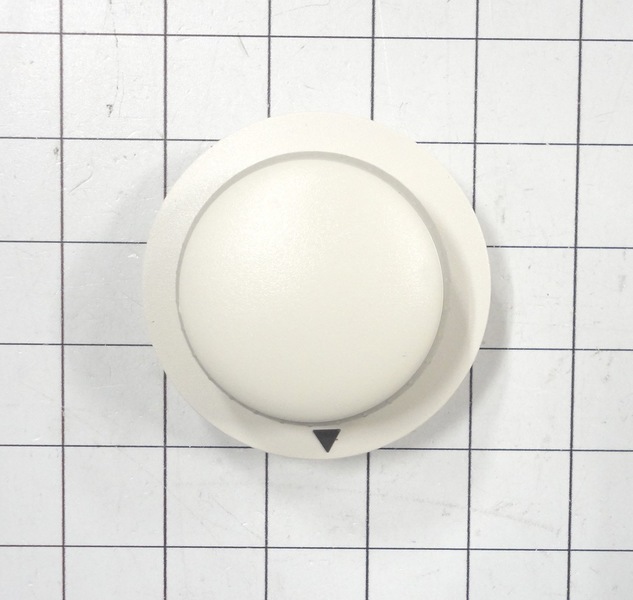

2	33002332	Skirt, Timer Knob (bsq) (Series: 10)	Call for Availability
3	WP22001659	Timer Knob - Grey (Series: 10) (Replaces: 22001659)	$15.00 In-Stock Retail: $14.61
4	33002347	Timer Knob Insert/cap (Series: 10)	$17.40 In-Stock Retail: $16.93
5	33002435	Button, Push To Start (bsq) (Series: 10)	$4.40 Special Order
6	WP90767	Screw, Timer (Series: 10)	$4.50 In-Stock Retail: $4.33

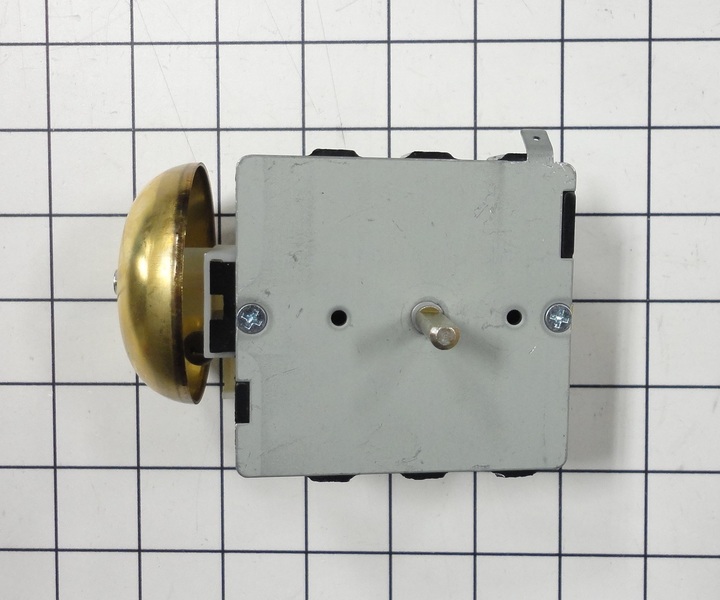

7	WP33001932	Timer (w/chime) (Series: 10) (Replaces: 33001932)	$216.10 Special Order
8	WP489128	Screw (Series: 10)	$6.30 Special Order
9	33002327	Console (bsq) (Series: 10)	$36.80 Special Order
10	33002356	Switch, Push-to-start (bsq) (Series: 10)	$4.10 Special Order
11	33001933	Wire Harness, Main (Series: 10)	$74.20 Special Order
12	33002333	Switch,temp 4 Pos(elec) (bsq) (Series: 10)	$32.40 Special Order
13	22002697	Button, Switch (bsq-end) (Series: 10)	$4.40 Special Order
14	22002698	Button, Switch (bsq-mdl) (Series: 10)	$5.20 Special Order
15	33002400	Dryness Display Control (bsq) (Series: 10)	Call for Availability
16	22002529	Back, Console Panel (Series: 10)	$12.90 Special Order
18	33001935	Manual, Use & Care (french) (Series: 10)	Call for Availability
