Whirlpool KERK807PSS00 Parts List

Popular Searches: (Click to search)    black  blower  foot  hinge  left  manager  membrane  paint  pressurized  rear  receiver  screw  sealer  sensor  silastic  spray  thermostat  tod  touch  white


Select a Diagram

01 - Cooktop Parts

02 - Control Panel Parts

03 - Oven Parts

04 - Door And Drawer Parts

05 - Internal Oven Parts

06 - Top Venting Parts, Optional Parts

Select Diagram ... 01 - Cooktop Parts 02 - Control Panel Parts 03 - Oven Parts 04 - Door And Drawer Parts 05 - Internal Oven Parts 06 - Top Venting Parts, Optional Parts

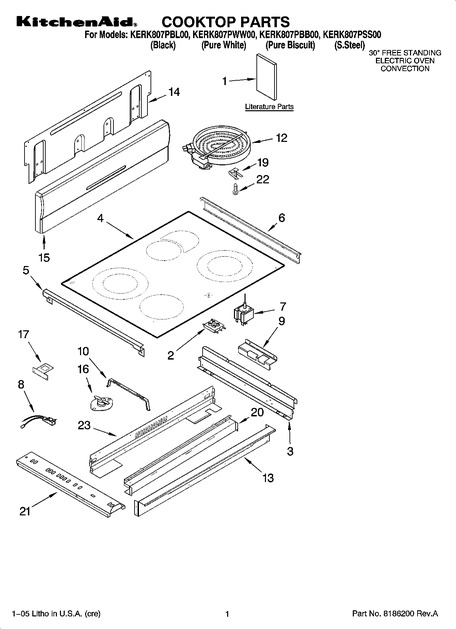

01 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	9757680	Anti-tip Instruct.	Call for Availability
	3191638	Safe Cooking Tips	Call for Availability
	9757446	Installation Instructions	Call for Availability
	9757451	Use & Care Guide	Call for Availability
	9757662	Tech Sheet	Call for Availability
2	8523739	Light, Indicator	$110.60 Special Order
3	4454023	Bracket, Mounting	$55.50 Special Order
	3179776	Screw	$4.40 Special Order
4	9756450	Cooktop (gasket)	$95.80 Special Order
	9759748BL	Cooktop (black)	$260.90 Special Order
	9759983WW	Cooktop (white)	$247.70 Special Order
	9759748BB	Cooktop (biscuit)	$260.90 Special Order
	WP9759748SS	Cooktop (s.steel)   (Replaces: 9759748SS)	Call for Availability
5	3179776	Screw	$4.40 Special Order
	4453764	Clip, Ceran (2)	Call for Availability
6	3179776	Trim-cktop, Si (screw)	$4.40 Special Order
	9756701SS	Trim-cktop, Si (s.steel Rh)	Call for Availability
	9756701BL	Trim-cktop, Si (black Rh)	$61.10 Special Order
	9756701BT	Trim-cktop, Si (biscuit Rh)	$64.70 Special Order
	9756701WH	Trim-cktop, Si (white Rh)	$61.90 Special Order
	9756700SS	Trim-cktop, Si (s.steel Lh)	Call for Availability
	9756700BL	Trim-cktop, Si (black Lh)	$61.10 Special Order
	9756700BT	Trim-cktop, Si (biscuit Lh)	$64.70 Special Order
	9756700WH	Trim-cktop, Si (white Lh)	$61.90 Special Order
7	W10307362	Switch, Infinite (lf, Rr, Lr)	$211.30 Special Order
	W10307362	Switch, Infinite (rf)	$211.30 Special Order
8	9756929	Light, Indicator	$42.50 Special Order
9	9757687	Support (r.hand)	$33.80 Special Order
	9757686	Support (l.hand)	$33.90 Special Order
10	WP9756821	Support, Wiring	$42.00 Special Order
	WP4449809	Screw (2) (Replaces: 4449809)	$4.50 Special Order
12	W10823698	Element, Surface (1800w - Rr) (Replaces: WP8523696 8523696)	$196.40  In-Stock Retail: $191.60
	W10823692	Element, Surface (2500/1000w (2))	$196.40  In-Stock Retail: $191.60
	W10823730	Element, Surface (1800/1000w) (Replaces: 8203525)	$206.90 Special Order
13	3179776	Screw (4)	$4.40 Special Order
	9757800	Bracket, Front Support	$56.70 Special Order
14	4454019	Cover, Backsplash Rear	$103.50 Special Order
15	9757767BL	Backsplash (black)	$44.00 Special Order
	9759454WH	Backsplash (white Gasket)	$67.80 Special Order
	9759454BT	Backsplash (biscuit)	$79.80 Special Order
	9759454BL	Backsplash (black)	$60.70 Special Order
	9757767GY	Backsplash (gray)	$44.00 Special Order
16	W10491985	Screw (2) (Replaces: 3196160)	$4.50  In-Stock Retail: $4.33
	WP9759944	Bimetal   (Replaces: 9751984)	$119.70  In-Stock Retail: $116.73
17	9758799	Bracket, Ind. Lamp	$46.70 Special Order
	W10491985	Screw (2) (Replaces: 3196160)	$4.50  In-Stock Retail: $4.33
19	3191791	Spring, Locator	$4.40 Special Order
20	9757802	Bracket, Rear Sprt	$43.20 Special Order
	3179776	Screw (4)	$4.40 Special Order
21	9763517	Rail, Element (2)	$58.90 Special Order
	3179776	Screw (4)	$4.40 Special Order
22	3179776	Screw	$4.40 Special Order
23	3179776	Screw (4)	$4.40 Special Order
	9761724	Cover, Cktp Rear	$33.20 Special Order
