Whirlpool KEHS01PMT0 Parts List

Popular Searches: (Click to search)    assembly  belt  bracket  door  drive  drum  element  fuse  heater  idler  lint  motor  pulley  roller  screen  seal  strike  support  thermal  thermistor


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts And Optional Parts (not Included)

04 - Door Parts

05 - Pedestal Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts And Optional Parts (not Included) 04 - Door Parts 05 - Pedestal Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	LIT8557328	Use & Care Guide	Call for Availability
	LIT8533579	Tech Sheet	Call for Availability
2	8546089	Top	$157.90 Special Order
3	8529983	Harness, Main	$109.50 Special Order
4	8546090	Panel, Console (includes Bezel, Light Indicators & Endcaps)	$231.70 Special Order
5	WP3394427	Clip, Harness	$4.50 Special Order
6	8519271	Bracket, Console	$38.10 Special Order
7	353424	Connector, Sensor	$13.00 Special Order
8	WP94614	Terminal (female)	$4.50 Special Order
9	3936144	Plug, Terminal	$13.00 Special Order
10	WP596797	Terminal	$4.50 Special Order
11	WP488729	Screw, 8-18 X 1/2	$4.50  In-Stock Retail: $4.33
12	WP488787	Screw, (8-18 X 1/2)	$6.30  In-Stock Retail: $6.13
13	8542690	Bezel, Cycle	$13.70 Special Order
14	3936150	Connector, 7-circuit	$50.90 Special Order
15	3395683	Connector (motor)	$31.90 Special Order
16	8281225	Screw, 8-18 X 1/2	$4.40 Special Order
17	2203186	Connector, 5-circuit	$7.90 Special Order
18	8542701	Knob, Assembly	$64.00 Special Order
19	8558455	User Interface (includes Illus. 28, 29 & 30)	Call for Availability
20	8542714	Endcap (lh)	$7.40 Special Order
21	8542713	Endcap (rh)	$7.40 Special Order
22	8542682	Light Indicator (status)	$31.60 Special Order
23	8542683	Light Indicator (cycle)	$31.60 Special Order
24	8542691	Lens, Display	$29.50 Special Order
25	8542684	Light Indicator (dryness Level)	$31.60 Special Order
26	8542685	Light Indicator (temperature)	$31.60 Special Order
27	8542686	Light Indicator (xcare/eoc)	$31.60 Special Order

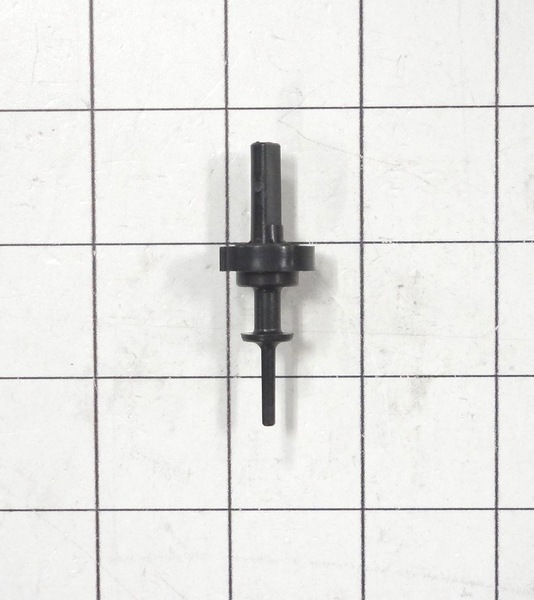

28	8542717	Shaft, Cycle Selector	Call for Availability
29	8542716	Bearing, Knob	$30.30 Special Order
30	8542715	Spring, Knob	$34.90 Special Order
31	8542711	Pushbutton, (control)	$6.00 Special Order
32	8542708	Pushbutton, (drytime)	$8.00 Special Order
33	8542709	Pushbutton, (dryness/temp)	$8.20 Special Order
34	8542710	Pushbutton, (xcare/eoc)	$6.20 Special Order
35	8558454	Pushbutton, (start/cancel)	$35.30 Special Order
