Whirlpool KEBS277SWH04 Parts List

Popular Searches: (Click to search)    2oz  adhesive  black  broil  element  fuse  hinge  jack  meat  paint  probe  receiver  screw  sealer  sensor  silastic  spray  thermal  touch  white


Select a Diagram

01 - Oven Parts

02 - Control Panel Parts

03 - Oven Door Parts

04 - Internal Oven Parts

05 - Top Venting Parts

06 - Optional Parts (not Included)

Select Diagram ... 01 - Oven Parts 02 - Control Panel Parts 03 - Oven Door Parts 04 - Internal Oven Parts 05 - Top Venting Parts 06 - Optional Parts (not Included)

03 - Oven Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8304522	Bumper, Door	$23.50 Special Order

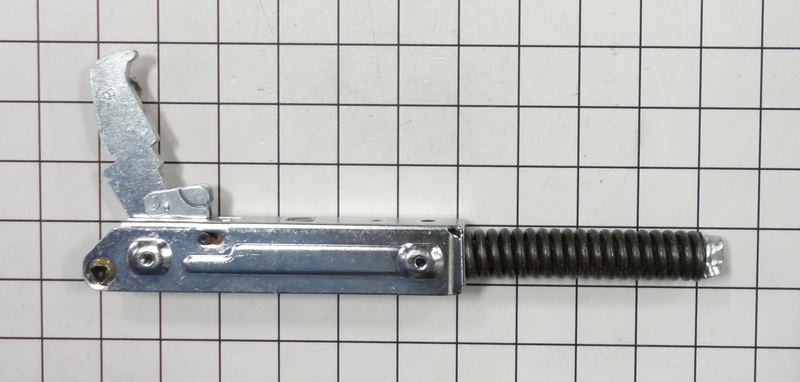

2	WPW10174288	Hinge, Door (Replaces: W10174288)	Call for Availability
3	WP3196183	Screw   (Replaces: 3196183)	$4.50 Special Order
4	8304580BL	Vent, Door Top	$53.80 Special Order
5	8304378	Bracket, Door (left)	$54.70 Special Order
	8304377	Bracket, Door (right)	Call for Availability
6	W10755521	Door Liner (Replaces: 8303738BL)	$210.90  In-Stock Retail: $205.71
7	WP8303732	Glass, Inner   (Replaces: 8303732)	$96.40 Special Order
8	WP4449743	Screw (Replaces: 4449743)	$4.50 Special Order
9	W10137043	Cover,hinge (left)	$35.40 Special Order
	W10137044	Cover,hinge (right)	$29.50 Special Order
10	W10754409	Seal (Replaces: 8304523)	$44.20  In-Stock Retail: $43.03
11	8304361BL	Bracket, Handle	$38.00 Special Order
12	W10401229	Door Glass, Assembly Lower Includes No.17 (stainless)	$226.20 Special Order
	W10401215	Door Glass, Assembly Lower Includes No.17 (black)	$57.10 Special Order
	8304003	Door Glass, Assembly Lower Includes No.17 (white)	$220.10 Special Order
	8304002	Door Glass, Assembly Upper No Badge (black)	$132.50 Special Order
	8304004	Door Glass, Assembly Upper No Badge (white)	$183.40 Special Order
	W10237353	Door Glass, Assembly Upper No Badge (stainless)	$198.00 Special Order
13	8303775SS	Door Handle (stainless)	Call for Availability
	W10448662	Door Handle (black)	$19.90 Special Order
	8303775WH	Door Handle (white)	Call for Availability
15	8303745BL	Frame, Door Side	$54.40 Special Order
16	8303754	Door, Top Bracket	$36.80 Special Order
17	8304603BL	Badge (black)	$51.40 Special Order
	8304603SS	Badge (stainless)	$35.70 Special Order
	8304603WH	Badge (white)	$45.40 Special Order
