Maytag MAV8057AWQ Parts List

Popular Searches: (Click to search)    assembly  assy  bearing  belt  cam  cap  drive  dust  kit  lid  motor  nut  pulley  pump  replacement  seal  switch  thrust  trans  tub


Select a Diagram

01 - Base

02 - Cabinet

03 - Control Panel

04 - Top

05 - Transmission

06 - Tub

07 - Wiring Information

08 - Wiring Information

Select Diagram ... 01 - Base 02 - Cabinet 03 - Control Panel 04 - Top 05 - Transmission 06 - Tub 07 - Wiring Information 08 - Wiring Information

06 - Tub   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP22004042	Agitator/auger Assy. (Series: 10)   (Replaces: 22003383 22003518 22002735)	$158.90 Special Order

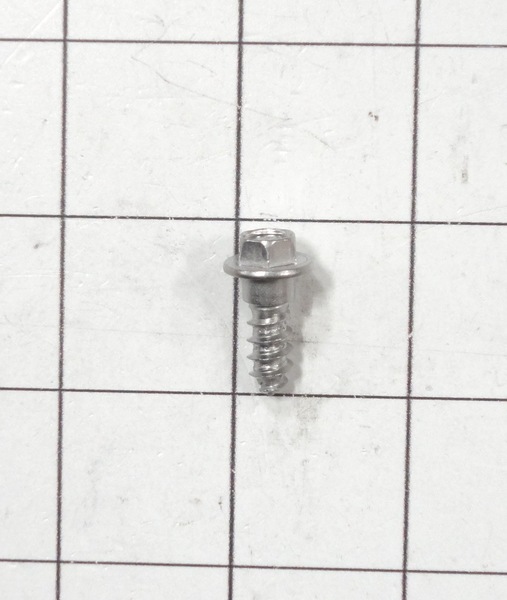

2	WP22002947	Screw (Series: 10)	$7.00 Special Order
3	WP22002933	Screw (Series: 10)	$4.50 Special Order
4	WPW10309247	Screw, Agitator Retention (Series: 10) (Replaces: 25-7948)	$18.20 Special Order
5	WP35-3685	Gasket, Basket To Centerpost (Series: 10)	$49.10 Special Order
6	35-3686	Gasket, Tub To Housing (Series: 10)	$4.40  In-Stock Retail: $4.20
7	WP3400504	Screw, Shoulder (Series: 10)   (Replaces: 25-7967)	$4.50  In-Stock Retail: $4.33
8	WP35-2328	Seal, Tub Top (Series: 10) (Replaces: 35-2328)	$49.40 Special Order
9	WP21001905	Dispenser, (atlantis Only) (Series: 10)	$43.30 Special Order
10	22002741	Spinner Assembly, Plastic (Series: 10)	$131.00 Special Order
11	WP35-2978	Seal, Tub/housing (Series: 10)	$4.50 Special Order
12	22002742	Tub, Outer (Series: 10)	$156.60 Special Order
13	WP22004385	Tub Cover Assy. (tub Top) (Series: 10)   (Replaces: 22002736)	Call for Availability
14	WP21001905	Dispenser, (atlantis Only) (Series: 10)	$43.30 Special Order
15	22004398	Block, Tub (atl) (Series: 10)	$25.10 Special Order
