Maytag MAV7580EWW Parts List

Popular Searches: (Click to search)    assembly  assy  bearing  belt  cam  cap  drive  dust  hub  kit  motor  nut  pulley  pump  replacement  seal  thrust  tran  trans  tub


Select a Diagram

01 - Base

02 - Cabinet

03 - Control Panel

04 - Top

05 - Transmission

06 - Tub

07 - Wiring Information

Select Diagram ... 01 - Base 02 - Cabinet 03 - Control Panel 04 - Top 05 - Transmission 06 - Tub 07 - Wiring Information

03 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP22001664	Timer Knob Insert/cap (wht) (Series: 10) (Replaces: 22001664)	$4.50  In-Stock Retail: $4.33
2	22002997	Pin, Locking (Series: 10)	Call for Availability
3	22002996	Knob, Timer (gry) (Series: 10)	$3.10 Special Order
4	27001092	Skirt, Timer Knob (wht) (Series: 10)   (Replaces: 22002995)	Call for Availability

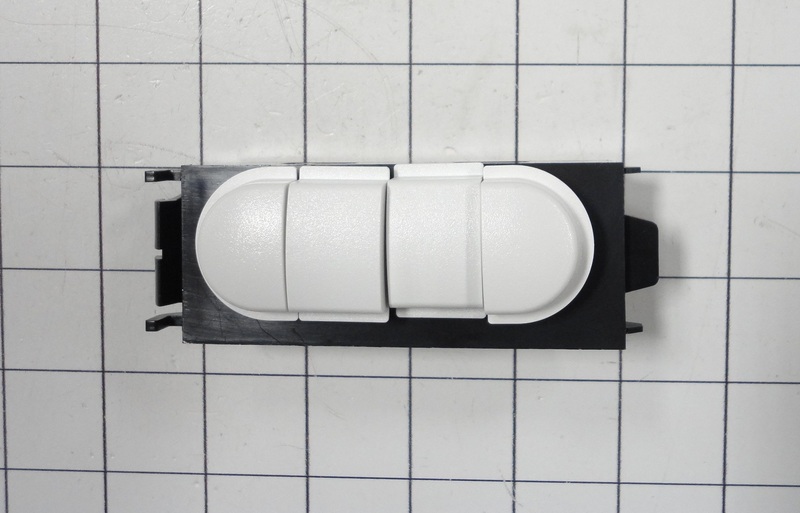

5	WP22002999	Switch (4 Button Temp) (wht) (Series: 10) (Replaces: 22002999)	$165.20  In-Stock Retail: $161.17
6	22003738	Harness, Wire (7580) (Series: 10)	$50.60 Special Order
7	22003736	Control Panel (wht) (Series: 10)	$47.70 Special Order
8	27001110	Console (wht) (Series: 10)	$39.70 Special Order
	WP489128	Screw (Series: 10)	$6.30 Special Order
9	22003461	Pad, Pressure Switch (Series: 10)	$0.30 Special Order
	22003489	Switch, Pressure (Series: 10)	$48.60 Special Order
10	22003739	Switch, 4 Button Option (wht) (Series: 10)	$32.40 Special Order
11	22003422	Hose, Air Dome (Series: 10)	Call for Availability
	22003422	Air Dome Hose (Series: 10)	$26.80 Special Order
12	22001788	Button, Switch (wht-end) (Series: 10)	$4.40 Special Order
	22001789	Button, Switch (wht-mdl) (Series: 10)	$4.40 Special Order

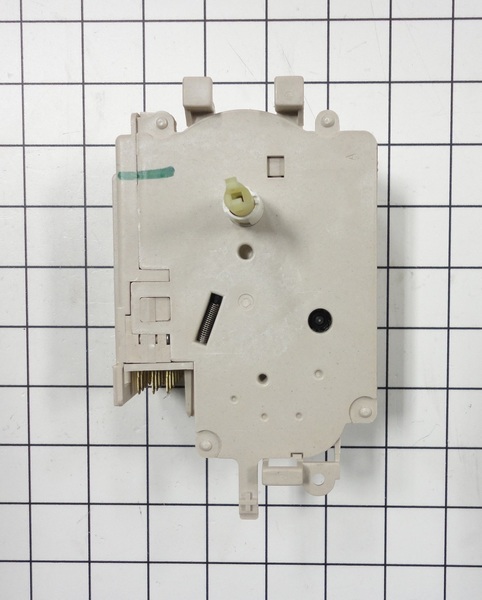

13	WP22003499	Timer Rpr (Series: 10) (Replaces: 22003499)	$216.50 Special Order
	WP22003499	Timer (Series: 10)	$216.50 Special Order
14	8534058	Screw (Series: 10)	$6.30 Special Order
	22002529	Console Back Panel (Series: 10)	$12.90 Special Order
15	22003003	Bracket, Atc / Timer (Series: 10)	$4.40 Special Order
16	22003743	Temp Control Board (Series: 10)	$82.00 Special Order
17	WP903115	Lock Light (Series: 10)	$4.50 Special Order
	WP22001948	Lens, Indicator Light (Series: 10) (Replaces: 22001948)	$7.30 Special Order
18	16009485	Manual, Service-no Refund (Series: 10)	Call for Availability
	22003745	Energy Guide (Series: 10)	Call for Availability
19	16022156	Use & Care Guide (Series: 10)	Call for Availability
20	20001120	Pliers, Qb Products Hose (Series: 10)	$28.40 Special Order
21	22002898	Tool, Seal Nut (Series: 10)   (Replaces: 22002898)	$6.20 Special Order
22	22002922	Tool, Spring Removal (Series: 10)   (Replaces: 22002922)	$8.60 Special Order
23	SHSW1	Spanner Wrench Basket Drive Hu (Series: 10)   (Replaces: 35-2968)	Call for Availability
