Maytag MAH4000AWQ Parts List

Popular Searches: (Click to search)    assy  belt  boot  clamp  conversion  door  drain  drive  hose  inch  kit  lip  motor  neptune  seal  spinner  support  svc  watt  wax


Select a Diagram

01 - Base

02 - Cabinet-front

03 - Cabinet-rear

04 - Control Panel

05 - Door & Front Panel

06 - Door Shroud & Door Latch Assembly

07 - Motor & Motor Control

08 - Outer Tub

09 - Spinner Assembly & Outer Tub Cover

10 - Top

11 - Wiring Information (series 10)

12 - Wiring Information (series 11)

13 - Wiring Information (series 45+)

Select Diagram ... 01 - Base 02 - Cabinet-front 03 - Cabinet-rear 04 - Control Panel 05 - Door & Front Panel 06 - Door Shroud & Door Latch Assembly 07 - Motor & Motor Control 08 - Outer Tub 09 - Spinner Assembly & Outer Tub Cover 10 - Top 11 - Wiring Information (series 10) 12 - Wiring Information (series 11) 13 - Wiring Information (series 45+)

10 - Top   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	22004181	Cover, Top (bsq-as Pk) (Series: 67)	$173.90 Special Order
	22002662	Cover, Top (bsq) (Series: 10)	$136.10 Special Order
2	WP489503	Clamp - 15/16`` (Series: 10)	$6.70 Special Order
3	22002614	Lid, Dispenser (bsq) (Series: 10)	$16.20 Special Order

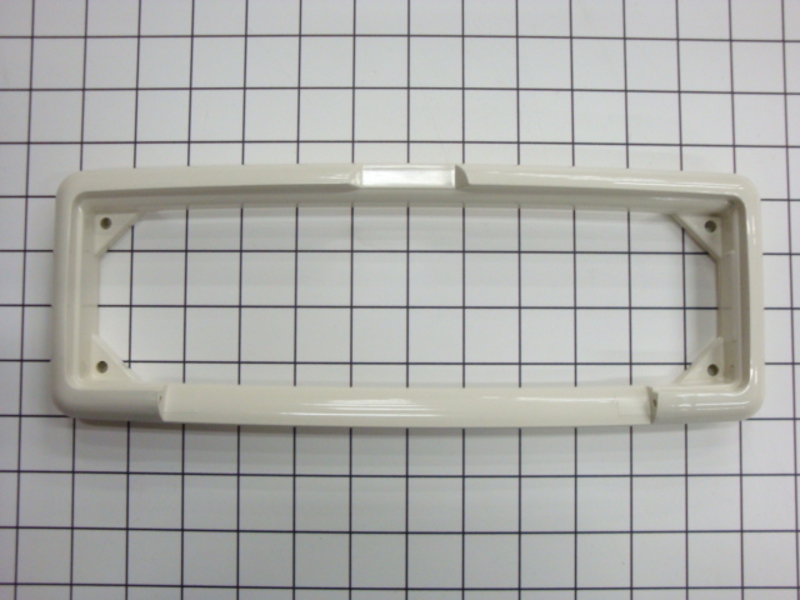

4	22002613	Bezel, Dispenser (bsq) (Series: 10)	$24.00  In-Stock Retail: $23.33
5	WP6-912678	Pin, Hinge (long) (Series: 10) (Replaces: Y912678)	$4.50  In-Stock Retail: $4.33
6	WPY912679	Pin, Hinge (short) (Series: 10) (Replaces: Y912679)	$2.90  In-Stock Retail: $2.80
7	WP400021-1	Screw, Dispenser Lid (Series: 58)	$6.30  In-Stock Retail: $6.13
	WP400021-1	Screw, Bezel (Series: 10) (Replaces: 22002060)	$6.30  In-Stock Retail: $6.13
8	WP285655	Clamp, Drain Hose (Series: 10)	$4.50  In-Stock Retail: $4.33
9	22002796	Cap (Series: 10)	$0.80 Special Order
	W10124350	Not Required Part Or See Note (Series: 58)	Call for Availability
10	22002555	Flume, Dispenser (Series: 10)	$31.10 Special Order
	22003322	Top, Dispenser (flume) (Series: 58)	Call for Availability
11	WP90767	Screw (Series: 10)	$4.50  In-Stock Retail: $4.33
	WP74007164	Wire Tie, Twist Lock (Series: 10)	$5.50 Special Order
12	WP22003062	Cord, Power (Series: 10)	$83.40 Special Order
13	211881	Grommet, Cord (Series: 10)	$4.40 Special Order
14	WP489128	Screw (Series: 10)	$6.30 Special Order
15	22002551	Hose, Bleach (Series: 10)	$18.20 Special Order
16	22002552	Hose, Fabric Softener----na (Series: 10)	$5.70 Special Order
17	22002553	Hose, Detergent (Series: 10)	$4.40 Special Order
	22003457	Hose, Detergent (Series: 58)	Call for Availability
18	22003723	Bottom, Dispenser (Series: 58)	Call for Availability
	12001558	Dispenser Bottom (Series: 10)	$35.10 Special Order
19	22002266	Cap, Siphon (Series: 10)	$28.50 Special Order
20	WP22002265	Cup, Siphon (Series: 10)	$19.70 Special Order
