Frigidaire GLD2445RFB1 Parts List

Popular Searches: (Click to search)    assy  bottom  corner  door  drain  gasket  heater  hose  johnson  linkage  motor  pump  ring  round  settable  spring  tub  valve  0  water


Select a Diagram

02 - Control Panel

03 - Door

04 - Tub

05 - Motor & Pump

06 - Frame

07 - Racks

01 - Cover Sheet

Select Diagram ... 02 - Control Panel 03 - Door 04 - Tub 05 - Motor & Pump 06 - Frame 07 - Racks 01 - Cover Sheet

02 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	154662503	Panel, Control, Black	$125.40 Special Order

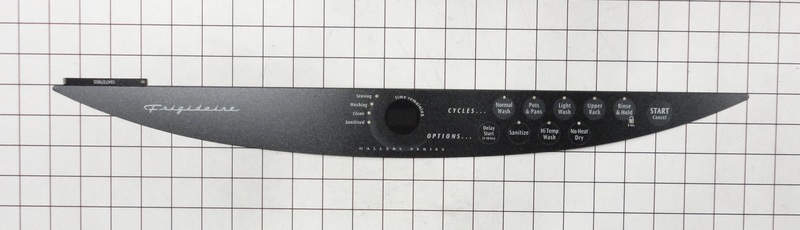

2	154721903	Insert, Control Panel, Black	$29.40 Special Order
3	154663004	Board, Control   (Replaces: 154596504)	$201.50 Special Order
4	154554601	Cover, Control	$23.10 Special Order
8	154474601	Switch, Selector, 10 Pad	$208.50 Special Order
8A	154486201	Shield, Tactile Switch	$34.10 Special Order
20	154423601	Vent Assy, Active Dry, W/actuator	$143.50 Special Order
27	154433501	Actuator, Active Dry Vent	$143.50 Special Order
28	154474401	Adapter, Vent	$36.40 Special Order
NI	154294701	Screw, #7 Plas .375, (6), Disp. Assy.	$6.70  In-Stock Retail: $6.49
	154646001	Wiring Harness, Main	Call for Availability
	154678508	Energy Guide Label	Call for Availability
	154409401	Screw, #8-18 X .375	$2.10 Special Order
NIA	154436201	Screw, Dry Duct, (3)	$5.20 Special Order
	154478901	Gasket, Cover	$44.60 Special Order
