Whirlpool IGD4400TQ0 Parts List

Popular Searches: (Click to search)    assembly  belt  coil  door  drive  dryer  fuse  ignitor  kit  main  motor  pilot  position  repair  roller  split  support  switch  terminal  thermal


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - 8318272 Burner Assembly, Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - 8318272 Burner Assembly, Optional Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	677818L	Manual, Do-it- Yourself Repair (dryer)	$29.40 Special Order
	W10088971	Instructions, Installation	Call for Availability
	W10042990	Sheet, Cycle Feature	Call for Availability
	8578202	Use & Care Guide	Call for Availability
	8576817	Wiring Diagram	Call for Availability
2	3400859	Screw, 8-18 X 7/32	$8.20 Special Order
3	WP3394427	Clip, Harness	$4.50 Special Order
4	8579674	Cap, End (l.h.)	$27.20 Special Order
5	3397269	Connector, Timer	$16.90 Special Order
6	W10110066	Knob, Push-to-start	$64.90 Special Order
7	3395683	Housing, Connector (motor)	$31.90 Special Order
8	8579673	Cap, End (r.h.)	$26.80 Special Order
9	WP694419	Buzzer, Mini   (Replaces: 694419)	$75.90  In-Stock Retail: $73.98
10	WPW10717210	Screen, Lint (Replaces: W10641634 8558463)	$41.70  In-Stock Retail: $40.66
11	WP8312709	Spring-clip Knob   (Replaces: 8312709)	$11.80  In-Stock Retail: $11.43
13	W11693756	Screw, 8-18 X 5/8	$8.20 Special Order
14	WP8536939	Clip, Spring (Replaces: 8536939)	$4.50  In-Stock Retail: $4.33
15	WP693995	Screw, Hex Head   (Replaces: 693995)	$4.50  In-Stock Retail: $4.33
16	WP8563663	Top	$177.40 Special Order
17	3401684	Wire, Jumper (black)	$27.60 Special Order
18	WP3399639	Switch, Temperature (Replaces: 3399639)	$77.10  In-Stock Retail: $75.20
19	W10103406	Panel, Rear Console	$73.20 Special Order
20	3391249	Tie, Cable	$5.80 Special Order
21	WP8299765	Timer (Replaces: 8299765)	$214.90  In-Stock Retail: $204.58
22	WP3403499	Connector, 2-position Gas Valve	$4.50 Special Order
23	WP3403498	Connector, 3-position (gas Valve)	$4.50 Special Order
24	WP90767	Screw,8-18 X 5/16	$4.50  In-Stock Retail: $4.33
25	8299878	Harness, Wiring	$228.10 Special Order
26	8539893	Wire-jumper Assembly (temperature)	$12.10 Special Order
27	WP3398095	Switch, Push-to-start   (Replaces: 3398095)	$70.60  In-Stock Retail: $68.82
28	3401144	Connector, (pts Relay)	$7.80 Special Order
29	W10110064	Timer-knob Assembly	$24.80 Special Order

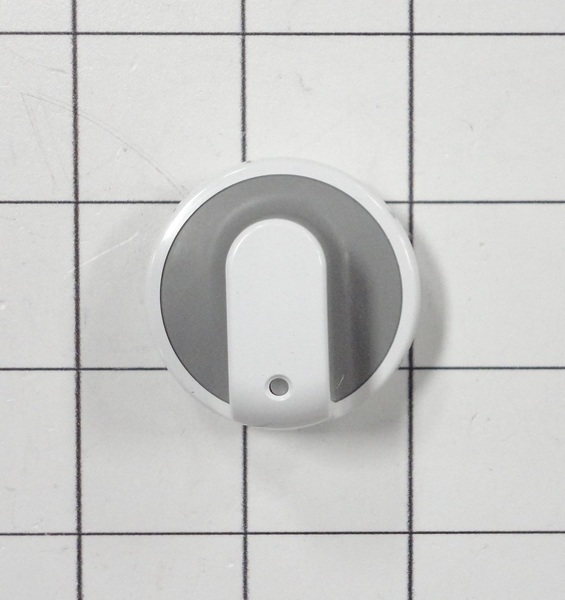

30	WPW10110063	Knob, Control	$32.60 Special Order
31	717252	Receptacle, 2 Way	$4.40 Special Order
32	3347243	Connector 6-circuit	$35.50 Special Order
33	WP94614	Terminal (female)	$4.50 Special Order
34	8579672	Bracket, Control	$8.80 Special Order
35	W10114902	Panel, Control	$112.50 Special Order
36	3936144	Connector	$13.00 Special Order
