Maytag LDE7334ACL Parts List

Popular Searches: (Click to search)    assembly  assy  bearing  blower  clamp  door  filter  housing  idler  kit  lint  motor  pulley  retaining  ring  roller  seal  shaft  switch  tumbler


Select a Diagram

01 - Cabinet-front

02 - Cabinet-rear

03 - Control Panel

04 - Door

05 - Heater

06 - Motor Drive

07 - Tumbler

08 - Wiring Information-lde7334acx

Select Diagram ... 01 - Cabinet-front 02 - Cabinet-rear 03 - Control Panel 04 - Door 05 - Heater 06 - Motor Drive 07 - Tumbler 08 - Wiring Information-lde7334acx

03 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	214872	Palnut, End Cap (Series: A0)	Call for Availability
2	33001237	Plate, Support (Series: A0)	Call for Availability
3	210932	Screw,ctrl.pnl & End Cap(blk) (Series: A0)	$4.40 Special Order
4	22001290	End Cap, Ctrl. Pnl. (rt-blk) (Series: A0)	$4.30  In-Stock Retail: $4.17
	22001288	End Cap, Ctrl. Pnl. (lt-blk) (Series: A0)	$4.30  In-Stock Retail: $4.17
5	214894	Fastener, End Cap (Series: A0)	$4.40 Special Order
6	33001099	Panel, Control (blk) (Series: A0)	Call for Availability
7	33001182	Skirt, Timer Dial (blk) (Series: A0)	Call for Availability
8	315041	Knob, Timer (Series: A0)	$21.10 Special Order
9	W10155650	Nut (Series: A0)	$8.20 Special Order

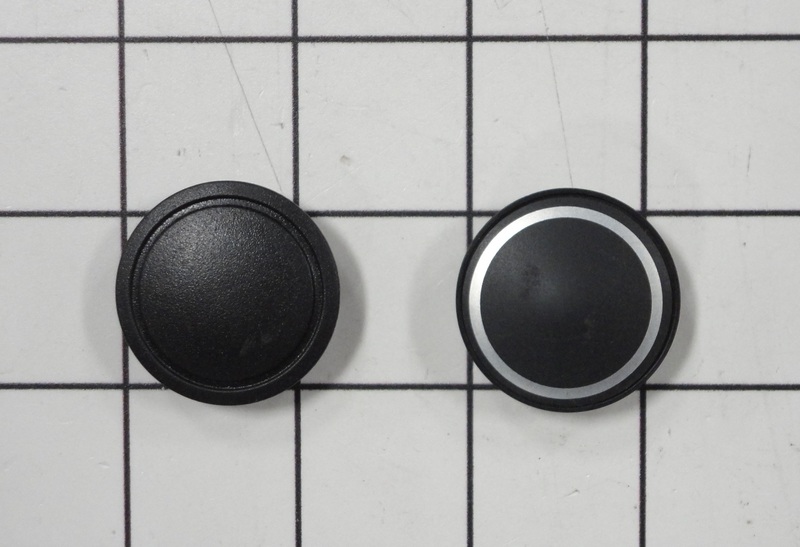

10	12001119	Cap, Timer Knob (blk) (Series: A0)	$5.20 Special Order
11	33001184	Button (blk) (Series: A0)	Call for Availability
12	214897	Pad, Control Panel (Series: A0)	$27.00 Special Order
13	WP488234	Screw, Switches (Series: A0)	$4.40 Special Order
14	WPY308254	Timer (Series: A0)   (Replaces: Y308254)	$205.90 Special Order
15	WPY308254	Timer (Series: A0)   (Replaces: Y308254)	$205.90 Special Order
16	204807	Grnd.wire,supp.plte To Top Cvr (Series: A0)	$4.40 Special Order
17	WP488234	Screw, Switches (Series: A0)	$4.40 Special Order
18	Y308205	Buzzer (Series: A0)	Call for Availability
19	WP488234	Screw, Switches (Series: A0)	$4.40 Special Order
20	33001232	Switch, Push To Start (Series: A0)	Call for Availability
21	33001537	Harness, Wire (Series: 16)	$47.70 Special Order
	33001341	Wire Harness, Main (Series: A1)	Call for Availability
	33001127	Harness, Wire (Series: A0)	$42.80 Special Order
22	22001267	Knob, Selector Switch (blk) (Series: A0)	$48.70 Special Order
23	33001226	Switch, Temp. (4 Positions) (Series: A0)	Call for Availability
24	WP7730P011-60	Lens, Indicator Light (Series: A0)   (Replaces: 22001215)	$3.30 Special Order
25	33001224	Light, Indicator (Series: A0)	$2.70 Special Order
26	33001104	Resistor (med. Temp) (Series: A0)	$4.40 Special Order
27	33001256	Manual, Use & Care (Series: A0)	$6.20 Special Order
	16000327	Guide, Quick Ref. - Maytag (Series: A0)	Call for Availability
