Maytag LDE7304AGM Parts List

Popular Searches: (Click to search)    arm  assembly  assy  bearing  blower  clamp  door  filter  housing  idler  kit  lint  pulley  retaining  ring  roller  seal  shaft  switch  tumbler


Select a Diagram

01 - Cabinet-front (lde7304agm & Ldg7304agm)

02 - Cabinet-rear (lde7304agm & Ldg7304agm)

03 - Control Panel (lde7304agm & Ldg7304agm)

04 - Door (lde7304agm & Ldg7304agm)

05 - Heater

06 - Motor Drive (lde7304agm & Ldg7304agm)

07 - Tumbler (lde7804agm & Ldg7804agm)

Select Diagram ... 01 - Cabinet-front (lde7304agm & Ldg7304agm) 02 - Cabinet-rear (lde7304agm & Ldg7304agm) 03 - Control Panel (lde7304agm & Ldg7304agm) 04 - Door (lde7304agm & Ldg7304agm) 05 - Heater 06 - Motor Drive (lde7304agm & Ldg7304agm) 07 - Tumbler (lde7804agm & Ldg7804agm)

05 - Heater   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP90767	Screw (Series: A0)	$4.50  In-Stock Retail: $4.33
2	308503	Inlet Duct Assy. (Series: A0)	$24.90 Special Order
3	314995	Heater Enclosure (Series: A0)	$21.10 Special Order
4	315346	Bracket, Thermal Fuse (Series: A0)	$4.40 Special Order
5	WP90767	Screw (Series: A0)	$4.50  In-Stock Retail: $4.33
6	WP307473	Fuse, Thermal (Series: A0) (Replaces: 307473)	$34.30  In-Stock Retail: $33.46
7	314998	Insulator, Terminal (Series: A0)	$13.00 Special Order

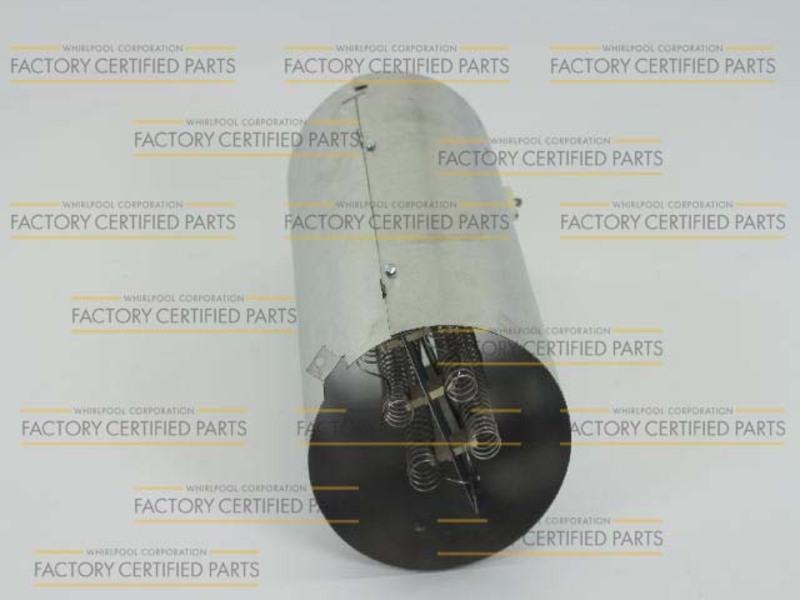

8	WPY308615	Heater Sub-assembly (Series: A0)	$209.60 Special Order
9	314999	Shield, Radiant (Series: A0)	$18.40 Special Order
10	314554	Screw (Series: A0)	Call for Availability
11	308217	Thermostat,hi-limit(canada) (Series: A0)	$39.70 Special Order
12	WP33001400	Heater Assembly (240-50) (Series: A0)	Call for Availability
13	WPY307173	Wire, Jumper (Series: A0) (Replaces: Y307173)	$4.50  In-Stock Retail: $4.33
