03 - Upper Drawer Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10270484	Drawer Box Assy.	$311.50 Special Order
2	W10204698	Top Mat	$171.50 Special Order
3	W10270486	Drawer Partition	$161.00 Special Order
4	WPW10233777	Rail Assy.	$188.30 Special Order
5	WPW10204700	Gasket	$164.70 Special Order
6	W10204701	Top Door Assy.	$186.90 Special Order
7	W10204808	Screw	$44.40 Special Order
8	W10204809	Screw	$44.60 Special Order
9	W10204810	Screw	$44.60 Special Order
10	W10292467	Top Wrap	$259.40 Special Order
11	W10837731	Screw	$4.50  In-Stock Retail: $4.33
12	W10299088	Plate, Door Handle	$47.20 Special Order
13	W10292468	Screw	$8.70 Special Order
14	W10204867	Wrap Spacer	$68.40 Special Order
15	W10204868	Wrap Gap Spacer	$15.50 Special Order

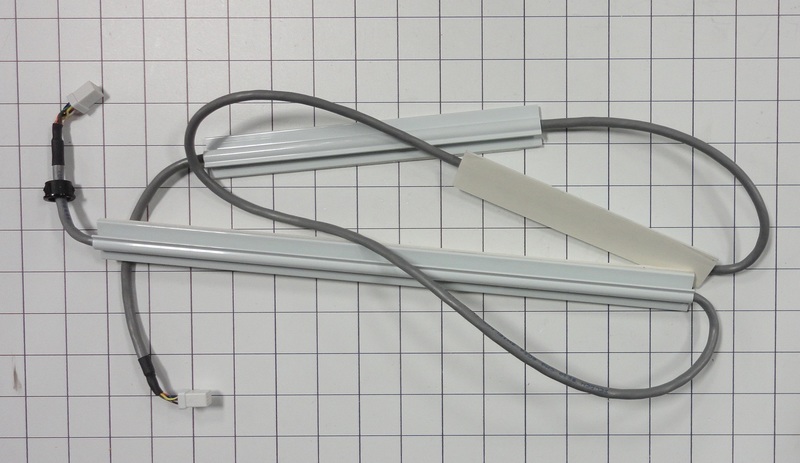

16	W10488357	Indicator Harness	$204.90  In-Stock Retail: $199.86
17	W10204885	Lead Wire Support	$32.90 Special Order
18	WPW10281592	Control Panel Assy	$480.60 Special Order
19	WPW10234622	Bar, Handle	$148.90 Special Order
20	W10204920	Nut	$44.40 Special Order
21	W10204889	Door Gasket, Long	$61.70 Special Order
22	W10204897	Door Gasket, Short	$68.60 Special Order
23	W10205081	Wire Support Tape	$33.50  In-Stock Retail: $32.64
24	W10281502	Control Panel	$54.90 Special Order
25	W10281594	Label, Panel	$67.70 Special Order
26	W10204929	Lamp Cover	$49.50 Special Order
27	W10204930	Led Lamp	$194.50 Special Order
28	W10204931	Lamp Holder	$44.40 Special Order

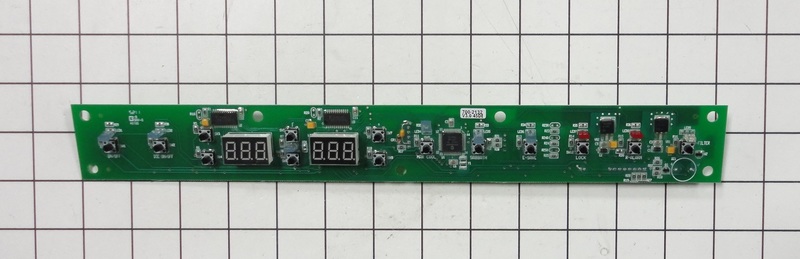

29	WPW10281540	Display Pcb Assy. (Replaces: W10281540)	$400.70  In-Stock Retail: $390.85

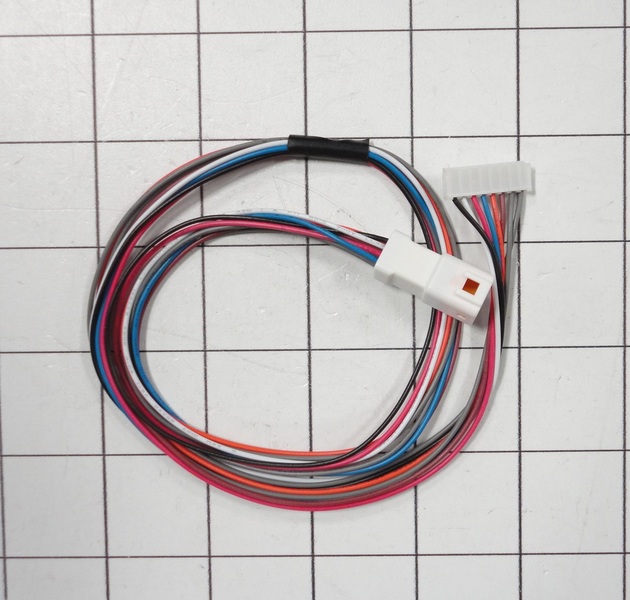

30	W10204933	Pcb Harness	$92.80 Special Order
31	W10304194	Lamp Harness	$77.70 Special Order
32	W10204935	Screw	$32.50 Special Order
33	W10204936	Panel Insulation	$29.70 Special Order
34	W10204937	Panel Insulation B	$44.40 Special Order
35	W10056279	Stud, Handle Bar	$48.70 Special Order
36	W10287957	Seal, Cold Air	$50.90 Special Order
37	W10304205	Insulation, Basket	$67.30 Special Order
