Maytag JGC8430BDW Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    15k  assembly  base  burner  chr  holder  ignitor  knob  lrg  module  orifice  pressure  regulator  screw  small  spark  switch  tube


Select a Diagram


01 - Body   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 4011F509-51 Box, Burner (Series: 13) $92.10
Special Order
74009546 Bottom, Burner Box (Series: 10) $52.90
Special Order
2 74009545 Bracket, Orifice Holder (Series: 10) $32.10
Special Order
3 74006339 Bracket, Holddown (Series: 10) $8.70
Special Order
4 74009564 Tape, Adhesive (1`` X 1 13/16``) (Series: 10) $4.40
Special Order
5 74007997 Pipe Manifold/valve Assembly (Series: 10) $144.00
Special Order
6 74007768 Panel, Module (Series: 10) $4.40
Special Order
7 WPW10475147 WPW10475147 Module, Spark (Series: 10)
(Replaces: W10475147 71002783) 		$239.90
 In-Stock
Retail: $233.98
8 74005933 Cover, Spark Module (Series: 10) Call for Availability
9 W11087445 W11087445 Regulator, Pressure (Series: 10) $186.90
 In-Stock
Retail: $182.27
10 74007755 Tube, Burner (lf) (Series: 10) $25.70
Special Order
11 74007756 Tube, Burner (lr) (Series: 10) $46.20
Special Order
12 74007757 Tube, Burner (rf) (Series: 10) $31.40
Special Order
13 74007758 Tube, Burner (rr) (Series: 10) $25.70
Special Order
14 WP74007774 WP74007774 Switch, Burner (rt) (Series: 10)
(Replaces: 74007774) 		$74.40
Special Order

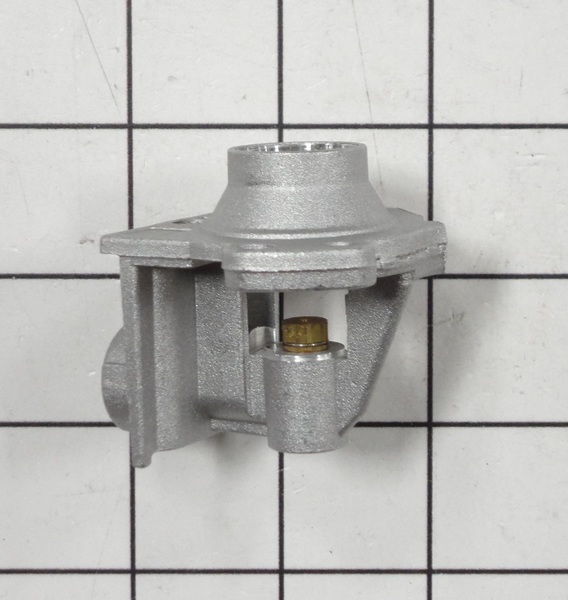

15 WP7527P033-60 WP7527P033-60 Holder, Orifice (10.5k) (Series: 10) $43.30
Special Order
WP7527P004-60 WP7527P004-60 Holder, Orifice (15k) (Series: 10)
(Replaces: 7527P004-60 74007766) 		$48.20
 In-Stock
Retail: $46.93
WP7527P002-60 WP7527P002-60 Holder, Orifice (9.2k) (Series: 10)
(Replaces: 7527P002-60 74007764) 		$48.20
Special Order
74009553 Holder, Orifice (5k) (Series: 10) $44.00
 In-Stock
Retail: $42.85
16 WP90767 Screw (Series: 10) $4.50
 In-Stock
Retail: $4.33
17 8007P003-60 Bushing - Strain Relief (Series: 10) $4.40
Special Order
18 74007817 Cord, Power (Series: 10) $12.90
Special Order

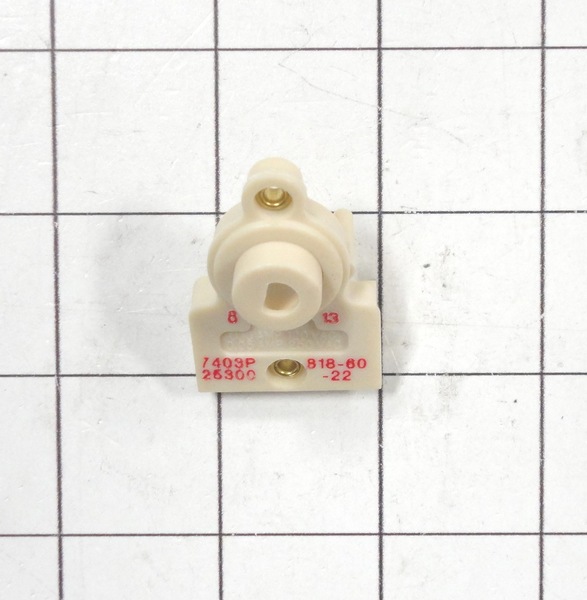

19 WP74007753 WP74007753 Switch, Burner (lt) (Series: 10)
(Replaces: 74007753) 		$73.60
Special Order
