03 - Control Panel/top Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	74011920	Bkgd Panel/switch Asy (stl) (Series: 10)	$252.50 Special Order
2	3801F945-51	Bracket, Control (Series: 10)	$54.80 Special Order
	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.20  In-Stock Retail: $7.99
3	74008898	Element, Warming (Series: 10)	$57.50 Special Order
4	WP74004153	Light, Indicator (Series: 10)   (Replaces: 74004153)	$4.50 Special Order
5	WP7730P011-60	Lens, Indicator Light (Series: 10)	$3.30 Special Order
6	WP7403P238-60	Switch, Infinite (sml Element) (Series: 10) (Replaces: 7403P238-60)	$40.00  In-Stock Retail: $56.27
7	74011983	Control (Series: 10)	$313.30 Special Order
	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.20  In-Stock Retail: $7.99
8	74009022	End Cap (rt-blk) (Series: 10)	$25.70 Special Order
9	74009023	End Cap (lt-blk) (Series: 10)	$30.80 Special Order
10	74009444	Shield, Vent (Series: 10)	$15.90 Special Order
11	74009202	Shield, Heat Visor (blk) (Series: 10)	$11.10 Special Order
12	4005F804-51	Cover, Rear Wire (Series: 10)	$32.20 Special Order

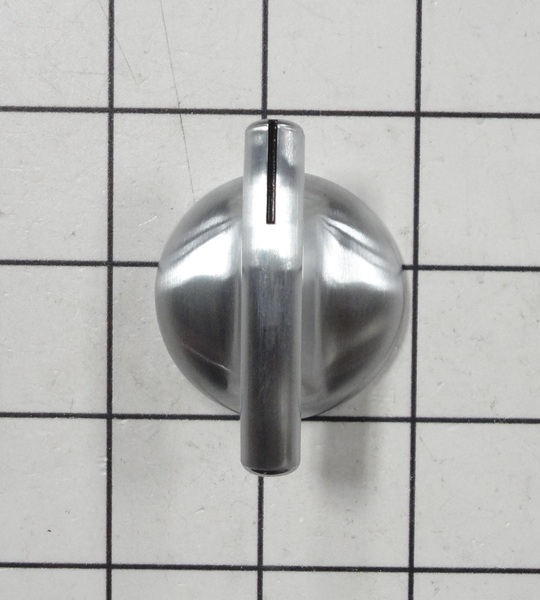

13	WP74008921	Knob (Series: 10)	$12.10  In-Stock Retail: $11.71
14	WP7101P309-60	Screw (Series: 10)	$4.50 Special Order
15	W11233072	Screw (8ab1/2-ni) (Series: 10)	$8.20  In-Stock Retail: $7.99
16	5706M613-09	Top Assembly (blk) (Series: 10)	$293.90 Special Order
17	WP74010824	Switch, Element (lrg) (Series: 10)	$88.80 Special Order
18	W10823711	Element (1200w) (Series: 10) (Replaces: 12002141 74008568)	$196.40  In-Stock Retail: $191.60
19	74009538	Screw (zinc) (Series: 10)	$13.00 Special Order
20	74008900	Bottom, Burner Box (Series: 10)	$25.80 Special Order
21	74007134	Spring, Element Support (Series: 10)	$7.20 Special Order
22	74008761	Spacer, Snap-in (Series: 10)	$5.40 Special Order
23	W10823692	Element, Dual (2400w) (Series: 10)	$196.40  In-Stock Retail: $191.60
