Whirlpool GEW9250SU0 Parts List

Popular Searches: (Click to search)    assembly  belt  bracket  door  drive  drum  fuse  idler  motor  paint  pressurized  pulley  roller  seal  spray  strike  support  thermal  thermistor  white


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - Door Parts, Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - Door Parts, Optional Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8558722	Tech Sheet	Call for Availability
	W10049540	Use & Care Guide	Call for Availability
	8563723	Guide, Quick Start	Call for Availability
2	W10117271	Top (silver)   (Replaces: 8579115)	$102.30 Special Order
3	8529983	Harness, Main	$109.50 Special Order

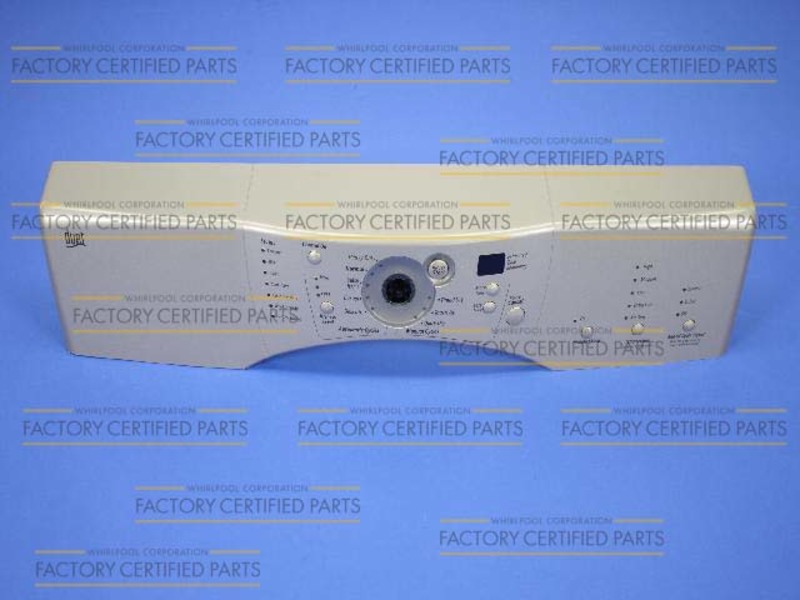

4	8579111	Panel, Console (silver)	$281.60 Special Order
5	WP3394427	Clip, Harness	$4.50 Special Order
6	8519271	Bracket, Console	$38.10 Special Order
7	353424	Connector, Sensor	$13.00 Special Order
8	WP94614	Terminal (female)	$4.50 Special Order
9	3936144	Plug, Terminal	$13.00 Special Order
10	WP596797	Terminal	$4.50 Special Order
11	WP488729	Screw, 8-18 X 1/2	$4.50  In-Stock Retail: $4.33
12	WP488787	Screw, (8-18 X 1/2)	$6.30  In-Stock Retail: $6.13
13	8519406	Bezel, Cycle	$31.70 Special Order
14	3936150	Connector, 7-circuit	$50.90 Special Order
15	3395683	Connector (motor)	$31.90 Special Order
16	8281225	Screw, 8-18 X 1/2	$4.40 Special Order
17	2203186	Connector, 5-circuit	$7.90 Special Order
18	8183004	Knob, Assembly (silver)	Call for Availability
19	W10128437	User Interface (silver)   (Replaces: 8559431)	$177.20 Special Order
20	8561811	Button, Start	Call for Availability
21	8561812	Button, Pause/cancel	$26.10 Special Order
