Maytag 31FK-10KXS-ON Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    bulb  burner  cap  module  oven  spark  switch  top


Select a Diagram


01 - Body   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 4002F068-20 Back, Main (Series: 01) Call for Availability
4002F124-45 Back, Broiler (Series: 37) Call for Availability
4002F078-45 Back, Broiler (Series: 01) Call for Availability
2 3601W124-23 Baffle, Oven Frt (Series: 01) Call for Availability
3 7401P037-60 7401P037-60 Block, Terminal (Series: 01) $21.30
Special Order
7401P006-60 Block, Disconnect (Series: 01) Call for Availability
4 4011F097-20 Bottom, Broiler (Series: 01) Call for Availability
5 4011F095-80 Bottom, Burner Box (Series: 01) Call for Availability
6 2205F012-24 Bottom, Oven (Series: 01) Call for Availability
7 4006W026-80 Box, Flue (Series: 01) Call for Availability
3805F002-34 Clamp (Series: 01) $4.40
Special Order
3801F020-45 Bracket (Series: 01) Call for Availability
3801F047-34 Bracket,control Panel (r) (Series: 01) $3.10
Special Order
3801F049-34 Bracket,control Panel (l) (Series: 01) Call for Availability
3801F101-80 Bracket, Tie Down (Series: 01) Call for Availability
8 7112P019-60 7112P019-60 Clip, Hinge Pin (Series: 01) $4.40
Special Order
7112P073-60 Clip, Top Retainer (Series: 01) $4.40
Special Order
WP7112P004-60 WP7112P004-60 Clip, Thermostat (Series: 01) $7.10
Special Order
9 2201F034-25 Front, Frame Oven Lower (Series: 01) Call for Availability
10 2201F032-23 Front, Frame Oven (Series: 01) Call for Availability
11 4012F019-20 Front, Burner Box (Series: 01) Call for Availability

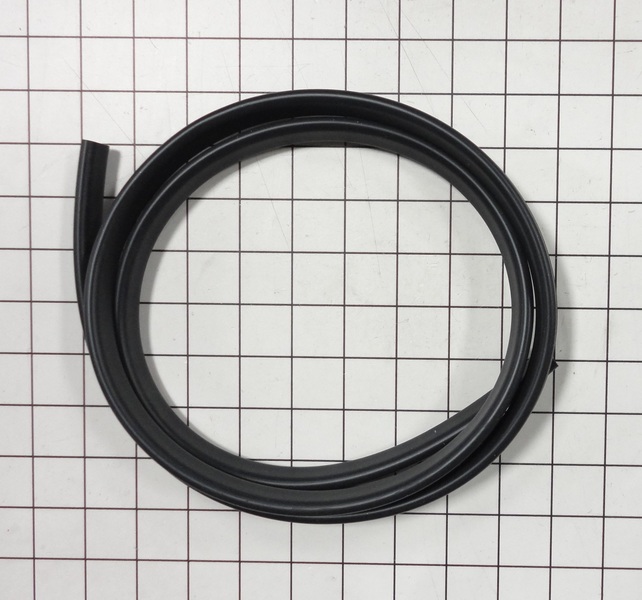

7212P001-60 7212P001-60 Seal (Series: 01) $59.20
Special Order
12 W11400301 W11400301 Grate (Series: 01) $94.60
Special Order
13 3418A029-34 3418A029-34 Hinge, Oven Door (lt) (Series: 01) $37.50
Special Order
4396923 4396923 Insert (Series: 01) $32.80
 In-Stock
Retail: $32.79
3418A030-34 3418A030-34 Hinge, Oven Door (rt) (Series: 01) $19.90
Special Order
14 8009 8009 Bulb, Oven (Series: 01)
(Replaces: 707319 7407P026-60) 		$20.00
 In-Stock
Retail: $19.99
15 2404F016-23 Lining, Bro Side (Series: 01) Call for Availability
16 4009W028-20 Lining, Inner Side (Series: 01) Call for Availability
4396923 4396923 Pan, Broil (Series: 01) $32.80
 In-Stock
Retail: $32.79
17 2616F024-90 Panel, Manifold Black (Series: 24) Call for Availability
19 7113P002-60 7113P002-60 Pin, Hinge (Series: 01) $5.90
Special Order
20 WP7801P030-60 WP7801P030-60 Rack (Series: 01) $46.50
Special Order
21 7408P034-60 Receptacle, Lamp (Series: 01) $4.40
Special Order
22 7101P029-60 Screw, Special (Series: 01) $2.20
Special Order
23 4005F088-80 Cover (Series: 01) $24.40
Special Order
24 WP7803P058-60 WP7803P058-60 Spring (Series: 01)
(Replaces: 7803P055-60 7803P002-60) 		$9.50
 In-Stock
Retail: $9.21
25 3807F205-45 Support, Oven Rear (Series: 01) Call for Availability
26 3807F221-80 Support, Top Burner (Series: 01) Call for Availability
28 3404A001-51 Track (Series: 01) Call for Availability
3404A014-51 Track, Broiler Dwr Left (Series: 26) $24.00
Special Order
3404A013-51 3404A013-51 Track, Broiler Dwr Right (Series: 26) Call for Availability
29 12400044 Cord, Power (Series: 01) $24.60
Special Order
