Whirlpool GCA2701XSW0 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    and  center  complete  coupling  drive  gasket  hose  isolation  mixing  motor  paint  post  pressurized  pump  spray  spring  tub  valve  water  white


Select a Diagram


08 - Console   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 3348575 Panel, Console Call for Availability
2 3348576 Bracket, Control $32.90
Special Order
3 WP90767 Screw, 8a X 3/8   (Replaces: 90767) $4.50
 In-Stock
Retail: $4.33

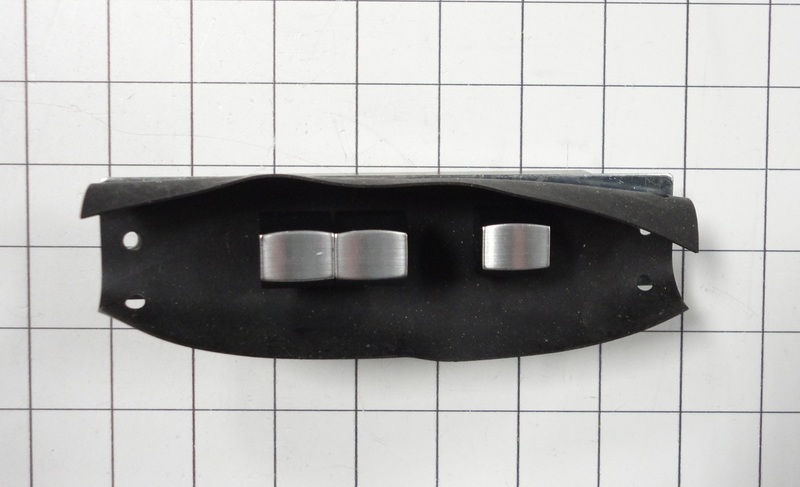

4 W10330142 W10330142 Switch, Cycle Selector
(Replaces: 389138)
$158.10
Special Order
5 WP965173 Screw, 8-18 X 3/8 $6.00
Special Order

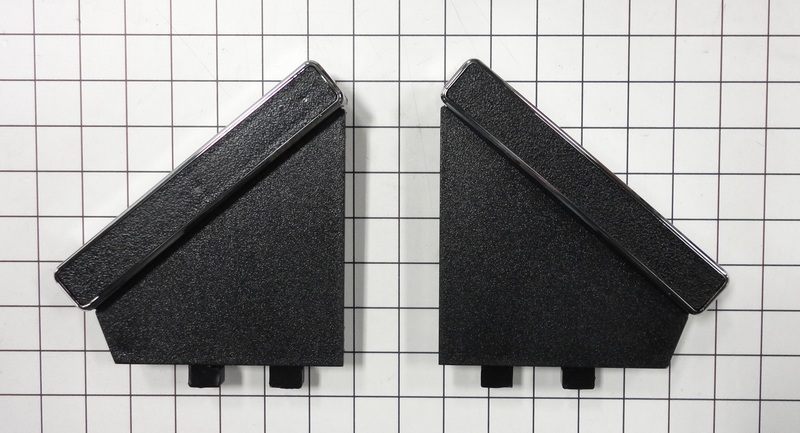

6 285653 285653 Cap, End. (r.h.) $42.70
Special Order
7 3348573 Bracket, Timer Call for Availability
8 3348443 Timer $187.00
Special Order
9 W10858647 Lights, Indicator $23.70
Special Order
10 WP3348109 Lens, Amber (2)   (Replaces: 3348109) $7.30
 In-Stock
Retail: $7.12

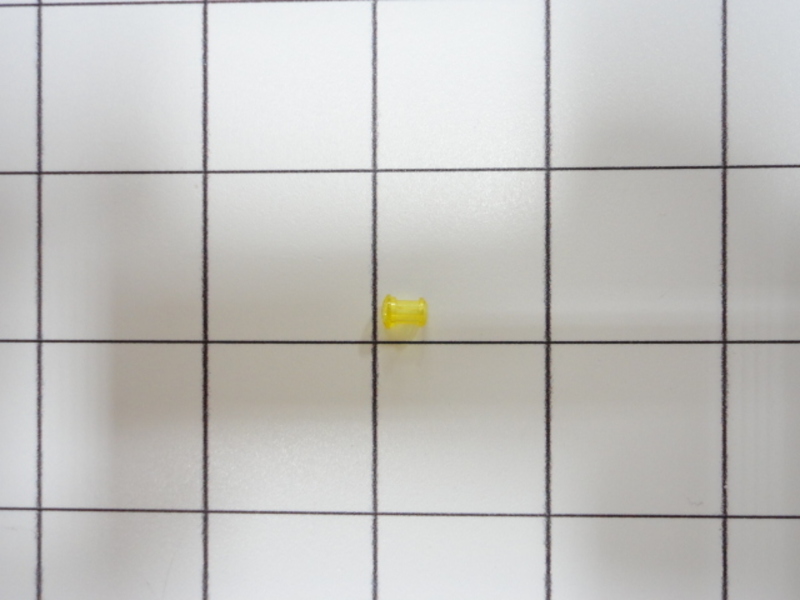

11 WP3348110 WP3348110 Lens, Yellow (1)
(Replaces: 3348110)
$4.50
Special Order
12 3348587 Pushbutton (3) $10.20
Special Order
13 WP356418 Screw (2) $4.50
Special Order
14 WP681414 Screw,10-16 X 1/2 $4.50
Special Order

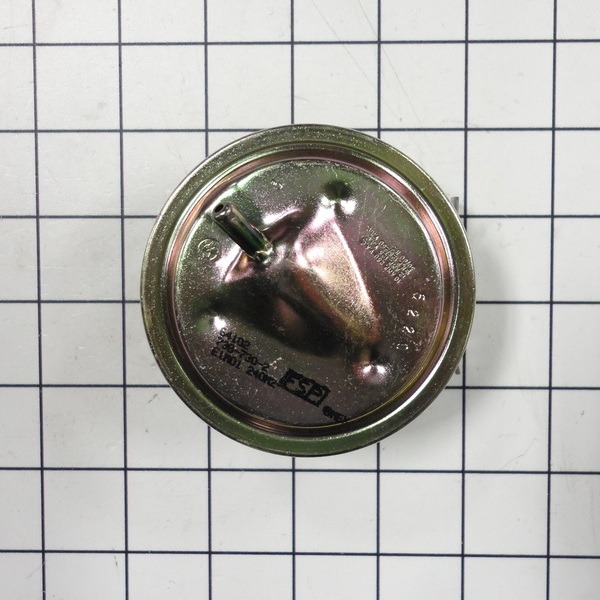

15 64102 64102 Switch, Water Level $54.40
Special Order
16 285653 285653 Cap, End (l.h.) $42.70
Special Order
17 WP689559 Nut, Push-in (2) $4.50
Special Order
18 355326 Screw, End Cap To Bracket (4) Call for Availability
19 WP8572717 WP8572717 Capacitor, Motor Start (mfd 189) (120 Volts)
(Replaces: 661606 357021)
$71.20
 In-Stock
Retail: $69.40
21 357030 357030 Clamp, Capacitor $13.00
Special Order
22 W10113937 Clip, Grounding $6.60
 In-Stock
Retail: $6.43
