Frigidaire FRS23ZTJW0 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    assy  blade  container  cube  defrost  fan  hour  ice  icemaker  instl  maker  min  motor  parts  radius  red  solenoid  timer  0  1


Select a Diagram


08 - I&w Dispenser   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 5308010366 5308010366 Tube-water Inlet, 0.25 Od X 93``, Plastic $11.80
Special Order
2 218505301 Deflector-ice Disp, White $20.20
Special Order
3 215484300 Heater-door Housing $27.60
Special Order
4 218852401 Housing-dispenser,white Call for Availability
7 218284800 Switch-actuator,micro $58.60
Special Order
8 218874901 Module-dispenser $41.00
Special Order

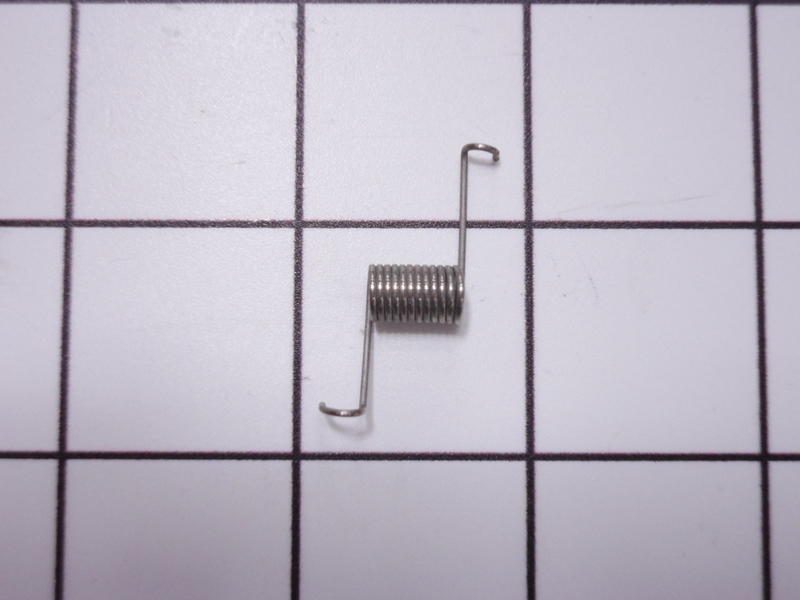

10 5304401779 5304401779 Spring,dispenser Door
(Replaces: 218209800) 		$42.60
Special Order
12 218836203 Knob-selector,white   (Replaces: 218836201) Call for Availability
218925501 Spring-knob $15.40
Special Order
218925401 Knob-selector,white $25.80
Special Order
14 218903730 Label-module Cover,white $43.80
Special Order
15 5304506475 5304506475 Light Bulb / Lamp, 4w, 115v
(Replaces: 218284900) 		$25.40
Special Order
16 215284900 Socket-light/lamp $43.10
Special Order
17 215794400 Screw,6 X 1/4 $11.30
Special Order
17B 215923400 Washer-flat $2.90
Special Order
17A 215840700 Screw,truss Head,6-20 X 3/8 $1.20
Special Order

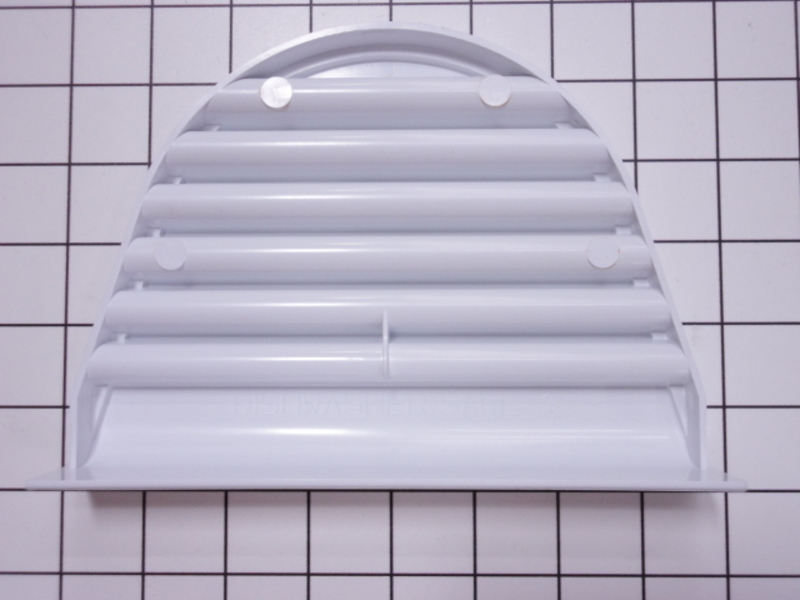

23 5303297844 5303297844 Drip Tray,white $48.70
Special Order
24 218921303 Actuator,white   (Replaces: 218921301) Call for Availability
26 215503203 215503203 Screw,cr Pan Hd `10-16 X 0.500
(Replaces: 215503200) 		$5.20
 In-Stock
Retail: $4.99
27 218432600 Cam-slide $39.20
Special Order
218814901 Rocker-switch $31.10
Special Order
28 218906205 Cover-module,white   (Replaces: 218906201) $18.00
Special Order
30 5304402125 Door Assy-ice Chute, W/gasket, Insul   (Replaces: 215753600) $3.80
Special Order
33 218870201 Heater-disp Throat $176.80
Special Order
35 218740005 Heat Motor,115 V $29.80
Special Order
36 218906001 Cover-selector Sw $18.70
Special Order
38 241689106 241689106 Switch-micro,single Pole ,single Throw
(Replaces: 218835401) 		$5.70
 In-Stock
Retail: $5.49
218905901 Pc Board $34.70
Special Order
218479900 Switch-micro,single Pole ,double Throw $41.90
Special Order
39 218284600 Wire-ice Door $50.70
Special Order

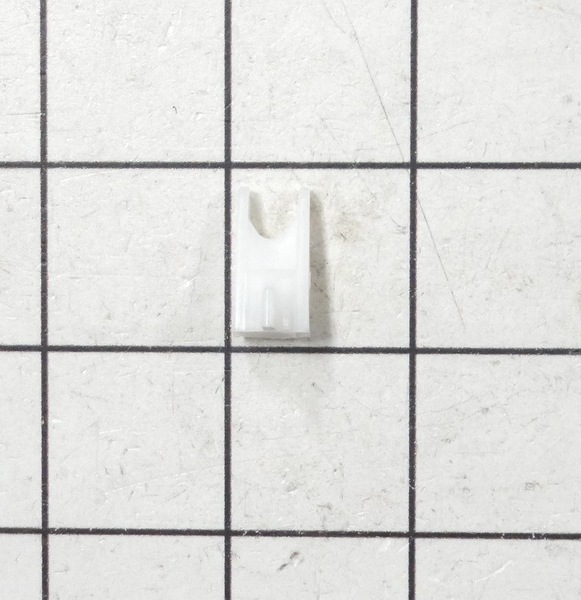

40 218284500 218284500 Yoke-heat Motor $25.30
Special Order
41 215917800 Spring-actuator $7.10
Special Order
43 215760300 Screw,4 X 3/8 $6.60
Special Order
49 215794000 Bracket-heat Motor $22.20
Special Order
56 218927401 Screw,pan Head ,4-24 X 1.125 ,microswitch Mtg $3.40
Special Order
218434300 Screw-micro Switch, Pan Head, 4-24 X 9/16 $2.70
Special Order
82 5304455699 Screw,plask H/l,6 X 3/8   (Replaces: 215296300) $10.30
Special Order
84 218906401 Switch-membrane $39.20
Special Order

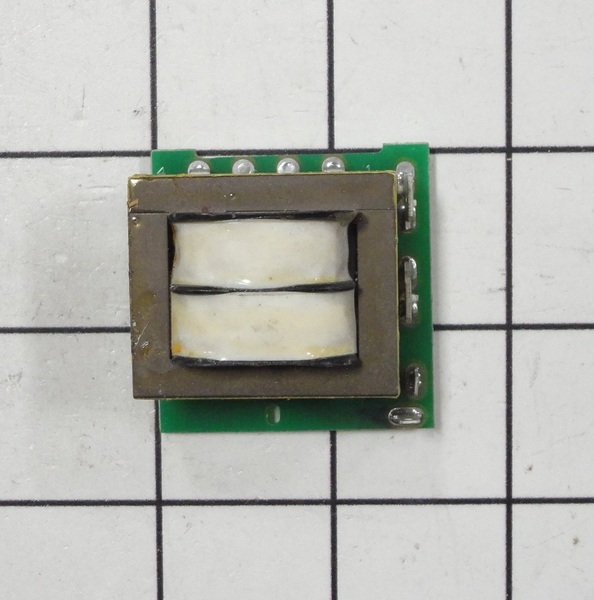

85 218948201 218948201 Transformer-dispenser $124.10
Special Order
*83287 218832301 Tube-water Inlet,inlet Valve ,to Filter $198.40
Special Order
*83288 218859901 Tube-water Inlet,inlet Valve ,to Filter $139.20
Special Order
*83289 218949201 Tube-water Inlet,formed ,plastic ,dispenser Call for Availability
*83290 215781700 Clip-tube $15.50
Special Order
*83291 218863111 Wiring Harness,disp $63.60
Special Order
*83292 5303001083 Screw,tw Hx Cr Pan Hd ,8-16 X 0.500 $3.60
Special Order
