Frigidaire FGFL67HBC Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    assy  black  burner  conversion  front  harness  ignitor  igntr  instructions  kit  mtg  orifice  oven  probe  screw  switch  temp  top  valve  wiring


Select a Diagram

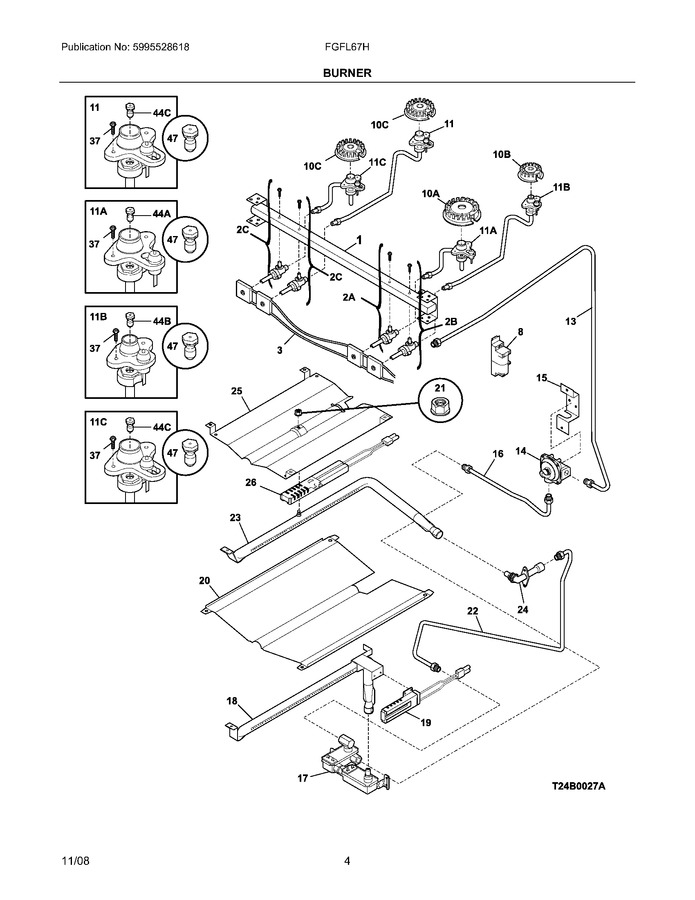

05 - Burner   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
F1 316417900 Manifold Pipe Call for Availability
F2A 316536002 316536002 Valve-top Burner,14k Call for Availability
F2B 316536003 316536003 Valve-top Burner,5k Call for Availability
F2C 316536000 316536000 Valve-top Burner,9.5k Call for Availability
F3 316219019 316219019 Wiring Harness,w/igntr Switch Call for Availability
F8 5304505695 Module,spark   (Replaces: 316135702) Call for Availability
F10A 316223400 316223400 Burner,sealed ,14k Call for Availability
F10B 316206401 316206401 Burner,sealed ,5k
(Replaces: 316206400) 		Call for Availability
F10C 316212400 Burner,sealed ,9.5k Call for Availability
F11 316237704 Ignitor/orifice Assy.,top Burner ,rear ,9.5k,w/holder ,tube Call for Availability
F11A 316272000 Ignitor/orifice Assy.,top Burner ,front Call for Availability
F11B 316237707 316237707 Ignitor/orifice Assy.,top Burner ,rear ,5k,w/holder ,tube Call for Availability
F11C 316237805 316237805 Ignitor/orifice Assy.,top Burner ,front Call for Availability
F13 316489100 Tube,3/8 ,aluminum ,rgltr To Manf ,with Fittings Call for Availability
F14 5304521339 Regulator,pressure   (Replaces: 316091706) Call for Availability
15 316091600 316091600 Bracket-regulator Call for Availability
F16 5304507348 Tube-valve To Rgltr,3/8   (Replaces: 316431000) Call for Availability
F17 316404901 316404901 Valve,safety Call for Availability
F18 316404400 316404400 Burner,oven Call for Availability
F19 316489400 316489400 Ignitor,oven Burner Call for Availability
20 5304519024 Baffle,oven Burner   (Replaces: 316401401) Call for Availability
21 5303013272 Nut,hex Head Sems Call for Availability
F22 5304507768 Tube-valve To Mixer   (Replaces: 316537100) Call for Availability
F23 316404300 Burner,broiler Call for Availability
F24 316409700 Elbow,mixer Call for Availability
25 316401301 Baffle,broil Burner Call for Availability
F26 316489401 316489401 Ignitor,burner Call for Availability
37 316240600 316240600 Screw,assy Mtg ,(8) ,ignitor/orifice Call for Availability
44A 316237900 Orifice,top Burner ,14k Call for Availability
44B 316237903 Orifice-top Burner,5k Call for Availability
44C 316237902 316237902 Orifice,top Burner ,9.5k Call for Availability
47 GRLP3 GRLP3 Lp Conversion Kit,w/instructions
(Replaces: GRLP2) 		Call for Availability
FNI 316526901 Harness,ignitor Call for Availability
NI 316215600 Screw,valve Mtg. ,1/4 - 20 Call for Availability
316443200 Bracket-support Call for Availability
316401500 Cover,broil Ignitor Call for Availability
316498100 Shield,wire ,safety Valve Call for Availability
316248105 Instructions,lp Kit Call for Availability
316021104 Screw`hex ,8-18 X 3/8 `nick `(3) `regulator Brkt Call for Availability
