Maytag CER1140AAQ Parts List

Popular Searches: (Click to search)    6``  8``  bake  block  bowl  broil  chr  door  drip  element  hole  infinite  lrg  pass  screw  seal  sml  switch  terminal  thermostat


Select a Diagram

01 - Body

02 - Control Panel

03 - Door/drawer

04 - Oven/base

05 - Top Assembly

06 - Wiring Information

07 - Wiring Information (at Various Series)

Select Diagram ... 01 - Body 02 - Control Panel 03 - Door/drawer 04 - Oven/base 05 - Top Assembly 06 - Wiring Information 07 - Wiring Information (at Various Series)

02 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	74003372	Housing, Control Panel (Series: 10)	Call for Availability
2	W11233072	Screw (no.8ab) (Series: 10)	$8.20  In-Stock Retail: $7.99
	74003366	Support, Control Panel (lt) (Series: 10)	Call for Availability
	74003365	Support, Control Panel (rt) (Series: 10)	Call for Availability
3	W11233072	Screw (no.8ab) (Series: 10)	$8.20  In-Stock Retail: $7.99
	74003371	Hinge, Main Top (rod) (Series: 10)	$4.40 Special Order
4	2601D676-88	Panel, Control (bsq) (Series: 10)	$60.50 Special Order
5	WP74009379	Oven Thermostat (Series: 15) (Replaces: 74009379)	$211.80 Special Order

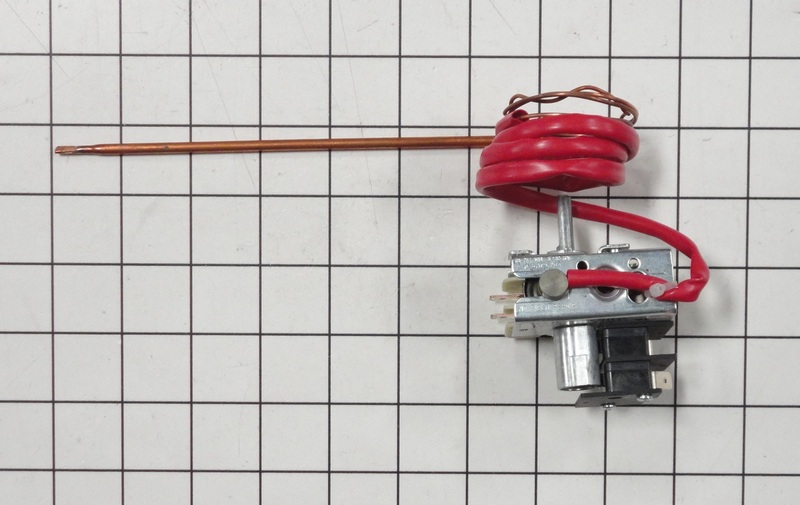

	WP74005019	Thermostat (Series: 10) (Replaces: 74003409)	$144.40  In-Stock Retail: $140.83
	7101P280-60	Screw W/washer (blk) (Series: 10)	$4.10 Special Order
6	WP7101P309-60	Screw (Series: 10)	$4.50 Special Order
	WP7403P238-60	Switch, Infinite (sml Element) (Series: 10) (Replaces: 7403P238-60)	$40.00  In-Stock Retail: $56.27
	WP7403P239-60	Switch, Infinite (lrg Element) (Series: 10) (Replaces: 7403P239-60)	$33.50  In-Stock Retail: $49.21
7	74005057	Knob (bsq) (Series: 10)	$9.90 Special Order
8	WP74004153	Light, Indicator (Series: 10)	$4.50 Special Order
9	WP7730P011-60	Lens, Indicator Light (Series: 10)	$3.30 Special Order
10	W11233072	Screw (no.8ab) (Series: 10)	$8.20  In-Stock Retail: $7.99
	74003374	Shield, Sight (Series: 10)	$2.10 Special Order
11	74004982	Screw (6abx1/2 3/16) (Series: 10)	$4.40 Special Order
	74005035	End Cap, Control Pnl (lt-bsq) (Series: 10)	$9.70 Special Order
	74005034	End Cap, Control Pnl (rt-bsq) (Series: 10)	Call for Availability
NI	74003402	Manual, Use & Care (Series: 10)	Call for Availability
	16010161	Manual, Srvc Elec/gas Range (Series: 10)	$6.20 Special Order
