Whirlpool AER6303MFW3 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    2oz  and  black  front  green  infinite  left  lower  oven  paint  pressurized  rear  right  sensor  side  spray  switch  touch  trim  white


Select a Diagram

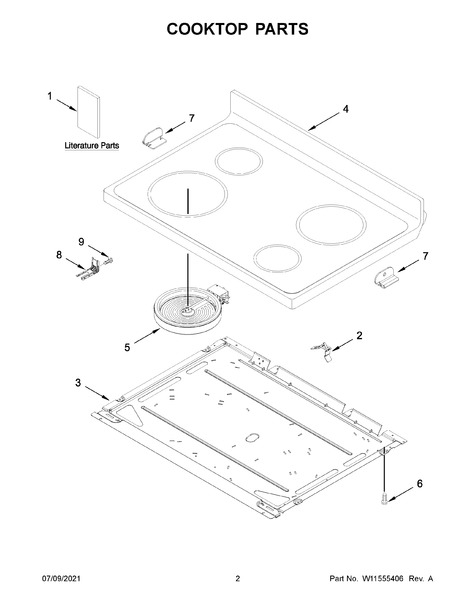

02 - Cooktop Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 W11047681 Installation Instructions Call for Availability
1A W10881062 User Instructions Call for Availability
1B W11326823 Tech Sheet Call for Availability
2 WPW10225448 WPW10225448 Spring, Element $7.20
 In-Stock
Retail: $6.97
3 W11244088 Pan, Radiant Element $121.90
Special Order
4 W10906141 Cooktop (black) $364.10
Special Order
4A W10906139 Cooktop (white) $308.20
Special Order
5 WP8273993 WP8273993 Element (1800w) (left Front And Right Rear)
(Replaces: 8273993)
$178.50
 In-Stock
Retail: $174.14
5A W11171119 Element (1200w) (right Front And Left Rear) $171.80
 In-Stock
Retail: $167.59
6 WP3196557 WP3196557 Screw
(Replaces: 3196169)
$4.50
 In-Stock
Retail: $4.33
7 W10607641 Bracket, Cooktop (left) $19.00
Special Order
7A W10607642 Bracket, Cooktop (right) $19.00
Special Order
8 W11447673 W11447673 Bracket, Anti-tip $18.00
 In-Stock
Retail: $17.49
9 7101P48560 Screw, Anti-tip Kit Call for Availability
NI 3184020 Wire, Ground $50.90
Special Order
313660 Clip, Ground Wire $7.10
Special Order
W11544350 Harness, Wire (main) $110.50
Special Order
W11171894 Harness, Cooktop (left) $127.30
Special Order
NP Cabinet (not Serviced) Call for Availability
W11596058 Harness, Cooktop (right) $18.00
Special Order
