Whirlpool DU851SWPS0 Parts List

Popular Searches: (Click to search)    12oz  2oz  biscuit  black  collector  diffuser  float  hose  housing  knob  paint  pressurized  relay  spray  superior  switch  timer  touch  water  white


Select a Diagram

01 - Frame And Console Parts

02 - Inner Door Parts

03 - Tub Assembly Parts

04 - Pump And Spray Arm Parts

05 - Pump And Motor Parts

06 - Dishrack Parts, Optional Parts

Select Diagram ... 01 - Frame And Console Parts 02 - Inner Door Parts 03 - Tub Assembly Parts 04 - Pump And Spray Arm Parts 05 - Pump And Motor Parts 06 - Dishrack Parts, Optional Parts

05 - Pump And Motor Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP3369011	Housing Assembly	$72.80  In-Stock Retail: $70.93
2	WP3369031	Seal, Drain Cover	$6.10 Special Order
3	3369028	Diaphragm	$4.40 Special Order

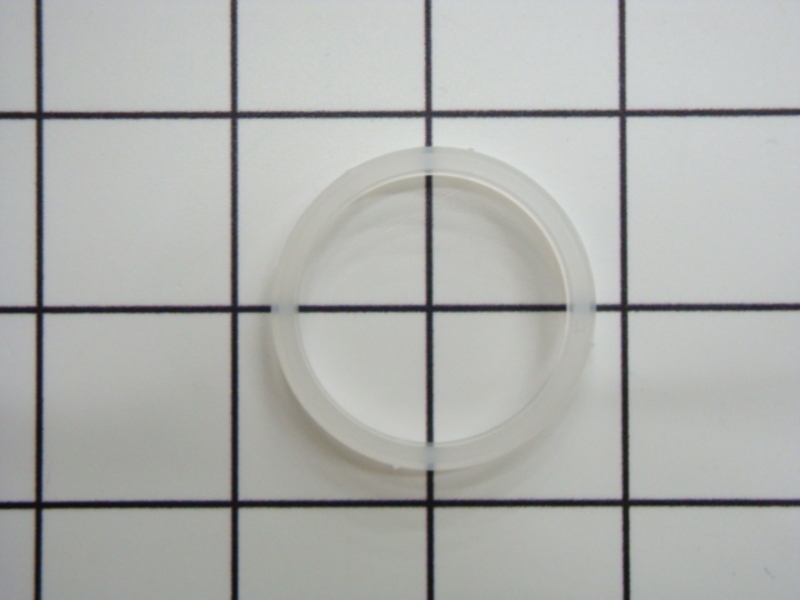

4	W10858635	Ring, Diaphragm	$6.00 Special Order

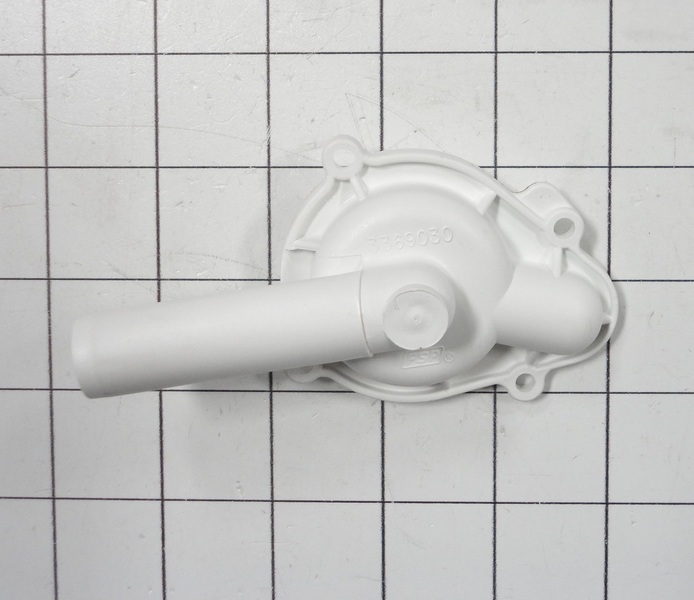

5	3369030	Cover, Drain Valve	$15.50 Special Order
6	WP3368921	Screw (4)	$1.30  In-Stock Retail: $1.24
7	3369020	Seal Seat	Call for Availability
8	WP3385557	Seal Head	$54.60  In-Stock Retail: $51.95
9	4386996A	Impeller & Bearing Assembly	$61.80 Special Order
10	WP3369012	Disk & Mount Assembly	$53.30 Special Order

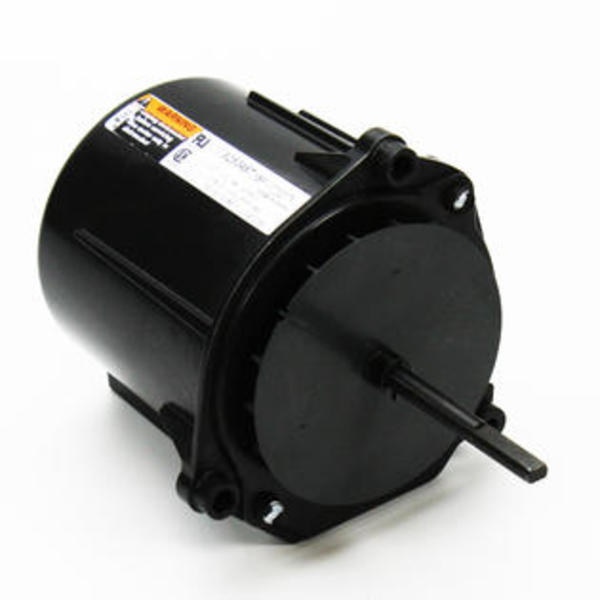

11	8283457	Motor	Call for Availability
12	3368922	Screw (3)	$4.40 Special Order
