07 - Pump, Washarm And Motor Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart

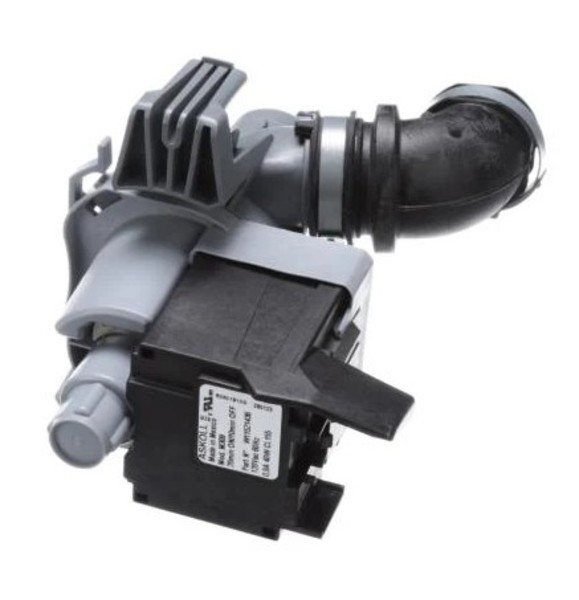

1	W11612327	Motor (also Order Items 9 & 11)   (Replaces: W11084656 W10854710)	$79.70  In-Stock Retail: $77.68
2	W11243394	Motor, Isolator	$7.90  In-Stock Retail: $7.69
3	W11245091	Cover, Outlet	$17.10 Special Order
4	WPW10455268	Sump With Seal (also Order Items 9 & 11)   (Replaces: W10455268)	$134.40  In-Stock Retail: $131.10
5	WP9741232	Screw	$4.50 Special Order
6	WPW10463906	Screen (Replaces: W10463906)	$19.50  In-Stock Retail: $18.95
7	W11101428	Wash Arm Assembly	$86.10  In-Stock Retail: $83.99
8	W10872845	Filter Cup Assembly	$44.40  In-Stock Retail: $43.28
9	W10730897	Hose Assembly (includes 2 Clamps)	$141.70 Special Order
10	W11124384	Sump & Motor Assembly	$228.80 Special Order
11	WPW10538166	Grommet   (Replaces: W10538166)	$21.60  In-Stock Retail: $21.06
12	WPW10348407	Screw	$4.50 Special Order
13	WPW10372113	Tab, Sump	$17.00 Special Order
14	W10876537	Pump, Drain (Replaces: W10724439)	$74.90  In-Stock Retail: $73.04
15	8269144A	Hose, Drain (Replaces: 8269144)	$16.80  In-Stock Retail: $16.39
16	WPW10476221	Disc, Diverter	$15.30 Special Order
17	W10537869	Motor, Diverter   (Replaces: W10849439)	$85.70  In-Stock Retail: $83.58
18	WP8269146	Clamp, Hose	$4.50  In-Stock Retail: $4.33
19	W11084121	Indicator, Optical Wash   (Replaces: W10723295)	$49.70  In-Stock Retail: $48.45
