Whirlpool CAM2762KQ0 Parts List

Popular Searches: (Click to search)    center  clutch  complete  drive  gasket  gearcase  hose  main  mixing  motor  paint  post  pressurized  pump  spray  spring  tub  valve  water  white


Select a Diagram

02 - Top And Cabinet, Literature

03 - Control Panel

04 - Meter Case

05 - Rear Panel

06 - Agitator, Basket And Tub

07 - Brake, Clutch, Gearcase, Motor And Pump

08 - Machine Base

09 - Wiring Harness

10 - Brake And Drive Tube

11 - Gearcase

12 - Water System

13 - Miscellaneous, Optional

01 - Front Cover

Select Diagram ... 02 - Top And Cabinet, Literature 03 - Control Panel 04 - Meter Case 05 - Rear Panel 06 - Agitator, Basket And Tub 07 - Brake, Clutch, Gearcase, Motor And Pump 08 - Machine Base 09 - Wiring Harness 10 - Brake And Drive Tube 11 - Gearcase 12 - Water System 13 - Miscellaneous, Optional 01 - Front Cover

04 - Meter Case   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10461200	Meter Case   (Replaces: 3406994)	$214.40 Special Order
2	WP385421	Coin Funnel (Replaces: 385421)	$41.90  In-Stock Retail: $40.86
3	339805	Screw, 10-32 X 3/16	$8.20 Special Order
4	WP90406	Nut, Cage	$4.50 Special Order
5	279950	Plate, Adapter (includes No.2)	$16.00 Special Order
6	3353994	Bolt (5/16 - 18 X 2 1/2)	$8.20 Special Order
	W11715721	Bolt (5/16-24 X 1)	$4.40 Special Order
7	3954764	Wire Harness	$75.30 Special Order
8	W11283272	Door, Service   (Replaces: 3351136)	$63.60  In-Stock Retail: $61.96
10	WP3954812	Cushion, Case   (Replaces: 3954812)	$17.00  In-Stock Retail: $16.58
11	385575	Bracket, Timer	$61.60 Special Order
12	WP8575004	Timer, 60 Hz.   (Replaces: 3954756)	$231.40 Special Order
13	3353813	Plate, Mounting	$31.00 Special Order
14	WP385571	Clutch, Timer	$57.10 Special Order
	WP354987	E-ring (Replaces: 354987)	$6.90 Special Order
15	WP3400064	Screw, Timer	$4.50 Special Order
16	W10841059	Screw, 10-16 X 3/4	$1.70  In-Stock Retail: $1.64
17	3347825	Plate, Mounting	$4.40 Special Order
18	90186	Screw, Set   (Replaces: 98654)	$4.40 Special Order

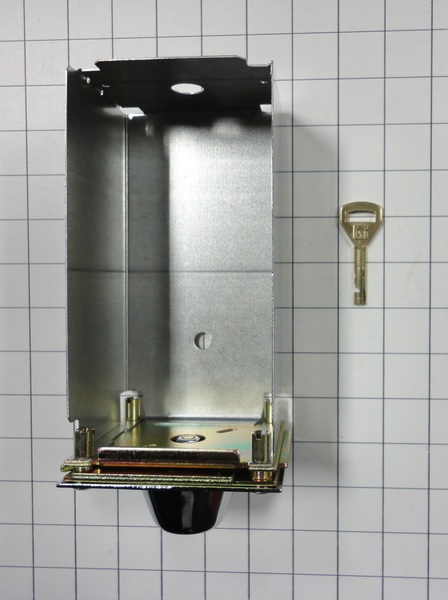

20	W11190039	Money Box With Key (Replaces: 8316525)	$144.60  In-Stock Retail: $141.02
21	W11126319	Coin Chute (Replaces: 8316520)	$180.60  In-Stock Retail: $176.11
	8316265	Insert, 25	$9.70 Special Order
	W11312584	Insert, Blank	$17.80 Special Order
22	W10123497	Fascia, Disp (black)	$105.60 Special Order

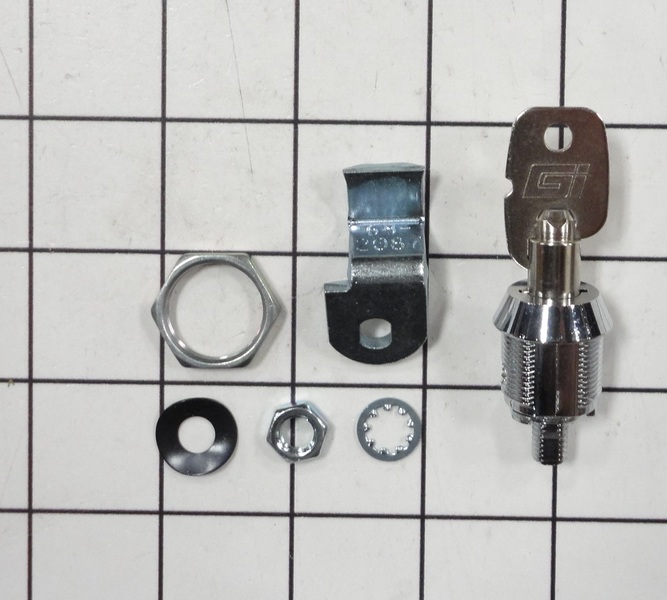

23	W11315637	Security Lock & Cam Assembly	$41.20  In-Stock Retail: $40.15
24	WP8576635	Bolt, Slide Mechanism	$41.10  In-Stock Retail: $40.02
25	W11318367	Extension	$22.10  In-Stock Retail: $21.48

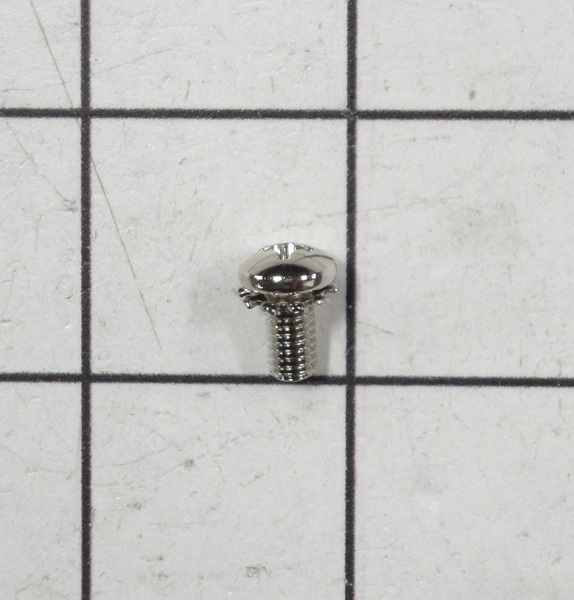

26	3400086	Screw, 10-32 X 3/8	$8.20 Special Order

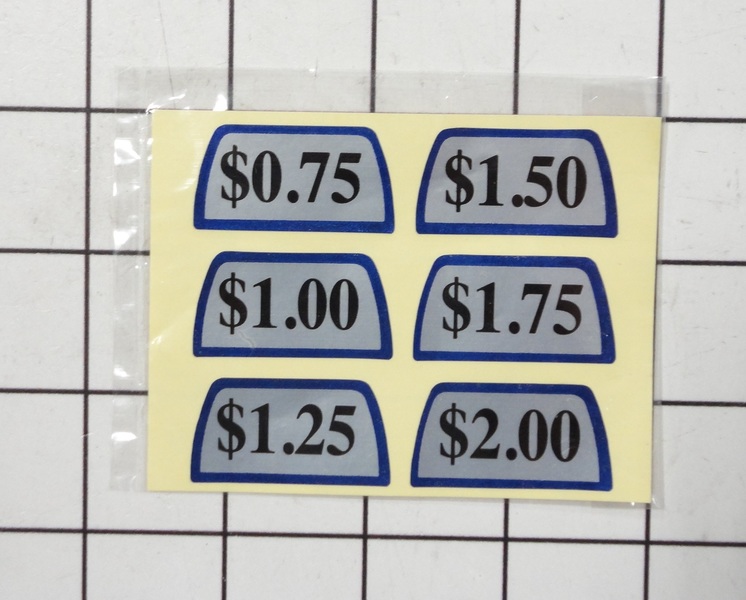

27	4396670	Kit, Decal	$9.30 Special Order
