GE PS950EF3ES Parts List

Popular Searches: (Click to search)    appliance  asm  block  element  glass  inr  lamp  leg  leveler  ovn  radiant  sensor  terminal


Select a Diagram

1 - Control Panel

2 - Cooktop

3 - Upper Oven

4 - Lower Oven

5 - Upper Door

6 - Lower Door

7 - Door Lock

8 - Convection Fan

9 - Cooling Fan

Select Diagram ... 1 - Control Panel 2 - Cooktop 3 - Upper Oven 4 - Lower Oven 5 - Upper Door 6 - Lower Door 7 - Door Lock 8 - Convection Fan 9 - Cooling Fan

6 - Lower Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
55	WB02T10589	Badge Ge	$15.00 Special Order
101	WB35X30052	Insulation Ovn Dr Top	$10.50 Special Order
102	WB35K10025	Insulation Oven Dr Sde	$10.50 Special Order

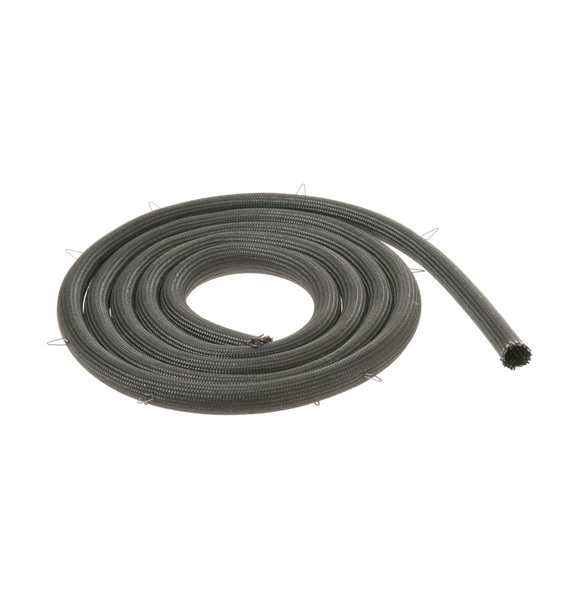

111	WB04T10076	Gasket Ovn Dr	$42.80  In-Stock Retail: $41.66
112	WB63X20852	Liner Oven Dr Asm	$69.20 Special Order
113	WB02T10371	Retainer Insln Ovn Dr	$60.80 Special Order
117	WB56T10320	Retainer Glass Ovn Dr	$525.10 Special Order
118	WB56T10321	Retainer Glass Ovn Dr	$544.90 Special Order
121	WB56X20028	Panel Asm Bonded Lwr(tz)	$271.00 Special Order
122	WB57T10233	Glass Ovn Dr Inr	$259.10  In-Stock Retail: $252.77
136	WB15X27280	Handle And End Cap Asm (Replaces: WB15T10222)	$65.90 Special Order
140	WB56X21397	Frame Door Side	$26.80 Special Order

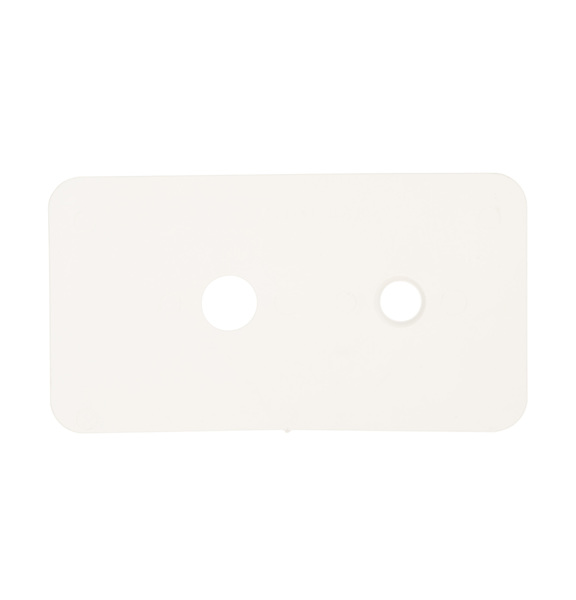

143	WB02X21398	Spacer Bracket Handle	$10.00 Special Order
144	WB34X20853	Bracket Handle Door	Call for Availability
145	WB02T10065	Spacer Dr Handle	$6.60 Special Order
281	WB10T10107	Hinge Door Lt	$52.40 Special Order
	WB10T10106	Hinge Door Rt	$49.90 Special Order
338	WB56T10105	Pack Window Asm	$171.40 Special Order
696	WB01T10132	Screw 10-32 Hex 1 3/4 In	$10.50 Special Order
699	WB1M1	Screw St10-16 X 7/16"	$10.10  In-Stock Retail: $9.83
847	WZ4X245D	Wz4x245d	$25.30 Special Order
1005	WB01T10008	Screw 10-32 Tr T	$10.50 Special Order
