Frigidaire FFSC2323LEBA Parts List

Popular Searches: (Click to search)    10k  assy  cube  defrost  evaporator  fan  ice  instl  maker  motor  ntc  parts  radius  sensor  solenoid  0  temperature  triple  valve  water


Select a Diagram

02 - Freezer Door

03 - Refrigerator Door

04 - Cabinet

05 - Shelves

06 - Controls

07 - System

08 - Ice & Water Dispenser

09 - Ice Container

10 - Ice Maker

01 - Cover Sheet

11 - Wiring Schematic

12 - Wiring Diagram

Select Diagram ... 02 - Freezer Door 03 - Refrigerator Door 04 - Cabinet 05 - Shelves 06 - Controls 07 - System 08 - Ice & Water Dispenser 09 - Ice Container 10 - Ice Maker 01 - Cover Sheet 11 - Wiring Schematic 12 - Wiring Diagram

08 - Ice & Water Dispenser   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	218976438	Tube, Water, 62", Natural, Door	$14.90 Special Order

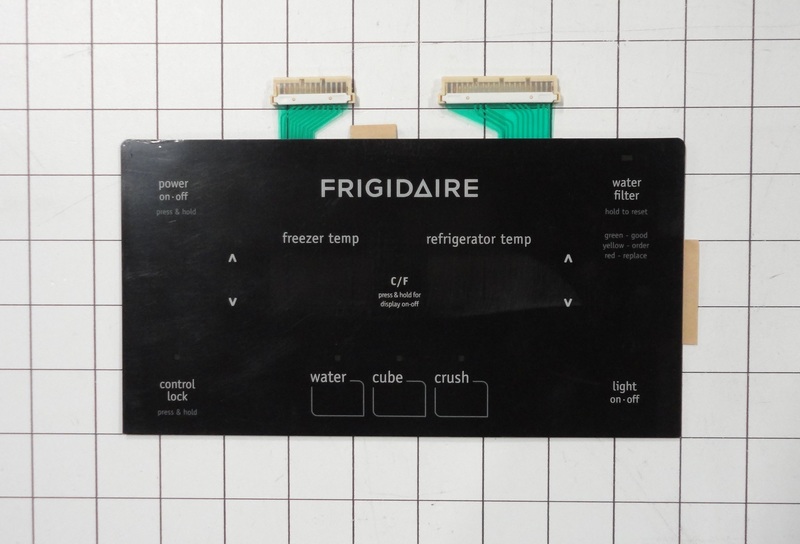

2	242167025	Switch-membrane	$157.40 Special Order
4	241946808	Cover-module, Black	Call for Availability
8	242074213	Module-dispenser, Black   (Replaces: 242074201)	$185.10 Special Order
23	241947003	Drip Tray, Black	$17.00 Special Order
38C	241973711	Board-control	$234.80  In-Stock Retail: $228.99
82	240363402	Screw, Plask, #8-18 X .500	$10.80 Special Order
NI	218515403	Clip-grille	$21.10 Special Order
NIC	240561702	Seal-water Inlet, Inlet Valve, To Ice Maker	$14.90 Special Order
NID	242220206	Tube-water Inlet, .315 - 97.50", Brown/tan	$33.90 Special Order
NIA	218976421	Tube-water Inlet, Valve To Door	$14.90 Special Order
NIB	241850615	Tube-water Inlet, Inlet Valve, To I/m Inlet (Replaces: 218976915)	$25.20  In-Stock Retail: $24.49
