GE GSE25GGHBCWW Parts List

Popular Searches: (Click to search)    asm  assy  bracket  cond  cyst  door  evap  fan  filt  heater  imkitwr30x10061  motor  pack  recess  ref  sensor  solenoid  temp  temperature  water


Select a Diagram

1 - Freezer Door

2 - Fresh Food Door

3 - Freezer Section

4 - Evaporator Instructions

5 - Freezer Shelves

6 - Ice Maker & Dispenser

7 - Fresh Food Section

8 - Fresh Food Shelves

9 - Machine Compartment

Select Diagram ... 1 - Freezer Door 2 - Fresh Food Door 3 - Freezer Section 4 - Evaporator Instructions 5 - Freezer Shelves 6 - Ice Maker & Dispenser 7 - Fresh Food Section 8 - Fresh Food Shelves 9 - Machine Compartment

9 - Machine Compartment   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
175	WR01X10652	Screw 8-18 Ab Ihw 5/8 S	$10.50 Special Order
225	WR02X11426	Tube Drain	$14.50 Special Order
257	WR02X10663	Stand Off	$10.50 Special Order
270	WR17X11168	Grommet And Tube Asm (Replaces: WR17X11506)	$28.20 Special Order
312	WR02X10695	Wheel Mobility	$10.60 Special Order
602	WR01X10617	Scr 1/4-14 Ab Ihw 3/4 S	$10.50 Special Order
614	WR02X10540	Bumper	$10.50  In-Stock Retail: $10.22
616	WR82X22767	Cover Access Asm	$38.90 Special Order
618	WR02X11331	Grommet Evap Fan	$10.50 Special Order
625	WR01X10684	Clamp Cable	$10.50 Special Order
626	WR23X10300	Power Cord (Replaces: WR23X108)	$25.10 Special Order
628	WR17X12668	Shroud Condenser	$46.90 Special Order
630	WR23X23103	Harness Board Indiv	$17.00 Special Order
650	WR60X10209	Motor Dc Cond Fan (Replaces: WR60X10216)	$66.70  In-Stock Retail: $109.76
651	WR60X24484	Blade Cond Fan Asm (Replaces: WR60X10206)	$25.20  In-Stock Retail: $24.54
652	WR02X12149	Ring Compression	$10.50  In-Stock Retail: $10.22
683	WR02X11027	Wire Tie	$10.50 Special Order
686	WR01X10654	Screw 10-32 Tt Hxw 5/16	$10.50 Special Order
690	WZ5X158D	Scr 8-32 T Hxw 3/8 S	$28.40 Special Order
691	WR02X10593	Bracket Cond Fan (rear)	$14.70 Special Order
725	WR87X10224	Compressor Kit Egys60	$704.30 Special Order
729	WR55X20692	Capacitor Sleeve Kit	$16.70 Special Order
730	WR84X10022	Condenser & Brkt Asm (Replaces: WR84X10078)	$589.50  In-Stock Retail: $589.44
734	WR02X22564	Clip Retainer Combo	$10.50 Special Order
735	WR08X21100	Tsd Combo	$79.40 Special Order
736	NLA ITEM	Clip Compressor Mount	Call for Availability
737	WR02X22869	Grommet	$10.50 Special Order
740	WR86X25269	P/s Dryer Kit R134a   (Replaces: WR86X96)	$63.10 Special Order
741	WR1X1779	Stud Mtg Compr	$10.50 Special Order
749	WR17X13159	Baffle Cond Air	$15.60 Special Order
750	WR1X1786	Scr 10-32 Tr 1/2	$10.50 Special Order
753	WR02X11863	Brkt Cond Fan (mtg)	$10.30 Special Order
757	WR01X10622	Scr 10-32 B Ihxw 1/2	$10.50 Special Order
762	WR14X10199	Foam Strip Se Adh	$14.50 Special Order
764	WR2X9000	Clip, Cond Mnt	$10.50 Special Order
765	WR17X10695	Bracket Condenser Bar	$11.80 Special Order
775	WR17X10796	Cover Water Line	$10.50  In-Stock Retail: $10.22
800	WR57X33326	Water Valve Assy W/o Gua (Replaces: WR57X10032 WR57X10040)	$81.90  In-Stock Retail: $137.00

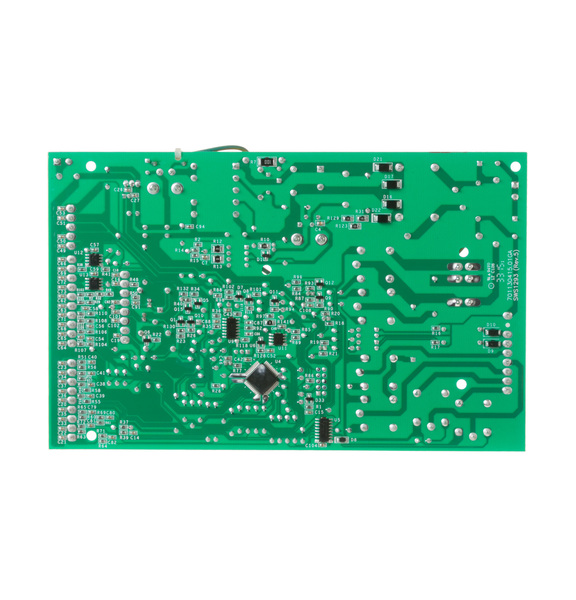

801	WR55X24347	Board Main Asm	$184.50  In-Stock Retail: $180.00
803	WR02X12025	Main Board Enclosure Asm	$25.90 Special Order
805	WR02X12265	Clamp Tube	$10.50 Special Order
806	WR17X11625	Tube Plastic	$24.30  In-Stock Retail: $23.65
916	WR02X13569	Sound Damper	$10.50 Special Order
917	WR02X13573	Sound Damper	$10.50 Special Order
	WR01L02254	Grille Base	Call for Availability
	WR01L08655	Arc Handle Asm	Call for Availability
	WR01L00450	Pan Middle Asm	Call for Availability
	WR01A00445	Lever Ff	Call for Availability
	WG03F00771	Heater And Bracket Assy	Call for Availability
	WR01L03000	Pan Bottom Asm	Call for Availability
