GE DCCB330GJ4WC Parts List

Popular Searches: (Click to search) bearing ccmr door drum filter frame hole idler limit motor pulley pully shaft sleeve slide switch thermostat thrd top white

Select a Diagram

1 - Control Panel & Coin Box Assembly

3 - Front Panel & Door

4 - Cabinet & Top Panel

5 - Blower & Motor Assembly

6 - Drum

7 - Gas Valve & Burner Assembly

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
21	WE02X21135	Screw	$11.50 Special Order
75	WE2M173	Screw	$10.50 Special Order
222	WE20X20412	Bottom Cover (e-coat)	$99.50 Special Order
223	WE2M189	Screws	$10.00 Special Order
224	WE2M245	Anchor Nut 1/4	Call for Availability
235	WE2M307	Scr 10-16 X 1/2 Ab	$10.50 Special Order
236	WE01X29357	Levelling Foot	$17.10 In-Stock Retail: $16.59
241	WH1X2266	Plug Button	$39.00 Special Order
242	WH1X2268	Retainer	$25.50 Special Order
401	NLA ITEM	Cover Coin Wh	Call for Availability
403	NLA ITEM	Screw 8-18 X 2 Torx T-15	Call for Availability
404	WE20X20406	Side Panel White	$47.00 Special Order
408	NLA ITEM	Base Cabinet Coin	Call for Availability
410	WE1M781	Front Bracket Level Leg	$22.10 Special Order
411	WE1M772	Bracket Levelling Leg	$27.60 Special Order
412	WE1M782	Level Leg & Bracket Frnt	$14.50 Special Order
413	WE1M773	Bracket & Level Leg Asm	$175.70 Special Order
417	WE1M1003	Holder Fuse	$39.00 In-Stock Retail: $37.97
418	WE1M1002	Fuse Ccmr 30 Amp 120v	$51.80 In-Stock Retail: $62.09
420	WE20X20559	Rear Panel	$89.80 Special Order

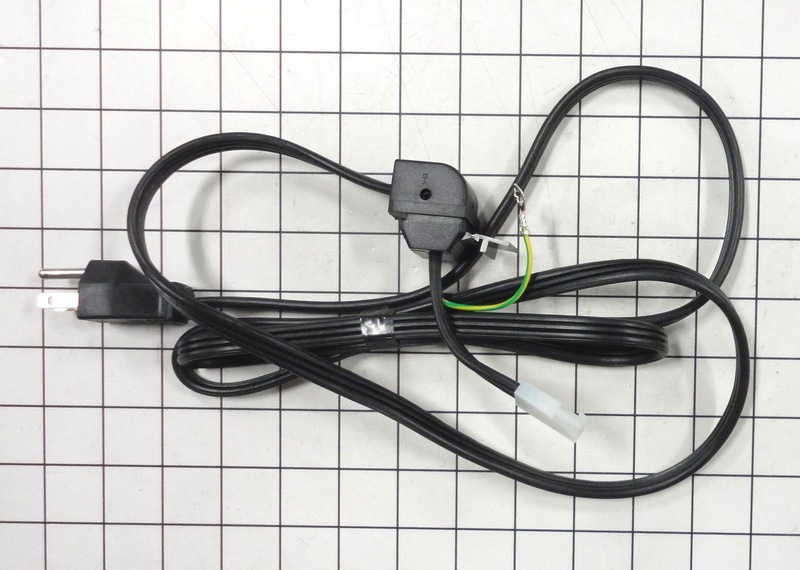

421	WE26M341	Cord Set	Call for Availability
422	WE1M155	Clip Cordset	$3.70 Special Order
430	WE1M1102	Term. Block Cover	$15.40 In-Stock Retail: $15.02
431	WE01X20424	Strain Relief Bracket Ga	$9.80 Special Order
456	WE1X617	Pipe Clamp	$9.30 Special Order
