04 - Manifold Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPY703856	Nut   (Replaces: 98017323)	$4.50  In-Stock Retail: $4.33
2	W10859921	Assembly, Tubing (left Front)   (Replaces: W10543959)	$21.70  In-Stock Retail: $21.12
	W10861724	Assembly, Tubing (right Front)   (Replaces: W10512771)	$21.70  In-Stock Retail: $21.12
3	W11715913	Bracket, Venturi	$17.70 Special Order
4	W11239659	Assembly, Tubing (right Rear)   (Replaces: W10544971)	$102.70  In-Stock Retail: $100.19
	W11213836	Assembly, Tubing (left Rear)   (Replaces: W10512770)	$102.70  In-Stock Retail: $100.19
5	W10518414	Module, Spark	$196.40 Special Order
6	WPW10209657	Ignitor, Top (natural) (Replaces: W10209657)	$33.20  In-Stock Retail: $32.37
	WPW10209656	Ignitor, Top (black) (Replaces: W10209656)	$48.30  In-Stock Retail: $47.05
7	W10837674	Screw (Replaces: W10146346)	$4.50  In-Stock Retail: $4.33
8	W10582462	Spread, Flame (bake)	Call for Availability

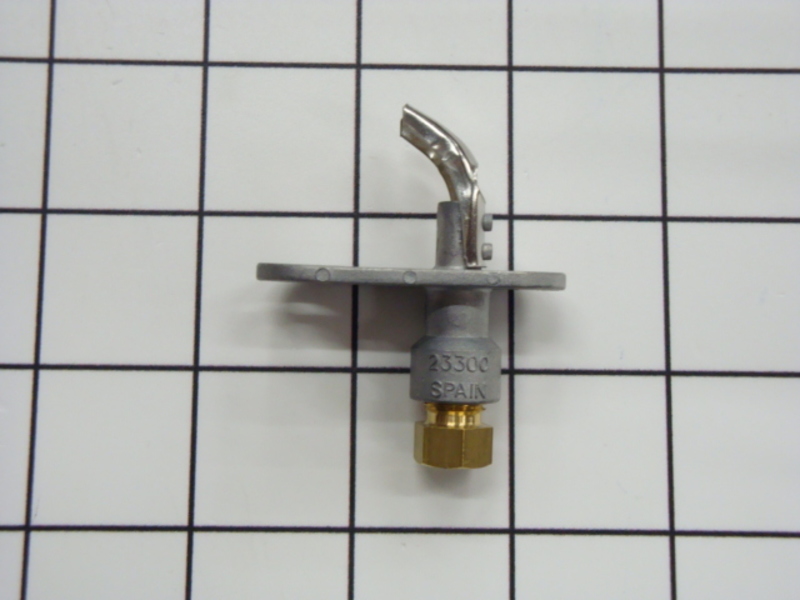

9	WPW10085400	Pilot, Thermostat (Replaces: W10085400)	$58.40 Special Order
10	W10517877	Burner, Oven	Call for Availability
11	W10837731	Screw	$4.50  In-Stock Retail: $4.33
12	W10556706	Harness, Switch	Call for Availability
13	98007116	Sleeve, 3/16 Ball	$29.60 Special Order
14	WPW10278150	Clip, Ignitor (Replaces: W10278150)	$29.70  In-Stock Retail: $28.95
15	WPW10141709	Valve, Saddle (Replaces: W10141709)	$141.70  In-Stock Retail: $138.16
16	98017517	Screw	$7.20 Special Order
17	W10579474	Assembly, Manifold	Call for Availability
18	W10515689	Tubing, Manifold To Regulator	Call for Availability

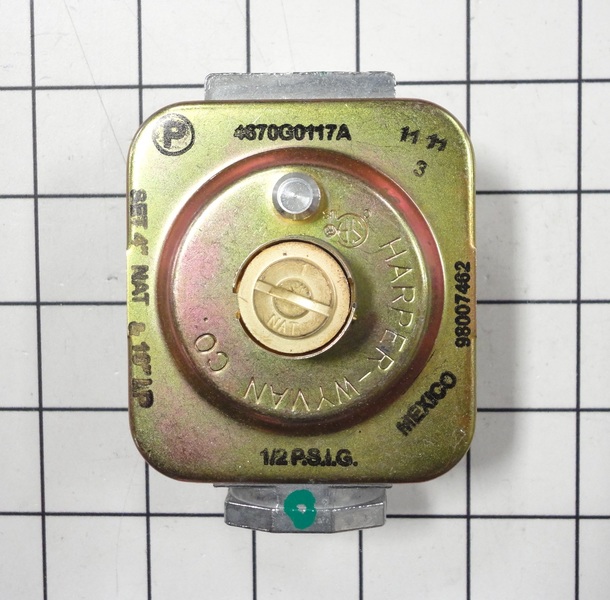

19	WP98007462	Regulator (Replaces: 98007462)	$151.40 Special Order
20	WP98017348	Orifice, Natural (9.5k) (left Front, Right Front, Left Rear, Right Rear) (Replaces: 98017348)	$53.90  In-Stock Retail: $52.55
21	98005514	Nut	$8.20 Special Order
22	W10574737	Bracket, Valve	$17.20 Special Order
23	WP98004310	Tubing, Thermostat To Pilot   (Replaces: 98004310)	$64.30  In-Stock Retail: $62.66
24	1180823	Screw	Call for Availability
25	98007410	Bracket, Regulator	$56.90 Special Order

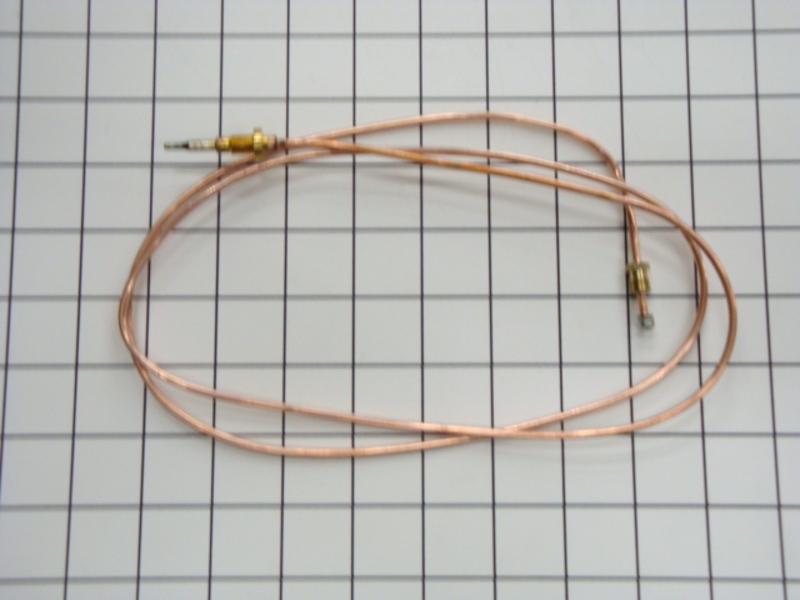

26	WPW10155906	Thermocouple Pilot (Replaces: W10155906)	$174.90 Special Order
27	W10503587	Thermostat, Oven	$180.00 Special Order
28	98007109	Retainer, Thermocouple	$35.80 Special Order
29	W10145060	Electrode, Oven	$72.30 Special Order
30	W10570943	Bracket, Oven Burner	Call for Availability
31	98007431	Fitting 3/8to9/16	$72.10 Special Order
32	W10532503	Tubing, Thermostat To Burner	Call for Availability
NI	N/P	Following Parts Not Illustrated,	Call for Availability
	W10537440	Kit, Lp Conversion (battery Ignition)	$19.80 Special Order
