Maytag 5GBR22PRAA00 Parts List

Popular Searches: (Click to search)    2oz  access  black  blade  door  fan  gear  grease  hand  left  miscellaneous  paint  pressurized  right  silicone  slide  spray  touch  valve  white


Select a Diagram

02 - Cabinet Parts

03 - Refrigerator Liner Parts

04 - Freezer Liner Parts

05 - Refrigerator Door

06 - Freezer Door

07 - Shelf Parts

08 - Unit Parts

09 - Optional Parts (not Included)

01 - Cover Sheet

Select Diagram ... 02 - Cabinet Parts 03 - Refrigerator Liner Parts 04 - Freezer Liner Parts 05 - Refrigerator Door 06 - Freezer Door 07 - Shelf Parts 08 - Unit Parts 09 - Optional Parts (not Included) 01 - Cover Sheet

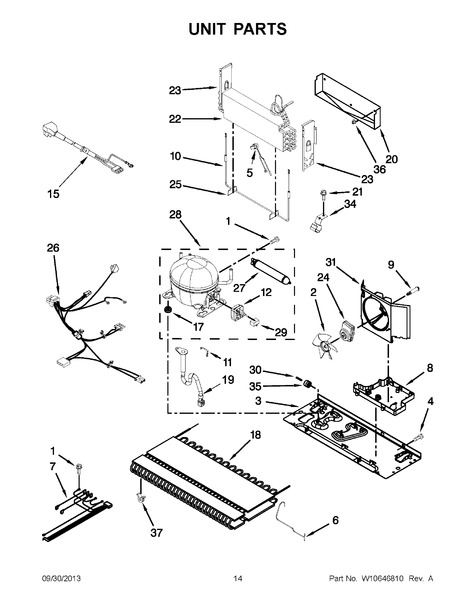

08 - Unit Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	12992301	Screw	$18.60 Special Order
2	WP12825803	Blade, Fan (Replaces: 12825803)	$58.80  In-Stock Retail: $57.28
3	W10480110	Basepan	$92.00 Special Order
4	67006425	Screw	$4.50  In-Stock Retail: $4.33
5	W11084905	Thermostat	$67.00 Special Order
6	W10306059	Tube, Discharge	$71.90 Special Order
7	W10280429	Harness, Evaporator Heater	$99.40 Special Order
8	WPW10655367	Pan, Drain (Replaces: W10296784)	$90.30 Special Order
9	W10829281	Screw	$7.40 Special Order
10	12729131	Evaporator Heater	$49.00 Special Order
11	2302129	Bale Strap	$66.60 Special Order
12	W10361441	Device, Start	$42.90 Special Order
15	W10462018	Cord, Power	$56.00 Special Order
17	WPW10169124	Grommet, Compressor	$4.50 Special Order
18	WPW10346420	Condenser	$172.40  In-Stock Retail: $168.14
19	W10619951	Extension, Drain Tube	$40.20  In-Stock Retail: $39.21
20	WPW10292802	Tray, Drip	$101.50  In-Stock Retail: $98.93
21	WP33001882	Screw	$49.10 Special Order
22	W11459354	Evaporator Kit   (Replaces: W10317013)	$140.20  In-Stock Retail: $136.76
23	12225602	Dam (left Hand)	$9.40 Special Order
	12225702	Dam (right Hand)	Call for Availability
24	WPW10246191	Motor, Fan	$167.00 Special Order
25	W11673433	Clip, Heater	$80.00 Special Order
26	W10273559	Harness, Unit	$158.70 Special Order
27	WPW10143759	Drier	$17.10  In-Stock Retail: $16.59
28	W10183407	Compressor	$322.90 Special Order
29	2321245	Capacitor	$71.30 Special Order
30	67006434	Axle, Roller	$4.50  In-Stock Retail: $4.33
31	WPW10189184	Shroud   (Replaces: W10189184)	$63.70  In-Stock Retail: $62.14
34	W10281329	Clip, Drier	$6.40 Special Order
35	WP67005149	Roller	$13.00 Special Order
36	10623002	Clip, Evaporator	$7.10 Special Order
37	WPW10137529	Grommet, Condenser	$4.50 Special Order
NI	WP978025	Valve, Access (Replaces: 978025)	$57.90  In-Stock Retail: $56.43
	978026	Valve, Access	$69.30  In-Stock Retail: $67.59
	978027	Valve, Access	$70.70 Special Order
	978028	Valve, Access	Call for Availability
	978029	Valve, Access	$65.50 Special Order
	978030	Valve, Access	$74.20 Special Order
	876764	Valve, Access	$53.50  In-Stock Retail: $52.16
	N/P	Refrigerant Charge 5.0 Oz. (r-134a)	Call for Availability
