Maytag AGD4475TQ0 Parts List

Popular Searches: (Click to search)    assembly  belt  coil  door  drive  dryer  fuse  ignitor  kit  main  pilot  position  pulley  repair  roller  split  support  switch  terminal  thermal


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - 8318272 Burner Assembly

04 - Bulkhead Parts, Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - 8318272 Burner Assembly 04 - Bulkhead Parts, Optional Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	8576793	Wiring Diagram	Call for Availability
	W10089174	Sheet, Cycle Feature	Call for Availability
	W10088774	Guide, Use & Care	Call for Availability
	W10088971	Instructions, Installation	Call for Availability
2	WP693995	Screw, Hex Washer Head   (Replaces: 693995)	$4.50  In-Stock Retail: $4.33
3	3397269	Connector-timer	$16.90 Special Order
4	W10820038	Cap, End (l.h.)	$48.60 Special Order
5	3936144	Connector	$13.00 Special Order
6	3395683	Connector, Motor	$31.90 Special Order
7	W10820038	Cap, End (r.h.)	$48.60 Special Order
8	WP357213	Nut-push-in (2) (Replaces: 357213)	$4.50 Special Order
9	W10103406	Panel, Rear Console	$73.20 Special Order
11	WP8536939	Spring-clip Knob (Replaces: 8536939)	$4.50  In-Stock Retail: $4.33
13	W11693756	Screw, 8-18 X 5/8	$8.20 Special Order
14	WP388326	Screw, Console (Replaces: 388326)	$4.50  In-Stock Retail: $4.33
15	WP3394427	Clip-harness	$4.50 Special Order
16	WP8563985	Top   (Replaces: 8557930)	Call for Availability
18	WP94614	Terminal	$4.50 Special Order
19	3400859	Screw, 8-18 X 7/32	$8.20 Special Order
21	WP8299764	Timer   (Replaces: 8299764)	$206.10 Special Order
22	3391249	Tie, Cable	$5.80 Special Order
23	8299876	Harness, Wiring	$213.10 Special Order
24	WP3403499	Connector (2) Position Gas Valve	$4.50 Special Order
25	WP3403498	Connector, 3 Position (gas Valve)	$4.50 Special Order
26	WP90767	Screw,8-18 X 5/16	$4.50  In-Stock Retail: $4.33
27	WP3977456	Switch, Push-to-start (Replaces: 3977456)	$21.60  In-Stock Retail: $20.98
28	WP8557455	Timer Knob & Dial (Replaces: 8538953)	$33.80 Special Order
29	8271418	Bracket, Control	Call for Availability

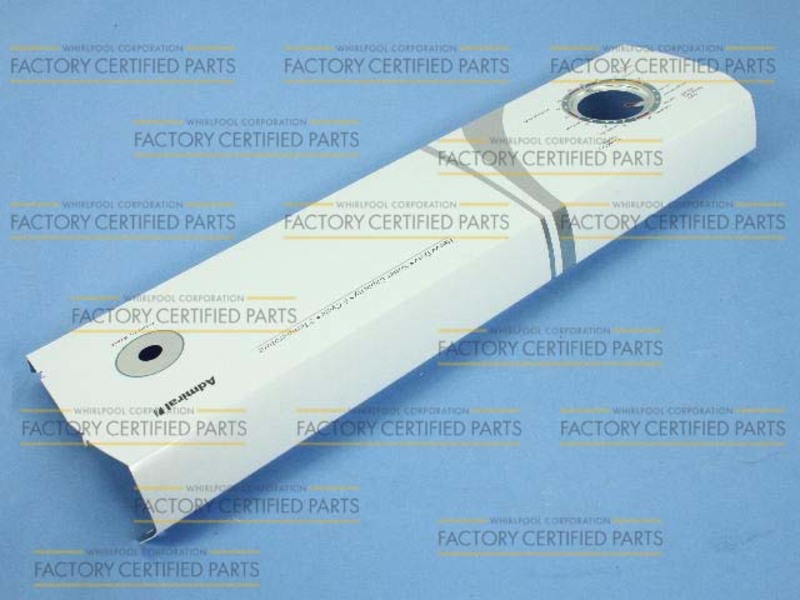

30	WPW10141666	Panel, Control	Call for Availability
31	717252	Receptacle	$4.40 Special Order
