GE GNE26GSDBSS Parts List

Popular Searches: (Click to search)    aasm  asm  condenser  def  defrost  fan  filt  heater  light  motor  refrigeration  sensor  side  switch  temperature  thermostat  valve  water  wr87x10211


Select a Diagram

1 - Freezer Door

2 - Fresh Food Door - Lh

3 - Fresh Food Door - Rh

4 - Freezer Section

5 - Freezer Shelves

6 - Fresh Food Section

7 - Fresh Food Shelves

8 - Case Parts

9 - Machine Compartment

Select Diagram ... 1 - Freezer Door 2 - Fresh Food Door - Lh 3 - Fresh Food Door - Rh 4 - Freezer Section 5 - Freezer Shelves 6 - Fresh Food Section 7 - Fresh Food Shelves 8 - Case Parts 9 - Machine Compartment

5 - Freezer Shelves   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
500	WR21X10251	Basket Bottom Asm	$181.60 Special Order
501	WR02X13629	Gear Lwr Drw Rh	$13.10  In-Stock Retail: $12.71
502	WR02X13630	Gear Lwr Drw Lh	$10.50  In-Stock Retail: $10.22
503	WR02X13631	Connnector Gear Pinion	$10.50  In-Stock Retail: $10.22
504	WR02X13708	Crossbar Pinion	$21.50 Special Order
505	WR01X11023	Pin Cross Bar	$10.50 Special Order
506	WD02X10067	Screw 8-16 Hxw 1/2 Ss	$10.50 Special Order
507	WR01X11036	Screw Set Door Fz	$10.50 Special Order
509	WR02X13686	Wheel Slide Asm	$10.50 Special Order
512	WR02X13703	Divider Bottom Basket	$35.30 Special Order
513	WR21X10251	Basket Bottom	$181.60 Special Order
514	WR02X13674	Support Slide Fz	$10.50  In-Stock Retail: $10.22
515	WR17X13085	Support Btm Fz Divider	$13.80 Special Order
516	WR02X13667	Stopper Fz Divider	$10.50 Special Order
517	WR01X11050	Fastener Push	$10.50 Special Order
518	WR17X13238	Bracket Slide Fz Rh	$45.80 Special Order
519	WR17X13145	Bracket Slide Fz Lh	$110.90 Special Order
520	WR17X13077	Bracket Slide Rh	$454.70 Special Order
521	WR17X13170	Slide Upper Basket	$42.80 Special Order
522	WR01X11022	Scr 8-18 B Rnt20 1/4 S	$10.50 Special Order
524	WR17X13079	Bracket Slide Lh	$146.00 Special Order
526	WR17X13232	Divider Fz	$32.30 Special Order
527	WR72X10427	Slide Lower Fz Rh	$84.30 Special Order
528	WR72X10428	Slide Lower Fz Lh	$78.90 Special Order
529	WR17X26690	Glide Lh Asm	$11.60 Special Order

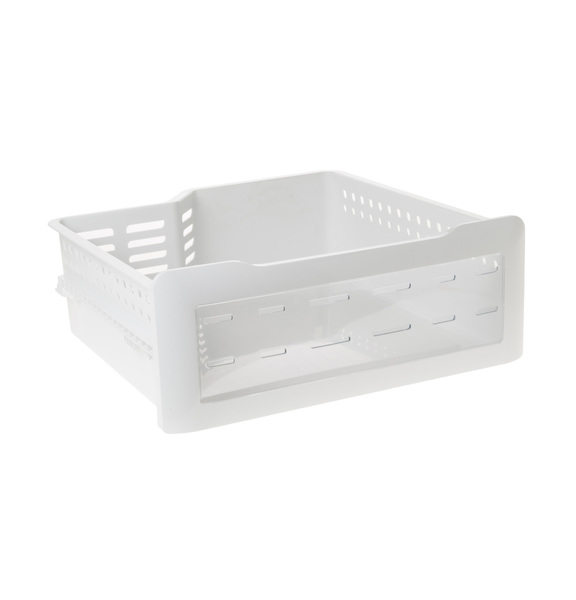

530	WR32X10899	Basket Upper Asm Fz Rh	Call for Availability
535	NLA ITEM	Basket Fz Im Asm	Call for Availability
536	WR02X13696	Baffle Fz Im	$21.50 Special Order
537	WR02X21129	Cover Fz Im	$12.70 Special Order
548	WR29X10111	Stripper Im	$38.60 Special Order
549	WR30X25485	Cup Fill Fz Im	$10.50 Special Order
550	WR30X28682	Ice Maker Asm Fz	$137.00  In-Stock Retail: $133.61
556	WR72X10425	Slide Holder Fz Rh	Call for Availability
557	WR72X10426	Slide Holder Fz Lh	Call for Availability
578	WR01X11012	Scr 8-18 Ab Hxw 9/16 S	$10.50 Special Order
580	WR01X11013	Scr 10-18 Flt20 3/4 S	$10.50 Special Order
581	WR02X13632	Striker Light Switch	$10.50 Special Order
616	WR01X11033	Spring Feeler Arm	$15.60 Special Order
619	WR29X10110	Arm Feeler Im	$37.80 Special Order
961	WR17X13230	Plate Mounting Fz Im	$40.70 Special Order
