6 - Freezer Shelves   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
500	WR21X10249	Basket Bottom Asm	$187.20 Special Order
501	WR02X13629	Gear Lwr Drw Rh	$13.10  In-Stock Retail: $12.71
502	WR02X13630	Gear Lwr Drw Lh	$10.50  In-Stock Retail: $10.22
503	WR02X13631	Connnector Gear Pinion	$10.50  In-Stock Retail: $10.22
504	WR02X13670	Crossbar Pinion	$19.90 Special Order
505	WR01X11023	Pin Cross Bar	$10.50 Special Order
507	WR01X11036	Screw Set Door Fz	$10.50 Special Order
509	WR02X13686	Wheel Slide Asm	$10.50 Special Order
512	WR21X10249	Divider Bottom Basket Fz	$187.20 Special Order
513	WR21X10248	Basket Bottom Fz	$112.90 Special Order
514	WR02X13674	Support Slide Fz	$10.50  In-Stock Retail: $10.22
515	WR17X13085	Support Btm Fz Divider	$13.80 Special Order
516	WR02X13667	Stopper Fz Divider	$10.50 Special Order
517	WR01X11050	Fastener Push	$10.50 Special Order
518	WR17X13238	Bracket Slide Fz Rh	$45.80 Special Order
	WR17X13144	Slide Bracket Asm Rh	$71.10 Special Order
519	WR17X13145	Bracket Slide Fz Lh	$110.90 Special Order
	WR17X13145	Slide Bracket Asm Lh	$110.90 Special Order
520	WR17X13077	Bracket Slide Rh	$454.70 Special Order
521	WR17X13170	Slide Upper Basket	$42.80 Special Order
522	WR01X11022	Scr 8-18 B Rnt20 1/4 S	$10.50 Special Order
524	WR17X13079	Bracket Slide Lh	$146.00 Special Order
526	WR17X13232	Support Fz Divider	$32.30 Special Order
527	WR72X10427	Slide Lower Fz Rh	$84.30 Special Order
528	WR72X10428	Slide Lower Fz Lh	$78.90 Special Order

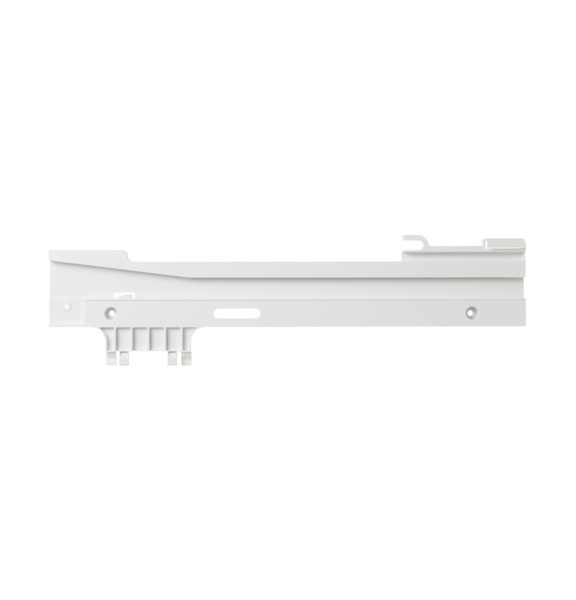

529	WR17X13101	Glide Support Lh	Call for Availability
530	NLA ITEM	Basket Upper Asm Rh	Call for Availability
535	NLA ITEM	Bucket Fz Im Asm   (Replaces: WR30X10168)	Call for Availability
536	WR02X13696	Baffle Fz Im	$21.50 Special Order
537	WR02X21129	Cover Fz Im	$12.70 Special Order
548	WR29X10111	Stripper Im	$38.60 Special Order
549	WR30X25485	Cup Fill Fz Im	$10.50 Special Order
550	WR30X28682	Ice Maker Asm Fz	$137.00  In-Stock Retail: $133.61

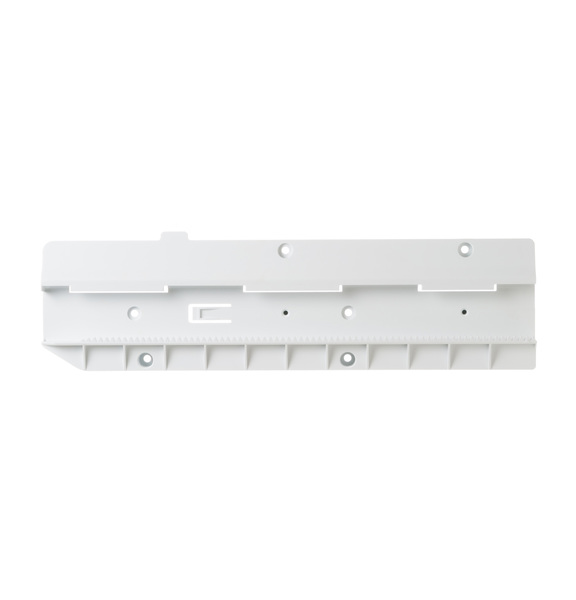

556	WR72X10425	Slide Holder Fz Rh	Call for Availability

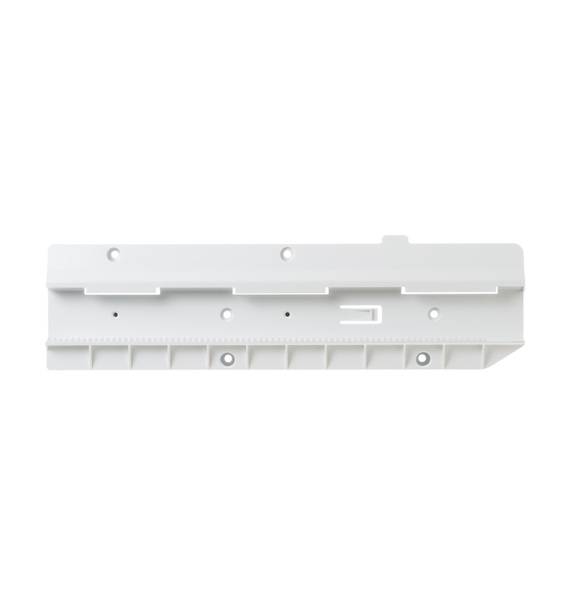

557	WR72X10426	Slide Holder Fz Lh	Call for Availability
570	WR01X10626	Scr 8-18 Hxw 1 1/4s	$10.50 Special Order
578	WR01X11012	Scr 8-18 Ab Hxw 9/16 S	$10.50 Special Order
580	WR01X11013	Scr 10-18 Flt20 3/4 S	$10.50 Special Order
581	WR02X13632	Striker Light Switch	$10.50 Special Order
616	WR01X11033	Spring Feeler Arm	$15.60 Special Order
619	WR29X10110	Arm Feeler Im	$37.80 Special Order

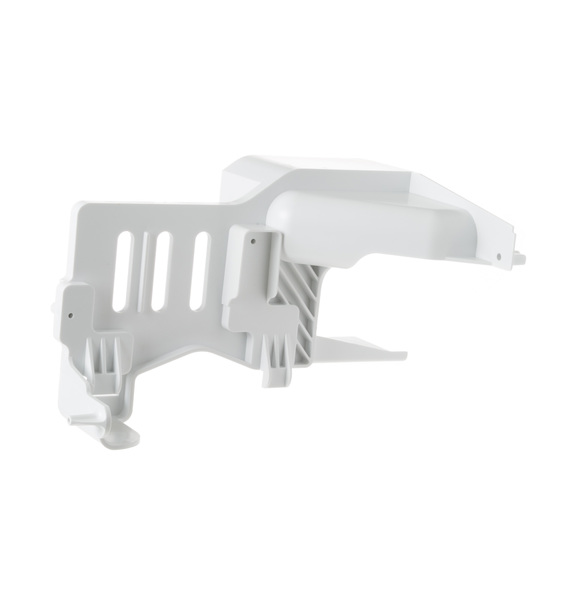

961	WR17X13100	Plate Mtg Fz Im	$90.00 Special Order
