GE GFE29HSDASS Parts List

Popular Searches: (Click to search)    aasm  asm  condenser  def  defrost  fan  filt  heater  icon  led  motor  pcb  refrigeration  sensor  side  temperature  thermostat  valve  water  wr87x10211


Select a Diagram

10 - Case Parts

1 - Dispenser Door

2 - Machine Compartment

3 - Freezer Door

4 - Fresh Food Door - Rh

5 - Freezer Section

6 - Freezer Shelves

7 - Ice Maker & Dispenser

8 - Fresh Food Section

9 - Fresh Food Shelves

Select Diagram ... 10 - Case Parts 1 - Dispenser Door 2 - Machine Compartment 3 - Freezer Door 4 - Fresh Food Door - Rh 5 - Freezer Section 6 - Freezer Shelves 7 - Ice Maker & Dispenser 8 - Fresh Food Section 9 - Fresh Food Shelves

1 - Dispenser Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
50	WR02X13769	Harness & Fill Tube Asm	Call for Availability
78	WR01X11052	Spring Hinge Mullion	$10.50 Special Order
79	WR01X11053	Sleeve Spring Mullion	$10.50 Special Order
80	WR02X13739	Hinge Cap	$10.50 Special Order
89	WR01X11044	Scr 10-32 B Rns .353 S	$10.50 Special Order
90	WR23X10755	Harness Led Jumper	$10.50 Special Order
95	WR02X13701	Tube Pex Lh Door	Call for Availability
100	WR55X11155	Cover Led Fz Asm	Call for Availability
102	WR17X13200	Display Asm	$178.30 Special Order
104	WR01X11027	Spring	Call for Availability
105	WR17X13060	Cover Paddle Asm Ss	$39.20 Special Order
107	WR01X11029	Scr 8-18 Flp 1/2 S	$10.50 Special Order
109	WR01X11064	Clip Phgl	$10.50 Special Order
110	WR17X13241	Duct Door Asm (Replaces: WR17X13057)	$20.40 Special Order
111	WR01X11017	Spring Duct Door	$10.50 Special Order
112	WR60X10344	Motor Duct Door	$54.50 Special Order
113	WR17X30495	Funnel Ice	$16.00 Special Order
114	WR01X11007	Fastener Door Handle	$10.50  In-Stock Retail: $10.22
115	WR01X11014	Set Screw	$10.50  In-Stock Retail: $10.22
116	WR71X11051	Bin Door Ice Btm Asm	Call for Availability
117	WR71X11045	Bin Ice Door Top Lh	$39.20 Special Order
118	WR71X11046	Bin Ice Door Mid Lh	Call for Availability
131	WR17X13202	Pcb Cover Asm	Call for Availability
	WR17X13204	Pcb Cover Asm Bk	Call for Availability
132	WR14X10367	Collar Gasket	$10.50 Special Order
133	WR02X25031	Door Disp Foam Asm Ff Lh	Call for Availability
134	WR14X10364	Port Gasket	$24.30 Special Order
135	WR14X10366	Gasket Ff	$126.40 Special Order
136	NLA ITEM	Arc Handle Asm Ff	Call for Availability
139	WR11X23034	Closure Door Asm Lh (Replaces: WR11X10034)	$50.00  In-Stock Retail: $48.70
143	WR02X13689	Lever Tray Lock	Call for Availability
146	WR02X13655	Shield Led Light	$35.30 Special Order
149	WR01X10196	Screw 8-18 Hi/lo 5/8	$10.50  In-Stock Retail: $10.22
151	WR01X11028	Scr 8-18 Flp 1/2 S	$10.50 Special Order
154	WR17X13108	Tray Recess Asm Gy	Call for Availability
155	WR01X11035	Spring Tray Latch	$10.00 Special Order
160	WR49X10322	Auger Motor Asm (Replaces: WR60X10345)	$266.10 Special Order

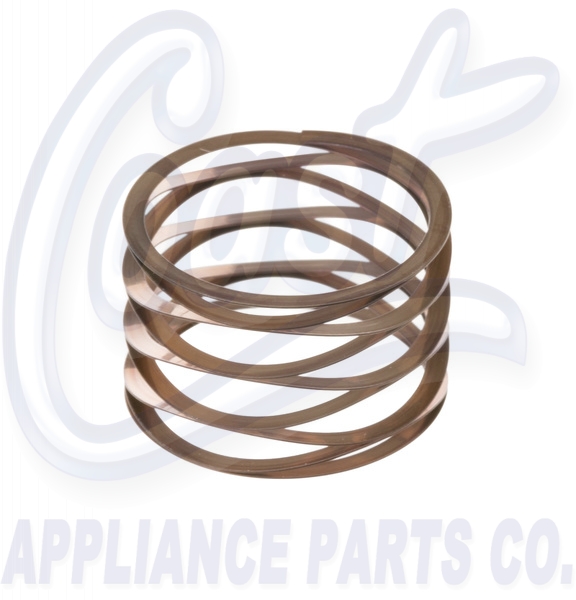

161	WR02X13645	Spring Clutch Am	$10.50 Special Order
162	WR49X10322	Guard Spring Am	$266.10 Special Order
163	WR02X13647	Clutch Coupling Am	$17.80 Special Order
164	WR02X13648	E Clip	Call for Availability
166	WR17X13240	Mullion Articula. Asm Wh	$92.30 Special Order
167	WR13X10984	Hinge Center Mullion	$10.50 Special Order
168	WR13X10985	Hinge Mullion	$10.50 Special Order
174	WR02X13737	Connector 90 Deg 5/16	$14.80 Special Order
176	WR02X13740	Coupler 1/4 Y	$18.50 Special Order
193	WR55X11144	Pcb Asm Led Icon Ui	$163.80 Special Order
195	WR55X44126	Pcb Asm Door Control   (Replaces: WR55X20838 WR55X11186)	$184.50  In-Stock Retail: $180.00
237	WR01X11032	Scr 10-24 Ab Rnt 20 5/8	$10.50 Special Order
238	WR02X13634	Stop Door Rh/lh Asm	$17.90 Special Order
801	WD02X10129	6-19 X 1/4 Torx Pan Head	$10.50 Special Order
999	31-51835	Pm Mini Wiring Manual	Call for Availability
	49-60669-1	Pm Quick Use & Care	Call for Availability
	49-60683	Pm Guide Owners Web En	Call for Availability
	WR97X10138	Pewter Paint Pen .3oz	Call for Availability
	WR97X10139	Dorian Grey Slate Paint	$50.40 Special Order
	49-60670	Pm Guide Owners Web Only	Call for Availability
	31-51839	Pm Mini Wiring Manual	Call for Availability
	31-45462-1	Pm Quick Install Guide	Call for Availability
	31-45495	Pm Quick Install En	Call for Availability
