Whirlpool 5VWT59SFYW00 Parts List

Popular Searches: (Click to search)    access  air  black  customer  filter  grease  grey  hand  hinge  material  nameplate  plastic  rail  silicone  thermistor  touch  track  valve  washer  white


Select a Diagram

01 - Cabinet Parts

02 - Liner Parts

03 - Shelf Parts

04 - Freezer Door Parts

05 - Refrigerator Door

06 - Unit Parts

07 - Optional Parts

Select Diagram ... 01 - Cabinet Parts 02 - Liner Parts 03 - Shelf Parts 04 - Freezer Door Parts 05 - Refrigerator Door 06 - Unit Parts 07 - Optional Parts

01 - Cabinet Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	677969	Do-it-yourself Repair Manuals	$24.20 Special Order
	W10469940	Service & Wiring Sheet	Call for Availability
	W10461975	Use & Care Guide	Call for Availability
2	WPW10300065	Hinge (top)	$8.20 Special Order
3	WPW10359255	Roller Assembly, Front Right Side   (Replaces: W10359255)	$57.00 Special Order
	WPW10359256	Roller Assembly, Front Left Side	$49.10  In-Stock Retail: $47.86
4	W10425027	Cover, Unit	$35.40 Special Order
5	WPW10339257	Endcap, Grille (white)	$50.10 Special Order
	WPW10353932	Endcap, Grille (grey)	$50.10 Special Order
6	WPW10141622	Brake, Roller   (Replaces: W10141622)	$4.50  In-Stock Retail: $4.33
7	3400524	Bolt	$7.80 Special Order
8	W10331226	Drum, Toe Grille	$26.90 Special Order
9	WP489427	Screw	$4.50  In-Stock Retail: $4.33
10	489348	Clamp, Tube	$5.40 Special Order
11	WP489497	Screw   (Replaces: 489497)	$6.30  In-Stock Retail: $6.14
12	WP2254618	Hinge, Center (Replaces: 2254618)	$51.10  In-Stock Retail: $49.77
13	WP2183852	Shim, Hinge Center	$6.20 Special Order
14	WP488729	Screw	$4.50  In-Stock Retail: $4.33
15	WP2254473	Hinge, Bottom (Replaces: 2254473)	$4.50  In-Stock Retail: $4.33
16	N/P	Fitting, Water Tube (not Serviced)	Call for Availability
17	WPW10520307	Hole Plug (grey)	$4.50 Special Order
	WP2151652	Hole Plug (white)	$13.10 Special Order
18	W10851579	Corner Filler (grey)	$4.50  In-Stock Retail: $4.33
	WPW10283959	Corner Filler (white)   (Replaces: W10283959)	$4.50 Special Order
19	WPW10300127	Grille (white)	$91.40 Special Order
	WPW10353935	Grille (grey)	$92.30 Special Order
20	WP489467	Washer, Plastic   (Replaces: 489341)	$6.40  In-Stock Retail: $6.18
21	WP487576	Washer, Plastic   (Replaces: 487576)	$6.40  In-Stock Retail: $6.16
22	W10331560A	Cover, Hinge (white)	$9.00 Special Order

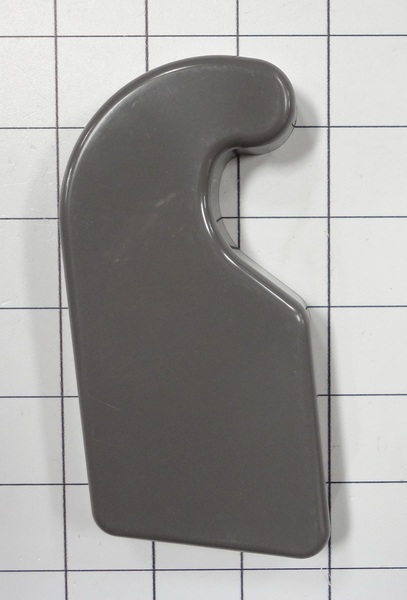

	W10353950A	Cover, Hinge (grey)	$16.20 Special Order
	W10353947A	Cover, Hinge (grey)	$9.50 Special Order
	W10331654A	Cover, Hinge (white) (Replaces: W10331654)	$9.00 Special Order
23	N/P	Rail Center (not Serviced)	Call for Availability
24	N/P	Cabinet (not A Serviceable Part)	Call for Availability
