Frigidaire EI27BS16JB6 Parts List

Popular Searches: (Click to search)    air  base  blade  condenser  cube  defrost  evaporator  fan  filter  ice  maker  motor  radius  valve  0  red  service  solenoid  triple  water


Select a Diagram

03 - Freezer Drawer, Baskets

05 - Fresh Food Doors

07 - Cabinet

09 - Shelves

11 - Cooling System

13 - Controls

15 - Ice Maker

01 - Cover

16 - Wiring Diagram

17 - Wiring Diagram

18 - Wiring Diagram

Select Diagram ... 03 - Freezer Drawer, Baskets 05 - Fresh Food Doors 07 - Cabinet 09 - Shelves 11 - Cooling System 13 - Controls 15 - Ice Maker 01 - Cover 16 - Wiring Diagram 17 - Wiring Diagram 18 - Wiring Diagram

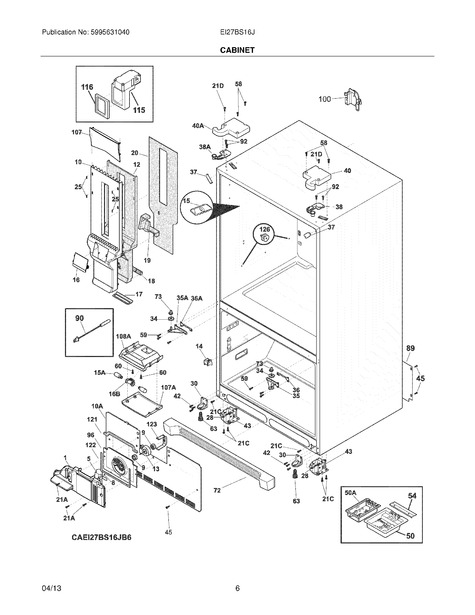

07 - Cabinet   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	242099401	Cover-fan	Call for Availability
F5	5308000010	Fan Blade,red ,evaporator Fan	Call for Availability
8	215474201	Washer,``slinger`` ,nylon ,evap Fan Shaft	Call for Availability
9	241518301	Bushing,motor Mounting	Call for Availability
10	242058504	Cover-air Duct	Call for Availability
10A	242084102	Cover-evap Coil,lower	Call for Availability
F10A	241860109	Gasket-coil Cover	Call for Availability
	241860110	Gasket-coil Cover	Call for Availability
12	242073901	Foam-air Supply	Call for Availability
F13	809069220	Motor,evaporator Fan   (Replaces: 241509402)	Call for Availability
F14	240505801	Switch,light/lamp	Call for Availability
F15	241891104	Light-led	Call for Availability
F15A	5304517886	Light Bulb (Replaces: 297114000 241552807)	Call for Availability
16	241860502	Cover-damper	Call for Availability
F16B	241510802	Harness-wiring,frz Light	Call for Availability
	241622802	Socket-light,frz Light	Call for Availability
17	241928201	Gasket-air Duct	Call for Availability
18	241928101	Duct-air	Call for Availability
19	241871901	Support-eps Damper	Call for Availability
20	241922902	Cover-air Duct,rear	Call for Availability
21A	241953901	Screw,no.8-18	Call for Availability
21C	218252201	Screw,no.8 Truss Hd ,10-32ca X 0.500	Call for Availability
21D	242025601	Screw,hex Head ,no.10-32 X 3/8	Call for Availability
25	241949502	Clip,air Vent	Call for Availability
28	240335006	Bolt-roller Adj,hex Washer Head ,1/4-20 X 4.020,(2) ,special (Replaces: 240335502)	Call for Availability
30	241778701	Bracket-anti Tip	Call for Availability
34	241868301	Washer,hinge ,nylon ,(2)	Call for Availability
35	241763005	Hinge-lower,zinc ,rh	Call for Availability
35A	241763006	Hinge-lower,zinc ,lh	Call for Availability
36	241868201	Spacer,door ,lower Rh	Call for Availability
36A	241868202	Spacer,door ,lower Lh	Call for Availability
37	240337610	Trim-cabinet Corner,black ,(2)	Call for Availability
38	241761301	Bracket-upper Hinge,rh	Call for Availability
38A	241761302	Bracket-upper Hinge,lh	Call for Availability
40	242099801	Cover-upper Hinge,black	Call for Availability
40A	242099804	Cover-upper Hinge,black ,lh	Call for Availability
42	240578902	Screw,hex Head ,1/4-20 X 5/8	Call for Availability
43	240335006	Roller Assy,front ,(2)	Call for Availability
45	241500303	Screw,hex Washer Head ,8-18ab X 1/2	Call for Availability
50	241996320	Board-main Power	Call for Availability
F50A	241891607	Board-led Power (Replaces: 241891604)	Call for Availability
	241852501	Clip,wiring Harness	Call for Availability
54	241532401	Channel	Call for Availability
58	241853202	Screw	Call for Availability
59	240442706	Screw-no.10-32 X 3/4,zinc	Call for Availability
60	218362501	Screw,hex Washer Head ,8-18ab X 1.250 ,spacer,(2)	Call for Availability
63	216396900	Screw,leveling Foot ,plastic ,adjustable	Call for Availability
72	242054802	Grille/kickplate,black	Call for Availability
73	242075701	Cam-lower Hinge	Call for Availability
89	241733905	Cover-access,w/label	Call for Availability
90	240597220	Sensor,(2)   (Replaces: 240597203)	Call for Availability
92	241710601	Screw,hex Washer Hd ,1/4 X 7/8 ,hinge Mtg	Call for Availability
96	241860601	Shroud-evap Fan Mtg	Call for Availability
100	242157601	Cover,tubing ,eps Block	Call for Availability
107	241963101	Duct-air,top	Call for Availability
F107	241971601	Shield-light,frzr	Call for Availability
F108	241971801	Cover-wiring,freezer Light	Call for Availability
115	5303918899	Damper,motorized   (Replaces: 241518501)	Call for Availability
116	241518601	Seal-damper,foam	Call for Availability
121	241860103	Gasket-evap,upper	Call for Availability
122	241860102	Gasket-evap,bottom	Call for Availability
123	242135301	Clip,evap Fan Motor ,evap Fan Motor	Call for Availability
126	242081301	Screw-shoulder	Call for Availability
FNI	242104901	Harness-wiring	Call for Availability
	242045501	Harness-wiring	Call for Availability
NI	241860111	Gasket-evap,bottom	Call for Availability
	241953904	Screw,no.8-18	Call for Availability
	241859801	Cover-eps,damper	Call for Availability
	242118001	Shield,wiring Cover ,freezer	Call for Availability
	240494001	Plug,button ,cab Liner Holes   (Replaces: 240479601)	Call for Availability
	241969001	Cap,screw	Call for Availability
	5303918416	Thermistor Kit,t-3 Suction Lin ,icemaker	Call for Availability
	5305510271	Paint,touch-up ,black   (Replaces: 5303321321)	Call for Availability
	241860112	Gasket-evap,upper	Call for Availability
	242004802	Foam Strip	Call for Availability
