Whirlpool GI5FVAXYY00 Parts List

Popular Searches: (Click to search)    assembly  board  brush  can  control  customer  drain  drier  enamel  filter  icemaker  kit  material  slide  spray  touch  tube  valve  water  white


Select a Diagram

01 - Cabinet Parts

02 - Refrigerator Liner Parts

03 - Shelf Parts

04 - Motor And Ice Container Parts

05 - Icemaker Parts

06 - Freezer Liner Parts

07 - Refrigerator Door Parts

08 - Dispenser Front Parts

09 - Freezer Door Parts

10 - Unit Parts

11 - Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Refrigerator Liner Parts 03 - Shelf Parts 04 - Motor And Ice Container Parts 05 - Icemaker Parts 06 - Freezer Liner Parts 07 - Refrigerator Door Parts 08 - Dispenser Front Parts 09 - Freezer Door Parts 10 - Unit Parts 11 - Optional Parts (not Included)

08 - Dispenser Front Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	N/P	Housing, Dispenser (not Serviced)	Call for Availability

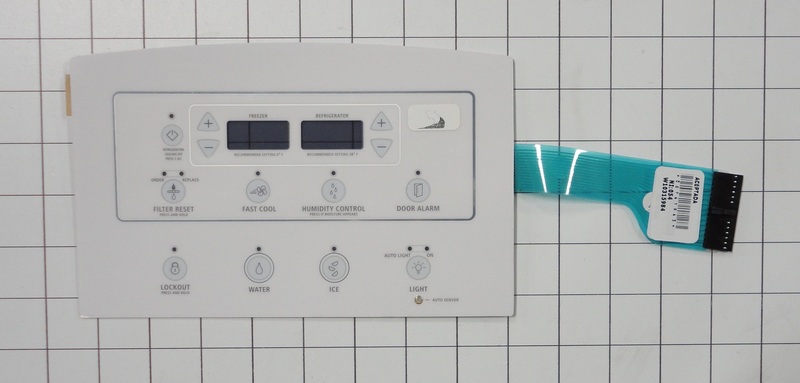

2	W10882877	Dispenser Keyboard (white)	$338.90 Special Order

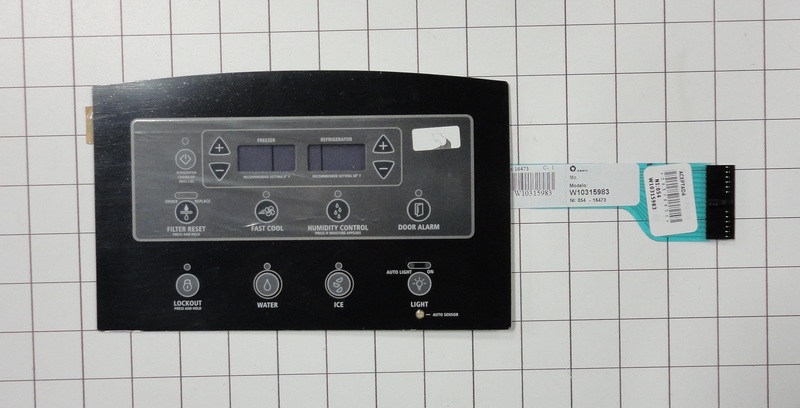

	W10860143	Dispenser Keyboard (black)	$182.00 Special Order
	W10740218	Dispenser Keyboard (apollo Grey) (Replaces: W10315980)	$169.50  In-Stock Retail: $165.27
3	W10162500	Board, L.v.	$166.10 Special Order
4	W11676505	Sump, Dispenser (apollo Grey)	$8.80 Special Order

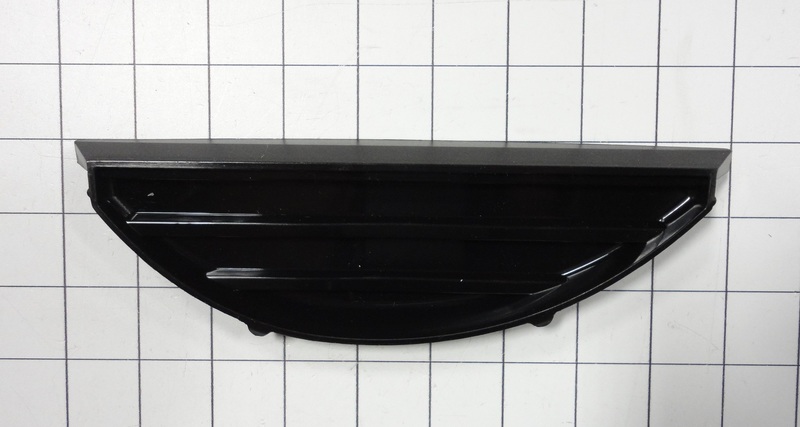

	W10168726	Sump, Dispenser (black)	$26.50 Special Order
	W10141657	Sump, Dispenser (white)	$27.70 Special Order
5	WP13005704B	Chute, Ext/yoke (includes Switch) (black)   (Replaces: 13005704B)	$166.80 Special Order
	WP13005704W	Chute, Ext/yoke (includes Switch) (white)	$167.40 Special Order
	WP13005706	Chute, Ext/yoke (includes Switch) (apollo Grey)	$167.20  In-Stock Retail: $163.07
6	67006425	Screw	$4.50  In-Stock Retail: $4.33
7	67006295	Ring, Target	$31.00 Special Order
8	WPW10310690	Facade, Dispenser (apollo Grey)	$118.60 Special Order
	W10163996	Facade, Dispenser (black)	$95.50 Special Order
	W10141655	Facade, Dispenser (white)	$95.50 Special Order
9	M0108106	Clamp, Tube	$39.40 Special Order
11	WPW10185234	Yoke/pad Assembly (apollo Grey)   (Replaces: W10185234)	$4.50 Special Order
	WPW10168729	Yoke/pad Assembly (black)   (Replaces: W10168729)	$7.50 Special Order
	W10146247	Yoke/pad Assembly (white)	Call for Availability
12	WP12565502	Spring   (Replaces: 12565502)	$4.50  In-Stock Retail: $4.33
