Frigidaire FPUI2188LR2 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    bin  bottom  capacitor  control  defrost  door  evaporator  fan  gasket  hinge  kit  magnetic  nylon  pan  refr  run  seal  thermostat  washer  white


Select a Diagram

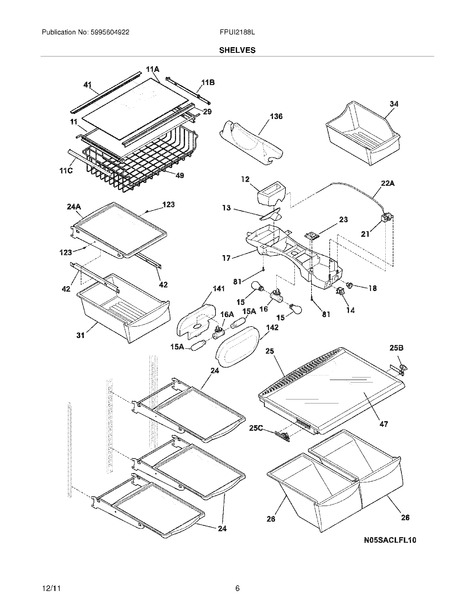

07 - Shelves   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
11 242087803 Frame-shelf,full Width $233.20
Special Order
11A 242087901 Glass-shelf,full Shelf $63.20
Special Order
11B 241848701 Cover,hanger Rh ,wire Basket $19.50
Special Order
11C 241848702 Cover,hanger Lh ,wire Basket $15.40
Special Order
12 240545901 240545901 Diffuser-air,top $50.80
Special Order
13 240362601 240362601 Diffuser-air,bottom $30.30
 In-Stock
Retail: $29.49
F14 241554901 241554901 Switch-light/lamp $51.30
 In-Stock
Retail: $49.99
F15 316538904 316538904 Light Bulb
(Replaces: 241555401)
$11.87
 In-Stock
Retail: $13.49
F15A 241552802 241552802 Light Bulb $28.70
 In-Stock
Retail: $27.99
F16 240364201 240364201 Socket-light/lamp,dual $70.30
Special Order
F16A 241593901 Harness-wiring $39.50
Special Order
241622802 241622802 Socket-light,frz Light $43.10
 In-Stock
Retail: $41.99
17 240368104 Control Box $86.00
Special Order
18 240360801 Knob-temp Control $31.80
 In-Stock
Retail: $30.99
F21 241537103 241537103 Control-temperature
(Replaces: 5304445058)
$101.50
 In-Stock
Retail: $101.49
22A 240468202 240468202 Tube,sensor Sleeve ,31 Inch ,plastic ,white $6.20
Special Order
F23 242011005 242011005 Control-defrost,adaptive Timer ,pc Board
(Replaces: 242011003)
Call for Availability
24 240350143 Shelf-``spill-safe``,cantilever ,sliding $130.20
Special Order
24A 240355261 Shelf-``spill-safe``,fixed $109.70
Special Order
25 242201805 Cover-crisper Pan   (Replaces: 240364790) $99.00
 In-Stock
Retail: $96.49
25B 241613501 241613501 Control-humidity,rh $8.80
 In-Stock
Retail: $8.49
25C 241613502 241613502 Control-humidity,lh $32.30
 In-Stock
Retail: $31.49
26 240343803 240343803 Pan-crisper,(2) $124.60
 In-Stock
Retail: $121.49
29 242088002 Trim-shelf,front Call for Availability
31 240530811 240530811 Pan-meat,w/o Graphics ,clear
(Replaces: 240530803)
$131.20
Special Order
34 240385201 240385201 Container,ice Bin $68.70
 In-Stock
Retail: $66.99
41 242111002 Trim-shelf,rear $23.60
Special Order
42 240365401 240365401 Track,meat Pan Hanger ,lh $42.10
Special Order
240356501 240356501 Track,meat Pan Hanger ,rh $41.00
 In-Stock
Retail: $39.99
47 240350609 240350609 Insert-pan Cover,glass $109.70
 In-Stock
Retail: $106.99
49 241833201 Basket-sliding,full Sliding ,wire ,frzr $109.80
Special Order
81 5304455650 Screw,hex Washer Head ,8-15a X 0.625 ,low Profile $10.30
 In-Stock
Retail: $9.99
123 215005101 Screw,hanger/rlr Mtg ,8-10 X 7/16 $10.80
Special Order
136 241657701 Dispenser-can,white $41.60
 In-Stock
Retail: $40.49
141 241562101 Shield-heat,mid Level $48.40
Special Order
142 241562202 241562202 Shield-light Mid Level Call for Availability
FNI 242081702 Wiring Harness,control Box $79.50
Special Order
NI 242028595 Energy Guide Call for Availability
5304455649 Screw,pan Hd ,6-20 X 0.438 $12.30
Special Order
218743613 Tape,aluminum ,3`` X 7`` $289.50
Special Order
