Whirlpool WGD4700YQ1 Parts List

Popular Searches: (Click to search) assembly belt coil door drive dryer fuse ignitor kit paint pressurized pulley repair roller spray support switch thermal type white

Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - W10336852 Burner Assembly

05 - Optional Parts (not Included)

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	W10096986	Use & Care Guide	Call for Availability
	W10185977	Wiring Diagram	Call for Availability
	W10115228	Installation, Instructions	Call for Availability
2	W10115487	Control Panel & Bracket Assembly	$178.00 Special Order
3	W10186074	Harness, Wiring	$159.10 Special Order
4	W11087440	Cap, End (l.h.) (Replaces: 8566035)	$39.30 Special Order
5	WP8312709	Clip, Console (Replaces: 8312709)	$11.80 In-Stock Retail: $11.43
6	W10103406	Panel, Rear Console	$73.20 Special Order

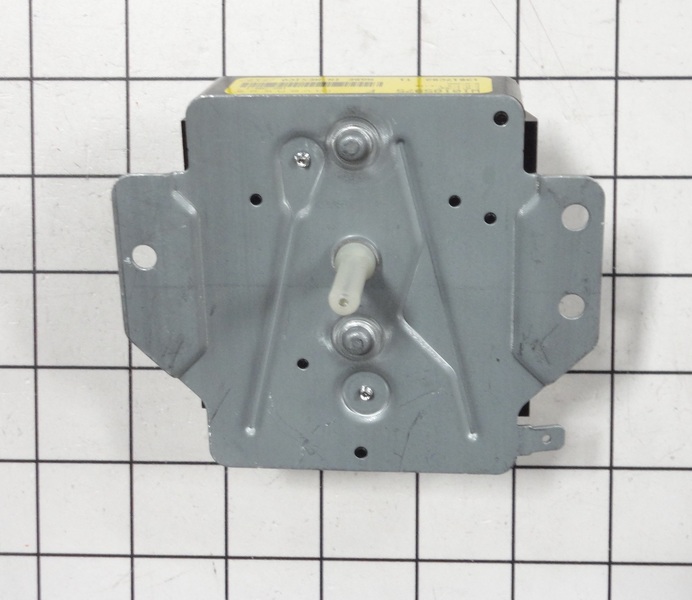

7	WPW10185975	Timer Assembly (60 Hz.) (Replaces: W10185975)	$169.50 In-Stock Retail: $165.35
8	W11087440	Cap, End (r.h.) (Replaces: 8566032)	$39.30 Special Order
9	WP693995	Screw, Hex Washer Head (Replaces: 693995)	$4.50 In-Stock Retail: $4.33
10	WPW10717210	Screen, Lint (Replaces: 8557857)	$41.70 In-Stock Retail: $40.66
11	WP8536939	Clip, Spring (Replaces: 8536939)	$4.50 In-Stock Retail: $4.33
12	W11693756	Screw, 8-18 X 5/16	$8.20 Special Order
13	W11693756	Screw, 8-18 X 5/8	$8.20 Special Order
14	W10850756	Screw, Grounding	$4.50 In-Stock Retail: $4.33
15	WP90767	Screw, 8-18 X 3/8	$4.50 In-Stock Retail: $4.33
16	WP8563663	Top	$177.40 Special Order
17	WP3977456	Switch, Push-to-start (Replaces: 3977456)	$21.60 In-Stock Retail: $20.98
18	W10034770	Knob, Control	$51.50 Special Order
19	WPW10034750	Timer Knob Assembly (Replaces: W10034750)	Call for Availability
