Whirlpool RGD4440VQ2 Parts List

Popular Searches: (Click to search) assembly belt coil door drive dryer fuse ignitor kit paint pressurized pulley repair roller spray support switch thermal type white

Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - W10336852 Burner Assembly

04 - Bulkhead Parts

05 - Optional Parts (not Included)

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	W10287575	Guide, Use & Care	Call for Availability
	W10185979	Wiring Diagram	Call for Availability
	W10115228	Installation Instructions	Call for Availability
2	WP693995	Screw, 8-18 X 3/8 (Replaces: 693995)	$4.50 In-Stock Retail: $4.33
3	279960	Cap, End (l.h.)	$48.30 Special Order
4	279960	Cap, End (r.h.)	$48.30 Special Order
5	WP357213	Nut, Push-in (Replaces: 357213)	$4.50 Special Order
6	W10103406	Panel, Rear Console	$73.20 Special Order
7	WPW10717210	Screen, Lint (Replaces: W10641634 8558463)	$41.70 In-Stock Retail: $40.66
8	WP8536939	Spring Clip Knob (Replaces: 8536939)	$4.50 In-Stock Retail: $4.33
9	W11693756	Screw, 8-18 X 5/8	$8.20 Special Order
10	WP388326	Screw, 8-18 X 1.25 (Replaces: 388326)	$4.50 In-Stock Retail: $4.33
11	WP8563985	Top (Replaces: 8557930)	Call for Availability
12	WP688805	Spring Clip, Knob (Replaces: 688805)	$4.50 In-Stock Retail: $4.33
13	3400859	Screw, 8-18 X .222	$8.20 Special Order
14	WP8538959	Knob, Push-to-start	$34.20 Special Order

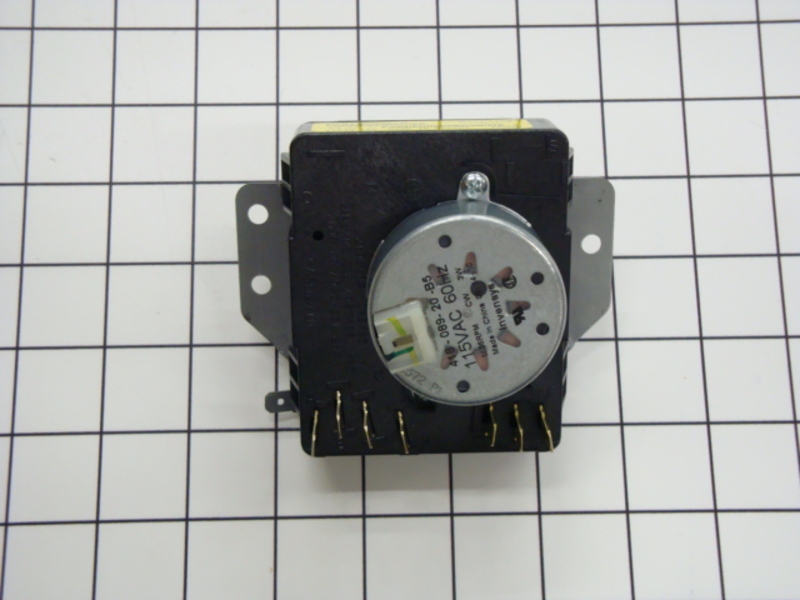

15	WPW10185971	Timer (Replaces: W10185971)	$186.50 In-Stock Retail: $181.89
16	W10186074	Harness, Wiring	$159.10 Special Order
17	WP90767	Screw, 8-18 X 3/8	$4.50 In-Stock Retail: $4.33
18	WP3977456	Switch, Push-to-start (Replaces: 3977456)	$21.60 In-Stock Retail: $20.98
19	WP8557455	Timer Knob (Replaces: 8538953)	$33.80 Special Order
20	8271418	Bracket, Control	Call for Availability
21	W10205688	Panel, Control	$141.70 Special Order
