Maytag JDB8000AWC0 Parts List

Popular Searches: (Click to search)    2oz  assembly  bracket  cable  door  drain  fill  hose  includes  latch  paint  pressurized  pump  spray  switch  touch  undercounter  valve  wheel  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel And Latch Parts

03 - Inner Door Parts

04 - Fill, Drain And Overfill Parts

05 - Tub And Frame Parts

06 - Pump, Washarm And Motor Parts

07 - Upper Wash And Rinse Parts

08 - Heater Parts

09 - Upper Rack And Track Parts

10 - Lower Rack Parts

11 - Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel And Latch Parts 03 - Inner Door Parts 04 - Fill, Drain And Overfill Parts 05 - Tub And Frame Parts 06 - Pump, Washarm And Motor Parts 07 - Upper Wash And Rinse Parts 08 - Heater Parts 09 - Upper Rack And Track Parts 10 - Lower Rack Parts 11 - Optional Parts (not Included)

09 - Upper Rack And Track Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10194864	Dishrack, Upper	$219.10 Special Order
2	W10418310	Mount, Wheel Fixed, 2-position	$22.70 Special Order
3	W10238406	Clip, No-flip	$6.60 Special Order

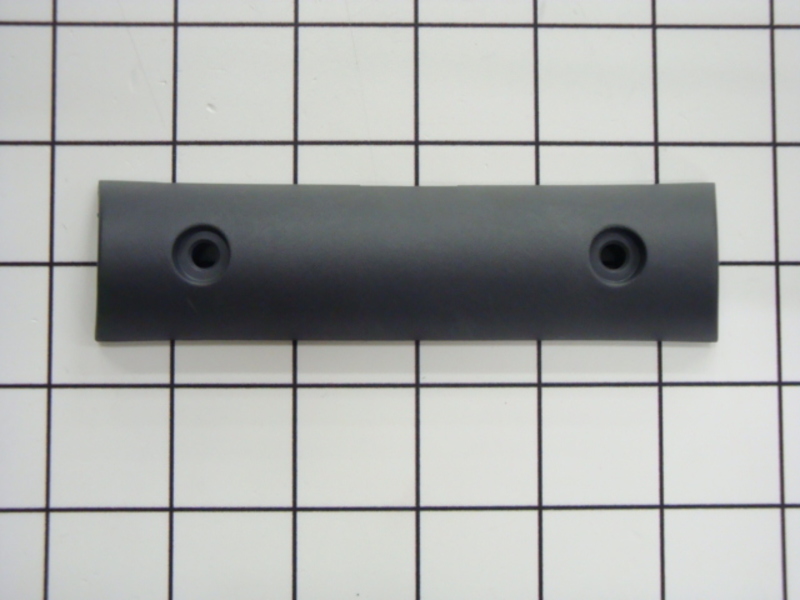

4	W10056298	Handle, Rear	$35.30 Special Order
5	WPW10267076	Clip, Dispenser Guard   (Replaces: W10267076)	$18.70  In-Stock Retail: $18.20
6	WPW10195623	Track, Assembly (Replaces: W10195623)	$54.50  In-Stock Retail: $53.15
7	W10587967	Handle, Front	$12.90 Special Order
8	WPW10195622	Stop, Track Non-removable   (Replaces: W10195622)	$5.00  In-Stock Retail: $4.80
